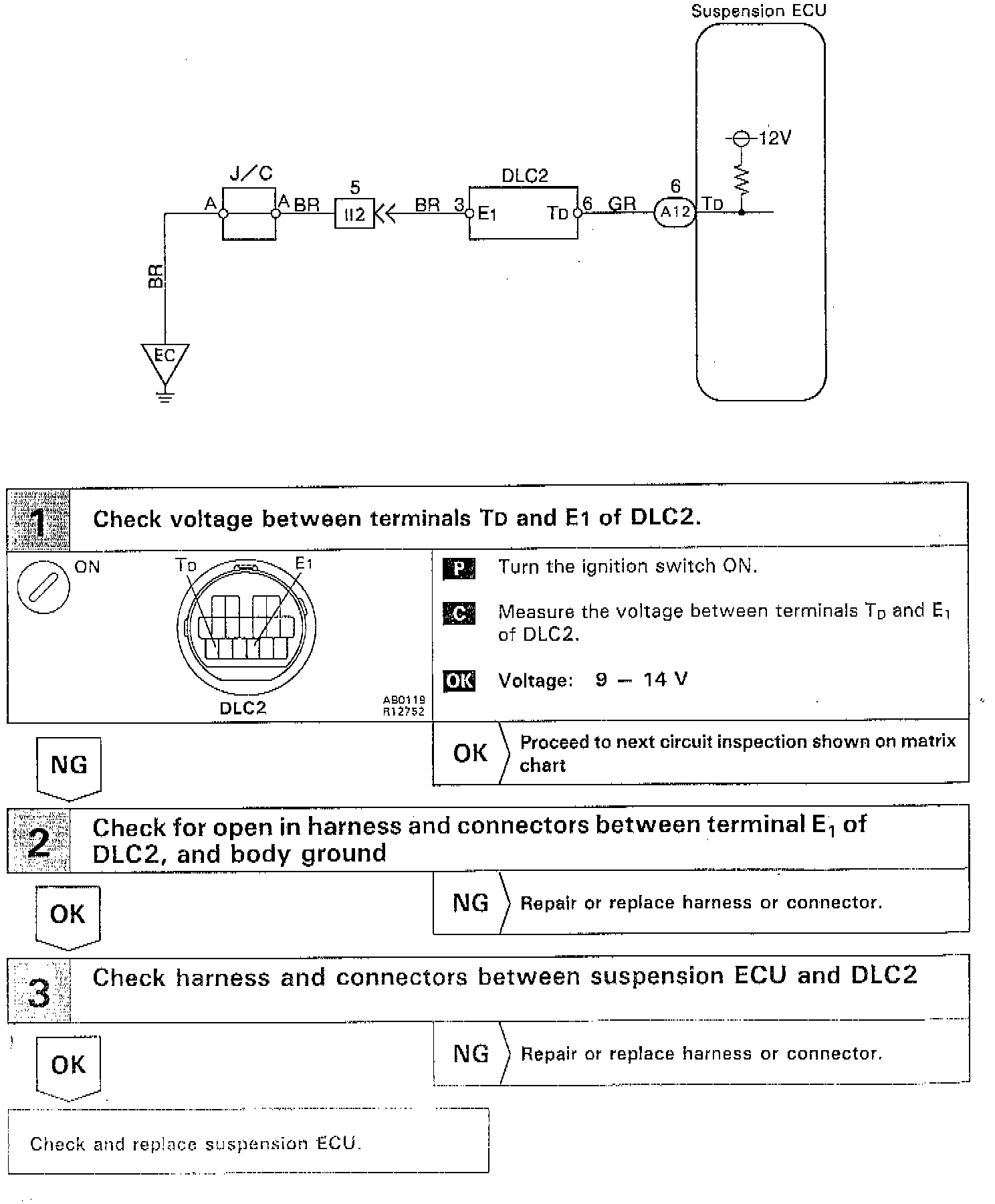

TD Terminal Circuit

CIRCUIT DESCRIPTION:
By connecting terminals Td and E1 of the DLC 2, the vehicle height control is not carried out.
