Indicator Light Check

1. Turn ignition switch ON.

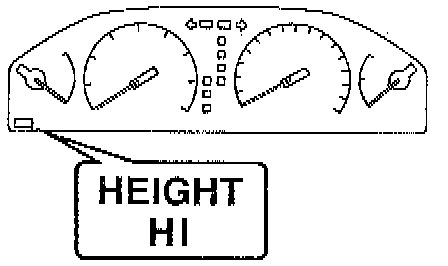

2. Check that height control indicator lights come on immediately .

HINT:
^ When the height control switch is pressed to the "HIGH" side, the height control indicator light continues to light up.
^ When the height control indicator light flashes at 1 second intervals, it indicates that the ECU stores the malfunction codes in memory.





3. If the following troubles occur in the indicator light check, proceed to the Height Control Switch Circuit.
^ Even thought the Height control SW is pushed to the NORM position, the height control indicator light remains on.
^ Even thought the Height control SW is pushed to the HIGH side, the height control indicator light does not light up.
