PPS Solenoid Valve Inspection

1. DISCONNECT PPS SOLENOID CONNECTOR

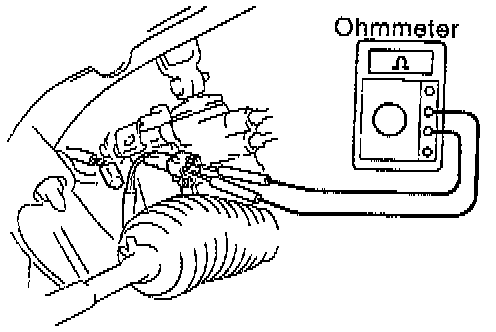

2. Measure resistance. Measure the resistance between SOL positive and SOL negative. Resistance is 6 - 11 ohms.





3. Check PPS solenoid operation.
a. Connect the battery positive terminal to the solenoid terminal SOL positive.
b. Connect the battery negative terminal to the solenoid terminal SOL negative.
c. Check that the solenoid makes a 'clicks' sound. If it is faulty, replace the pressure control valve with the solenoid valve.

NOTICE:
^ Do not apply voltage for more than 30 seconds to avoid burning out the solenoid.
^ If repeating this step, wait until the solenoid cools down enough that it can be touched by hand.

4. Connect PPS solenoid connector.
