Removal and Installation

REMOVAL
1. Remove the 8 bolts and 5 screws holding the engine under cover.
2. Remove the 3 RH rear engine under cover bolts.
3. Remove air cleaner inlet and battery clamp cover bolt.
4. Remove air cleaner assembly with air cleaner hose.
a. Disconnect the MAF meter connector.
b. Remove the 3 bolts.
5. w/ TRAC: Remove TRAC actuator.
6. Remove ABS actuator.





7. Remove drive belt. Loosen the drive belt tension by turning the drive belt tensioner. clockwise, and remove the drive belt.
8. Disconnect return hose.
9. Disconnect 2 vacuum hoses.
10. Remove pressure feed tube. Remove the union bolt and gasket.

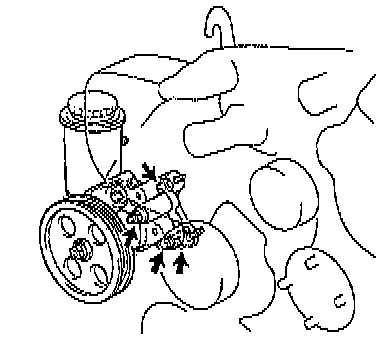

11. Remove PS vane pump assembly.
a. Remove the 3 bolts and nut.





b. Face the PS vane pump in the direction shown, then remove it.

INSTALLATION
1. Install PS vane pump assembly.





a. Temporarily install the 3 bolts and the nut.
b. Torque the bolts and nut on the vane pump assembly in the order shown. Torque:
Bolt 39 Nm (29 ft. lbs.)
Nut 43 Nm (32 ft. lbs.)

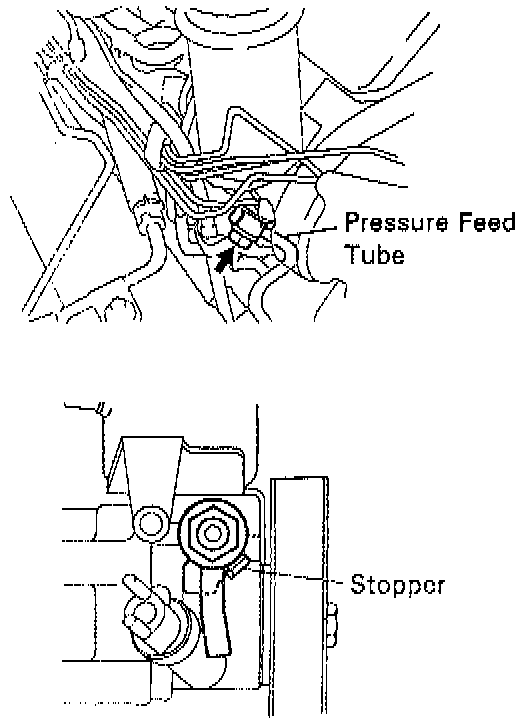

2. Install pressure feed tube. Torque the union bolt over a new gasket to 49 Nm (36 ft. lbs.).

HINT: Make sure the stopper of the pressure feed tube is touching the PS vane pump body as shown, then torque the bolt.





3. Install drive belt. Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.
4. Connect 2 vacuum hoses.
5. Connect return hose.
6. w/ TRAC: Install TRAC actuator.
7. Install ABS actuator.
8. Install air cleaner assembly with air cleaner hose.
a. Tighten the 3 bolts.
b. Connect the MAF meter connector.
9. Install air cleaner inlet and battery clamp cover and tighten the bolt.
10. Install RH rear engine under cover. Tighten the 3 bolts.
11. Install engine under cover. Tighten the 8 bolts and 5 screws.
12. Bleed power steering system.
