Instrument Panel Junction Block

INSTRUMENT PANEL JUNCTION BLOCK INSPECTION





1. INSPECT FUSE CIRCUIT
Remove the fuse from the junction block and inspect the connector on junction block side.

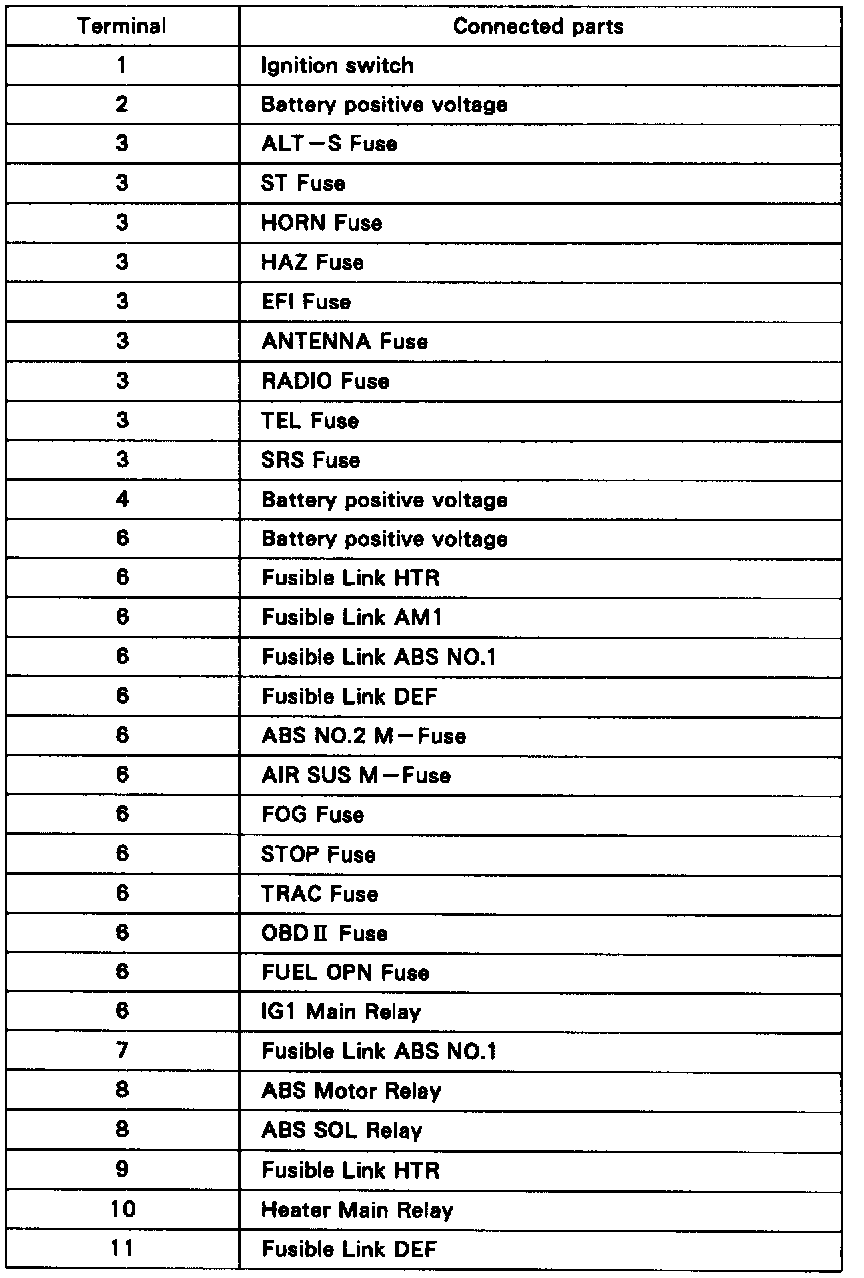

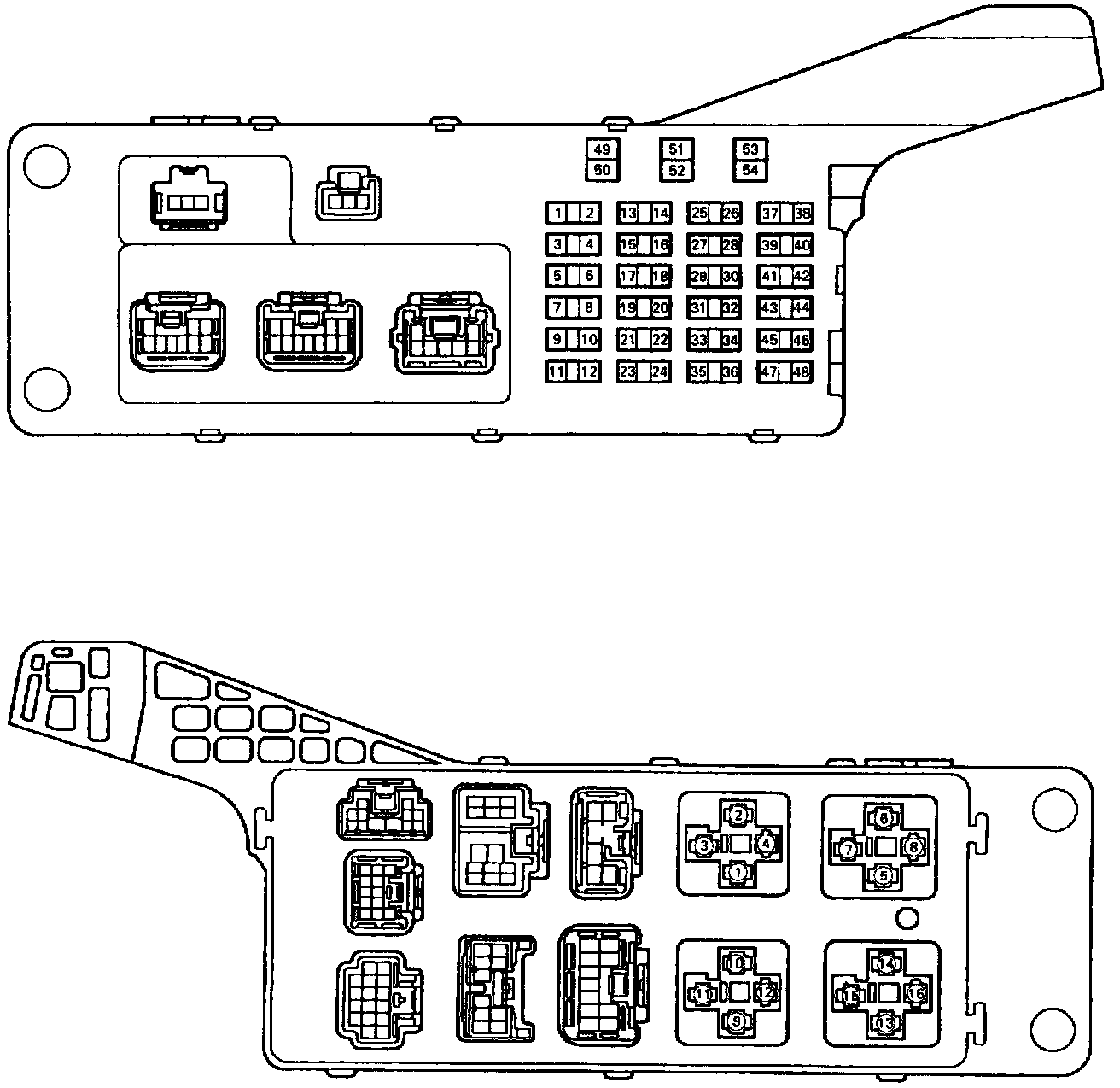

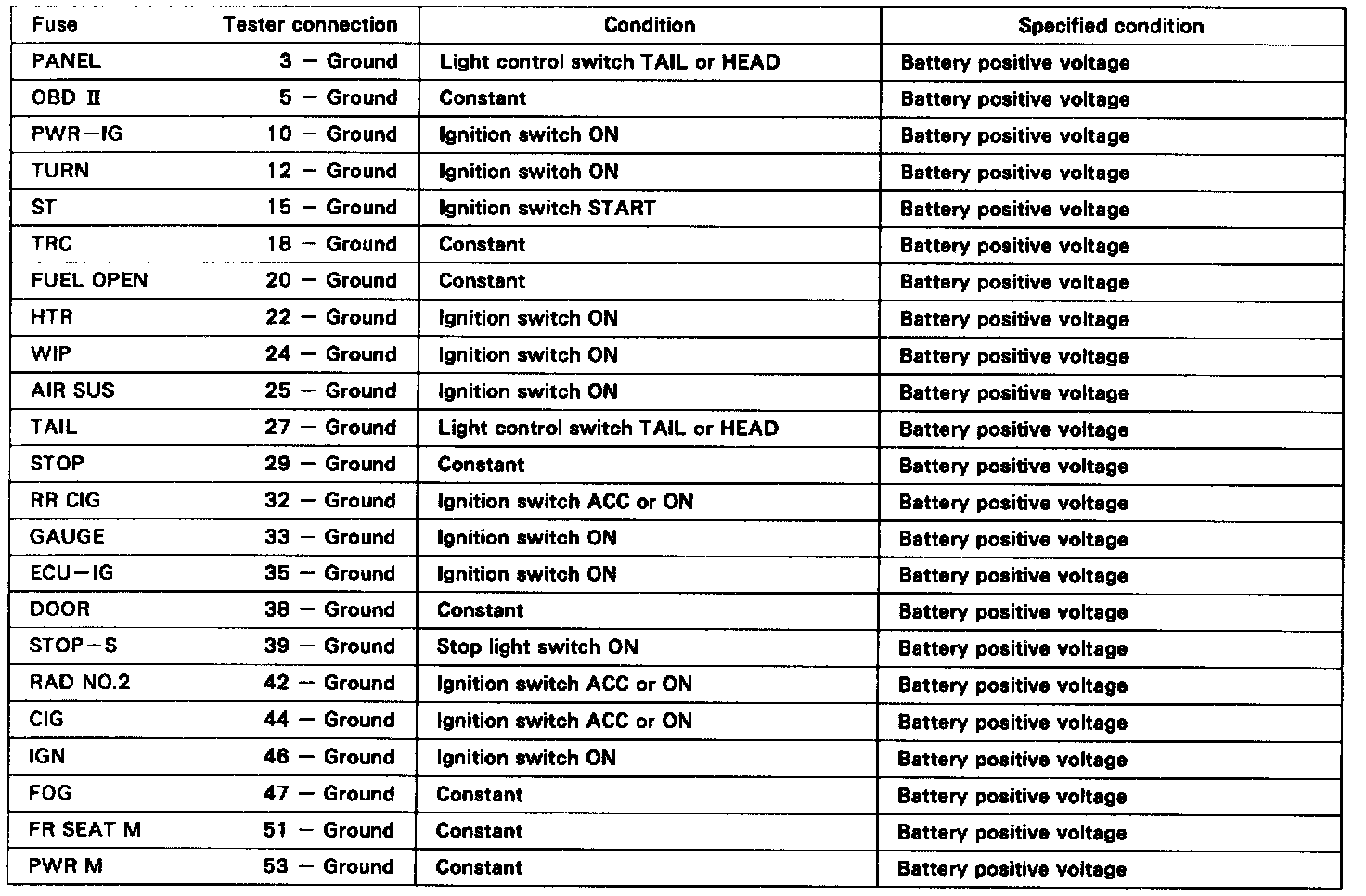

Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuit connected to other parts.








2. INSPECT RELAY CIRCUIT
Remove the relay from the junction block and inspect the connector on junction block side.

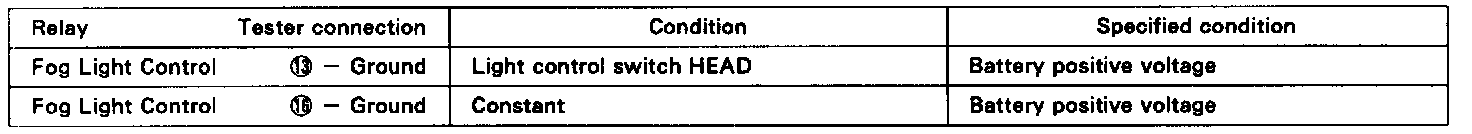

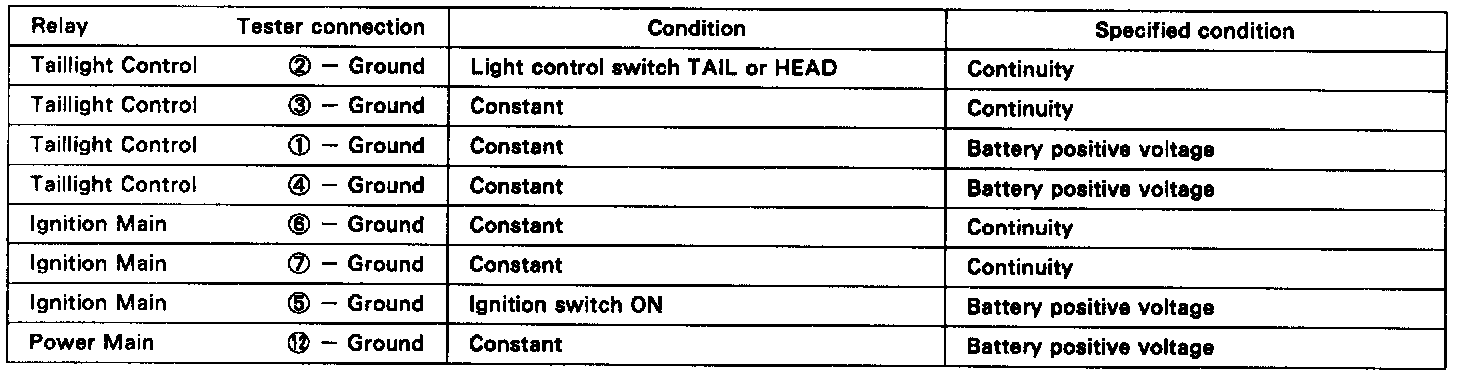

Connect numbers are shown in the illustration.
If the circuit is not as specified, inspect the circuits connected to other parts.











3. INSPECT FUSIBLE LINK CIRCUIT
Bolted type
a. Remove the battery.
b. Remove the fusible link set bolts.
c. Inspect the continuity between terminals and connected parts.

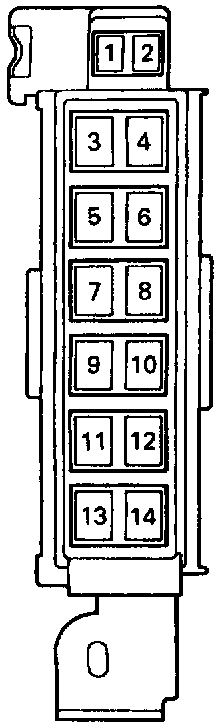

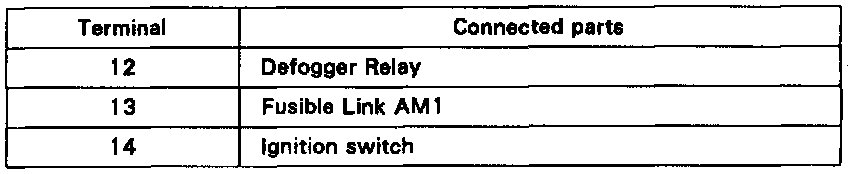

Connect numbers are shown in the illustration.
If circuit is not as specified, inspect wire harness between fusible link and connected parts.
