Headlamp Washer Switch: Testing and Inspection

HEADLIGHT CLEANER SWITCH INSPECTION

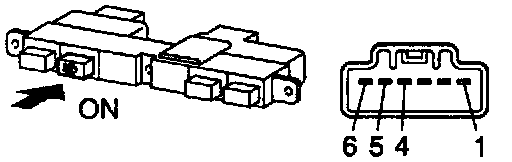

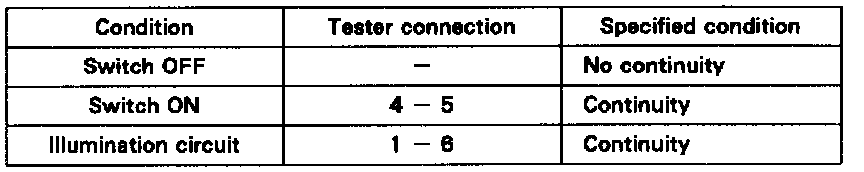

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified. replace the switch.

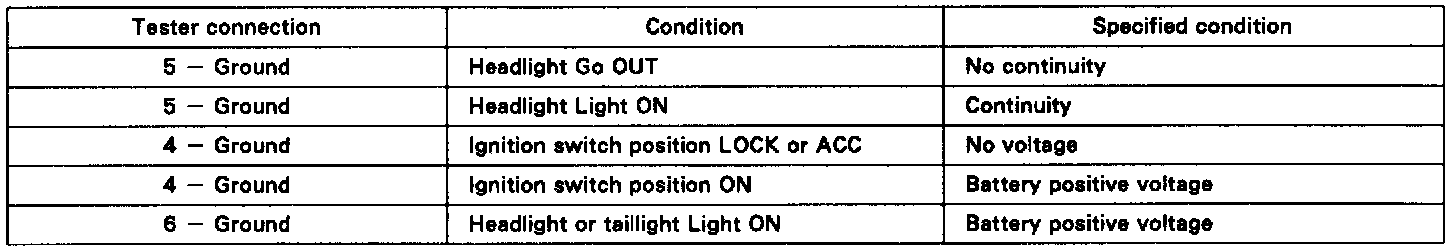

2. INSPECT SWITCH CIRCUIT
Disconnect the switch connector and inspect the connector on wire harness side. as shown.
If circuit is not as specified. inspect the circuits connected to other parts.
