Crankshaft Position Sensor: Service and Repair

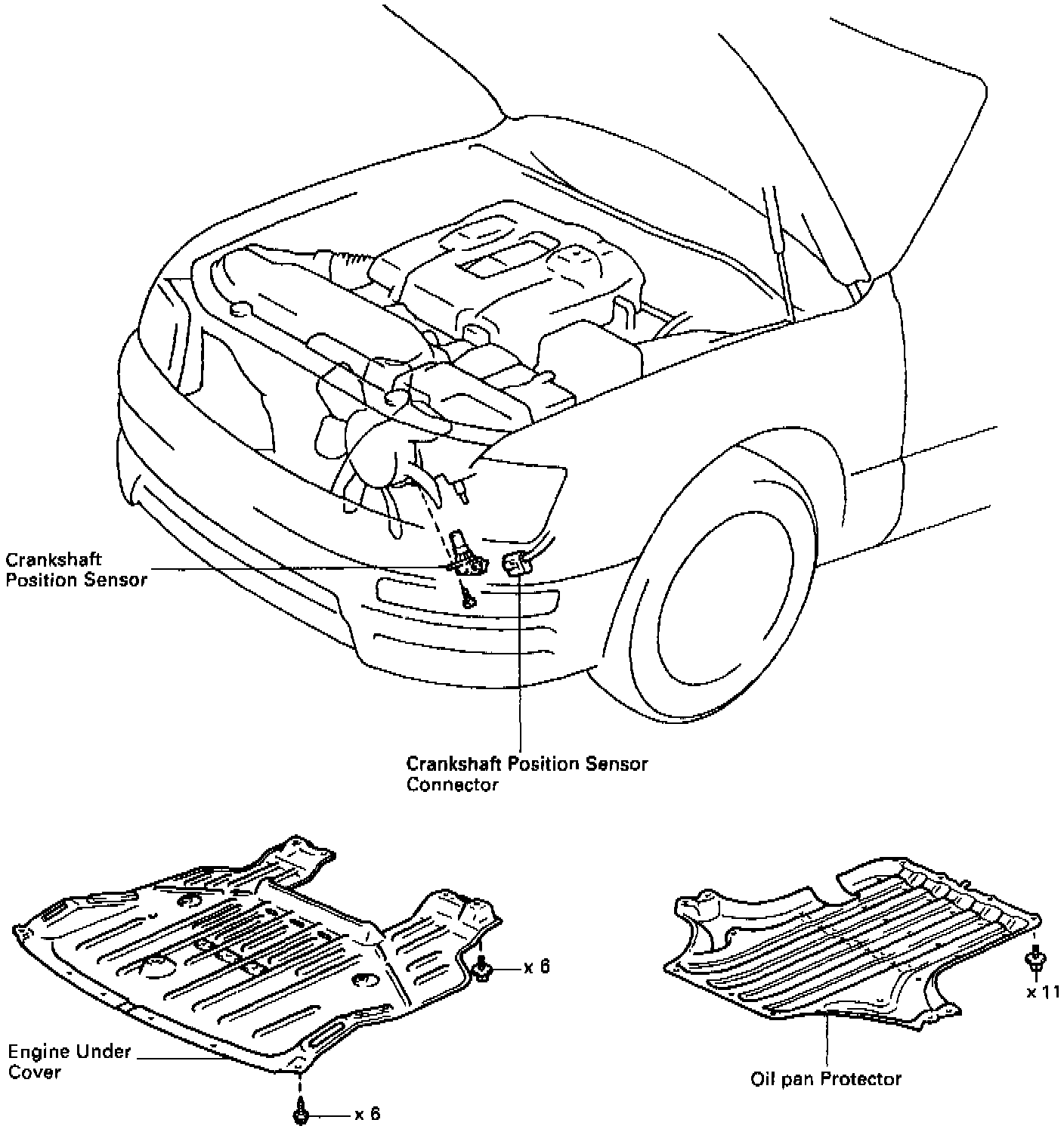

CRANKSHAFT POSITION SENSOR REMOVAL





1. REMOVE OIL PAN PROTECTOR
2. REMOVE ENGINE UNDER COVER
3. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR





4. REMOVE CRANKSHAFT POSITION SENSOR

Torque: 6.5 N.m (65 kgf.cm, 56 in.lbf)

CRANKSHAFT POSITION SENSOR INSTALLATION
Installation is in the reverse order to removal.
