Headlamp Switch: Service and Repair

LIGHT CONTROL SWITCH REMOVAL

Installation is in the reverse order of removal.

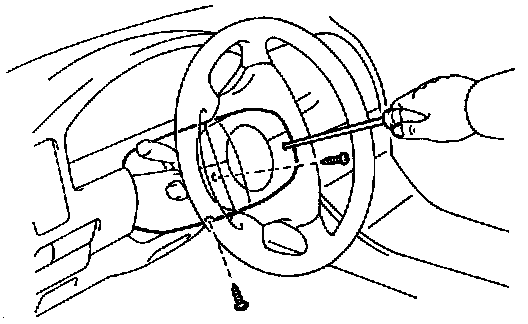

1. REMOVE COLUMN COVER
a. Remove the 3 screws.
b. Remove the column cover.

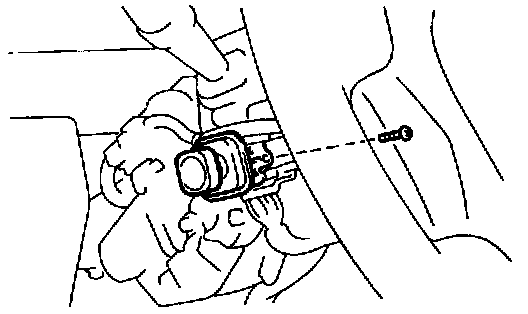

2. REMOVE POWER TILT AND TELESCOPIC SWITCH
a. Remove the screw.
b. Remove the power tilt and telescopic switch.

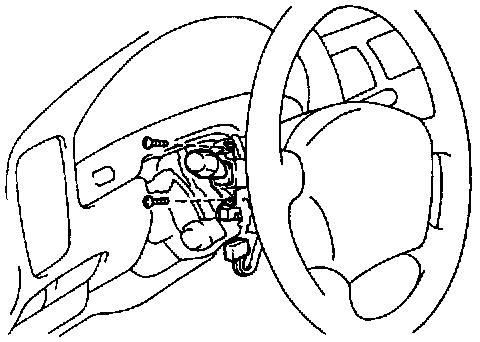

3. REMOVE LIGHT CONTROL SWITCH
a. Disconnect the light control switch connector.
b. Remove the 2 screws.
c. Remove the switch.
