Fuel Gauge Sender: Testing and Inspection
INSPECT SENDER GAUGE VOLTAGE

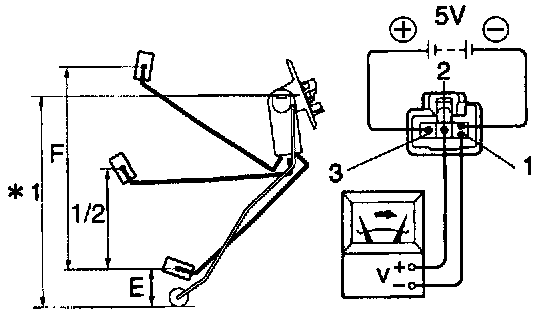

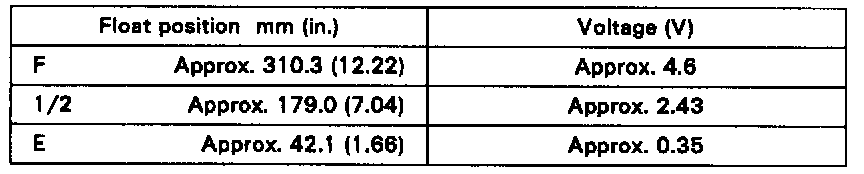

Measure the voltage between terminals 1 and 2 for each float position.
*1: Set value 270.7 mm (10.66 in.)
If resistance value is not as specified, replace the sender gauge.
INSPECT SENDER GAUGE VOLTAGE
Measure the voltage between terminals 1 and 2 for each float position.
*1: Set value 270.7 mm (10.66 in.)
If resistance value is not as specified, replace the sender gauge.
