Solar Sensor: Service and Repair

SOLAR SENSOR REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD





2. REMOVE SENSOR
a. Disconnect the connector.
b. Push out the solar sensor from the instrument panel safety pad.

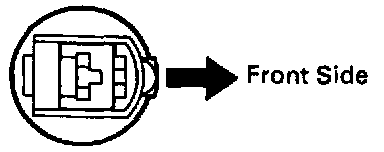

INSTALLATION HINT: Install the solar sensor. as shown in the illustration.
