Discharge Air Temperature Sensor / Switch: Service and Repair

DUCT SENSOR REMOVAL
1. REMOVE INSTRUMENT PANEL

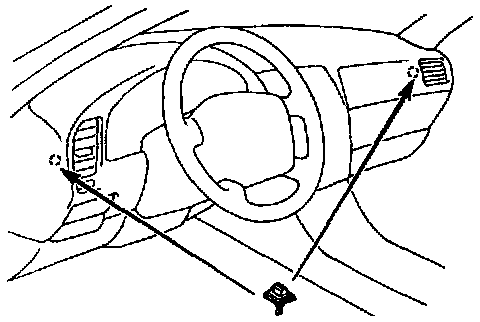

2. REMOVE SENSORS
a. Disconnect the connector.
b. Remove driver sensor from the No. 3 heater to resistor duct.
c. Remove passenger sensor from the No. 1 heater to resistor duct.

SENSORS INSTALLATION
Installation is in the reverse order of removal.
