Speed Sensor, Front

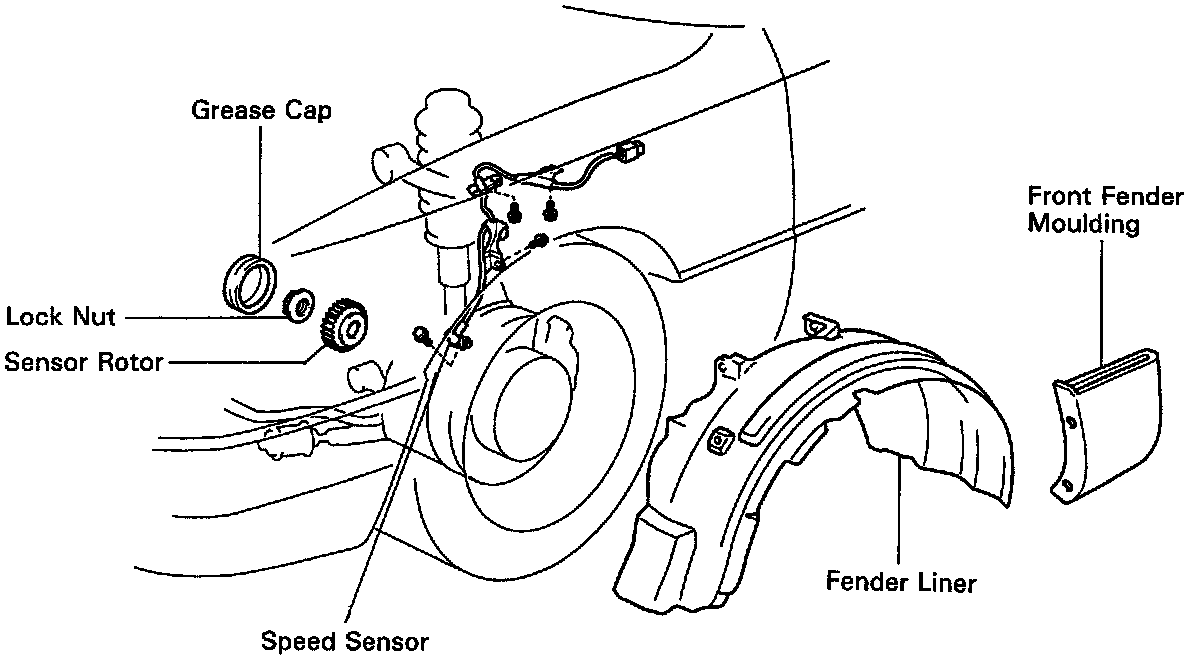

Front Speed Sensor Components:

REMOVAL
1. Disconnect connector.
(a) Remove the front fender moulding and fender liner.

Front Speed Sensor Connector:

(b) Disconnect the Speed Sensor connector.
2. Remove Speed Sensor.
(a) Remove the 3 clamp bolts holding the sensor harness to the body and Steering Knuckle.
Torque: 5.4 Nm (55 kg.cm. 48 inch lbs.)
(b) Right wheel:
Disconnect the pad wear indicator connector from the Speed Sensor wire harness.

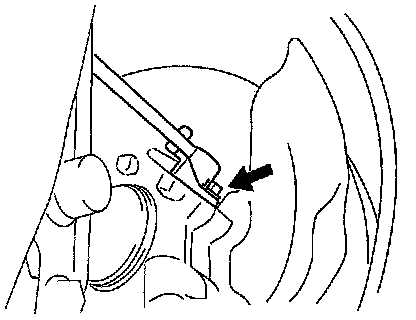

Remove The Speed Sensor From The Steering Knuckle:

(c) Remove the Speed Sensor from the Steering Knuckle.
Torque: 7.8 Nm (80 kg.cm, 69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
After installation, check speed sensor signal.
