Home >> Lexus >> 1997 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index >> Side Air Bags

Side Air Bags

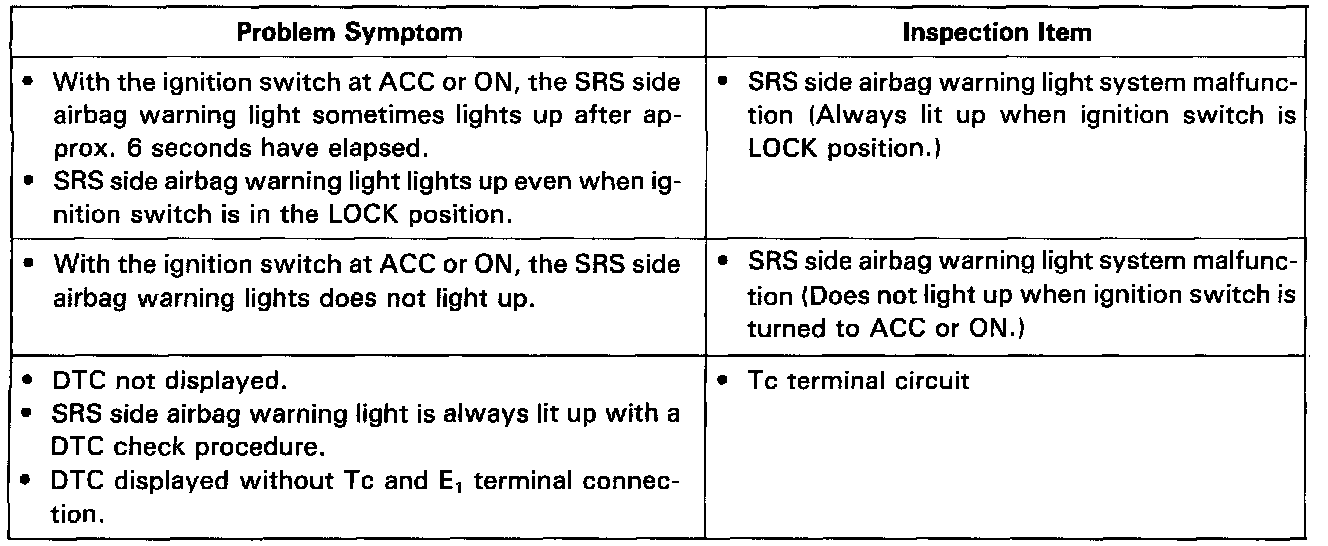

Problem Symptom Table:




Proceed with troubleshooting of each circuit in the table.
