Side Air Bags

CIRCUIT DESCRIPTION
The SRS side airbag warning light is located on the combination meter.
When the SRS side airbag is normal, the SRS side airbag warning light lights up for approx. 6 seconds after the ignition switch is turned from LOCK position to ACC or ON position, and then turns off automatically. If there is a malfunction in the SRS side airbag, the SRS side airbag warning light lights up to inform the driver of the abnormality.
When terminals Tc and E1 of the DLC1 are connected, the DTC is displayed by the blinking of the SRS side airbag warning light.

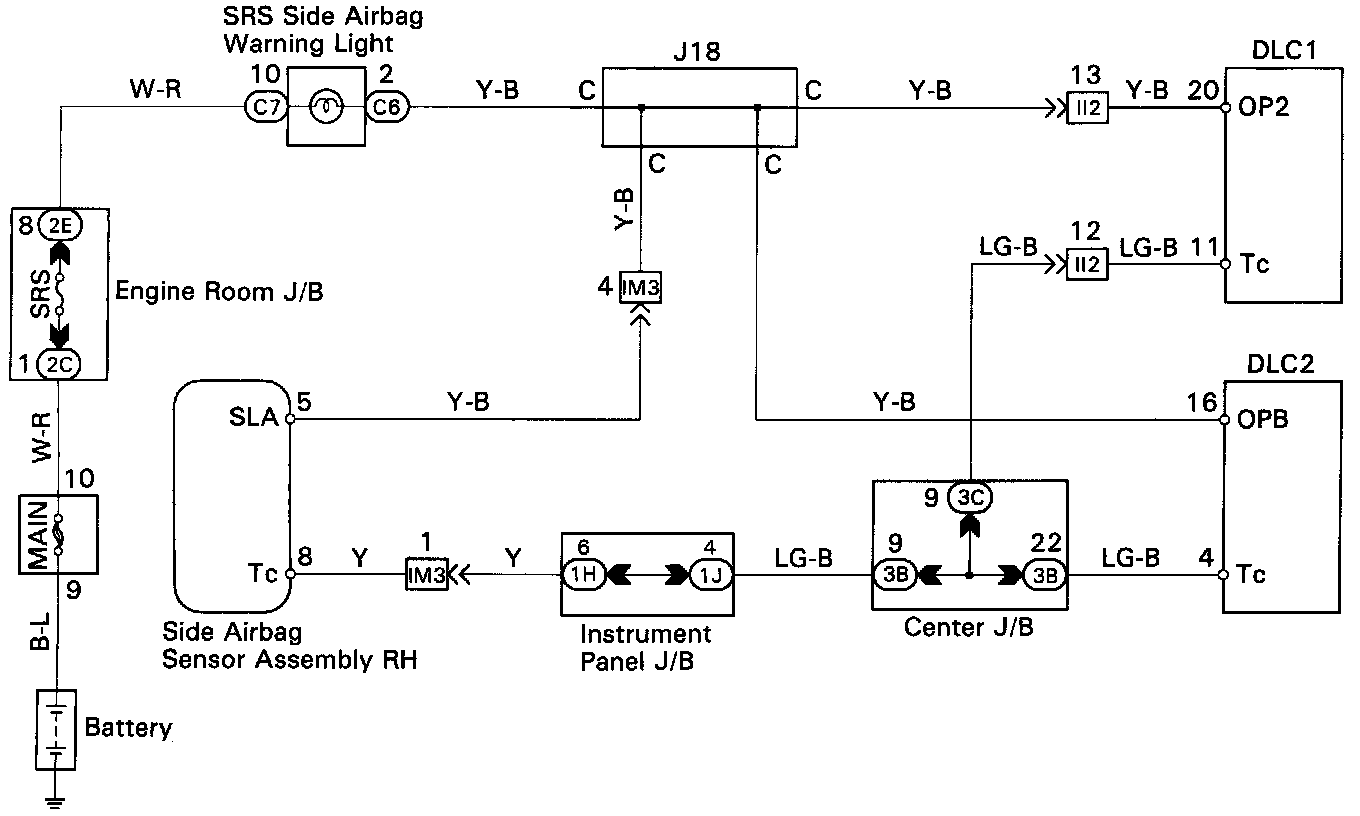

WIRING DIAGRAM

INSPECTION PROCEDURES

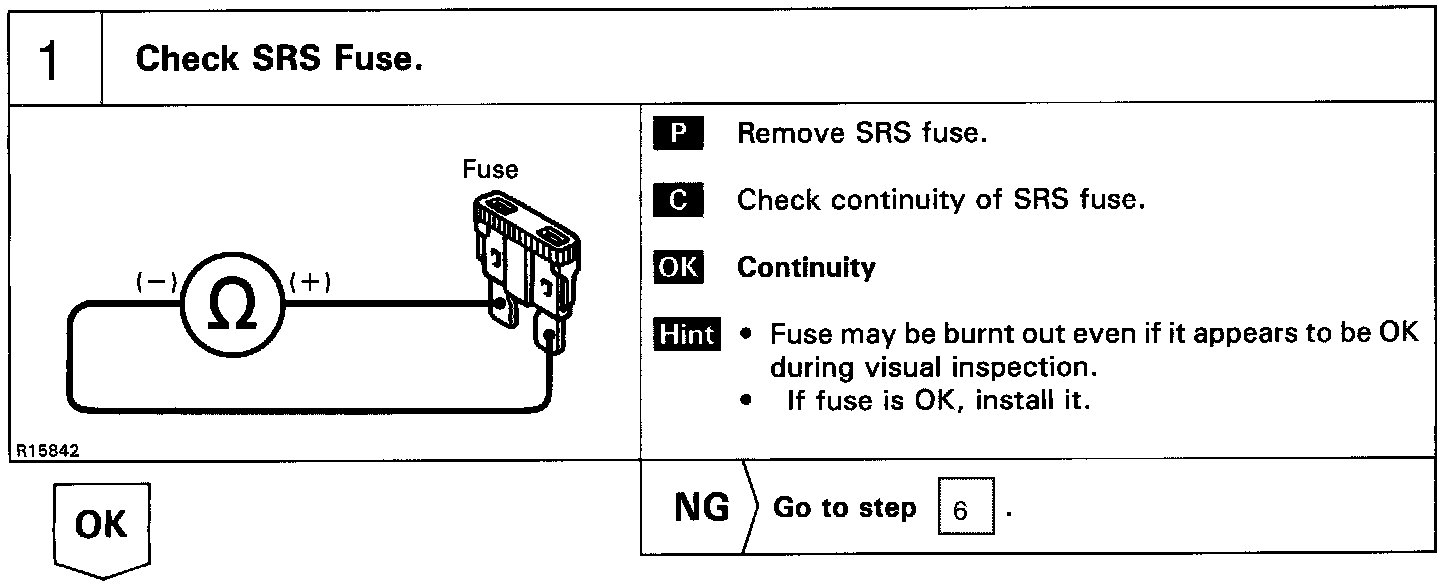

1. Check SRS Fuse

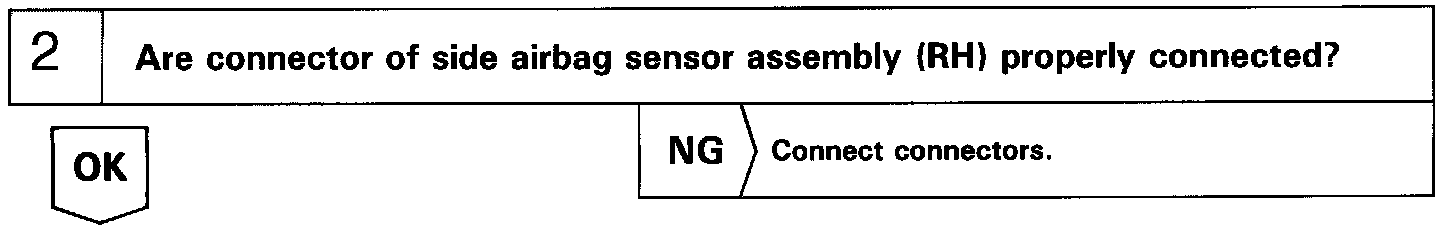

2. Are Connector Of Side Airbag Sensor Assembly (RH) Properly Connected?




3. Preparation

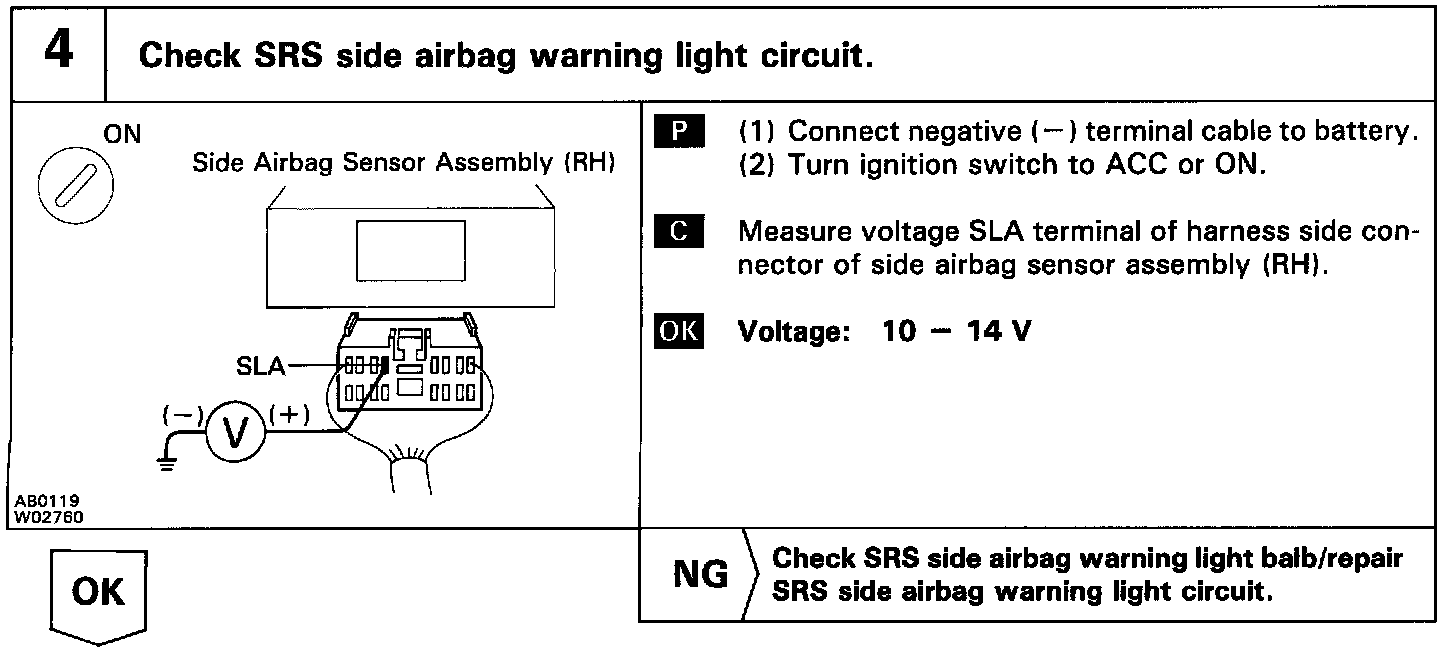

4. Check SRS Side Airbag Warning Light Circuit

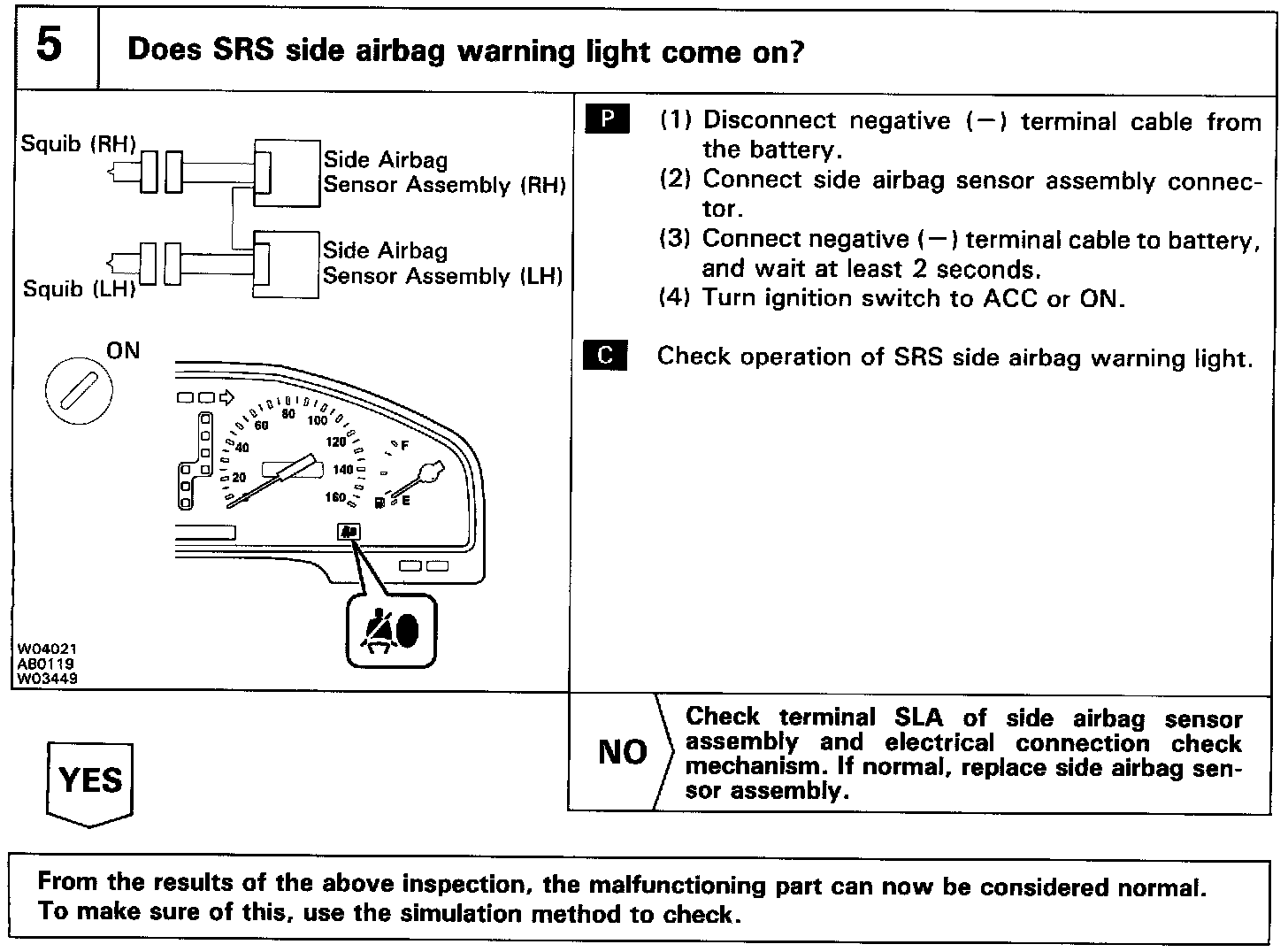

5. Does SRS Side Airbag Warning Light Come On?

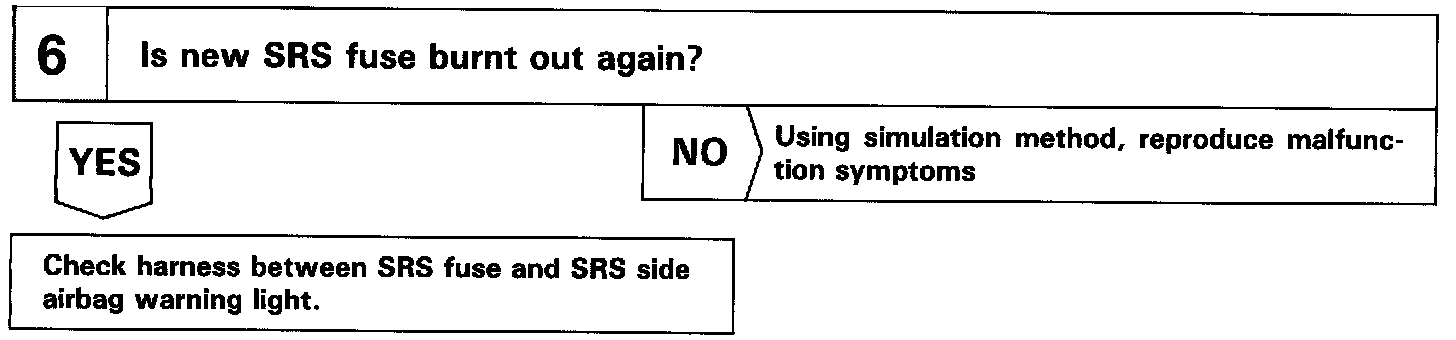

6. Is New SRS Fuse Burnt Out Again?
