Daytime Running Lamp Relay: Testing and Inspection

DAYTIME RUNNING LIGHT RELAY INSPECTION











INSPECT RELAY CIRCUIT

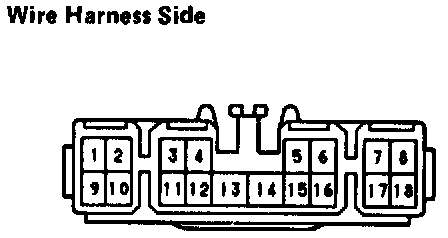

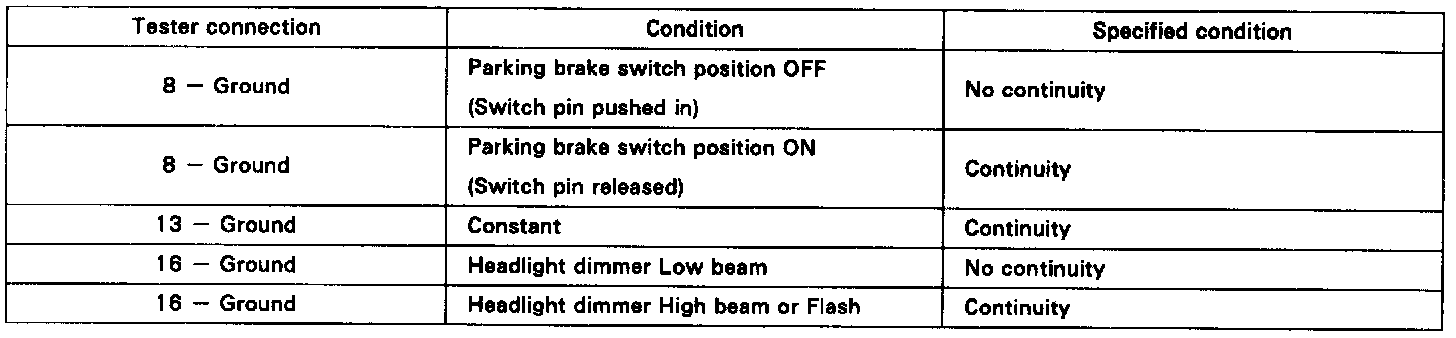

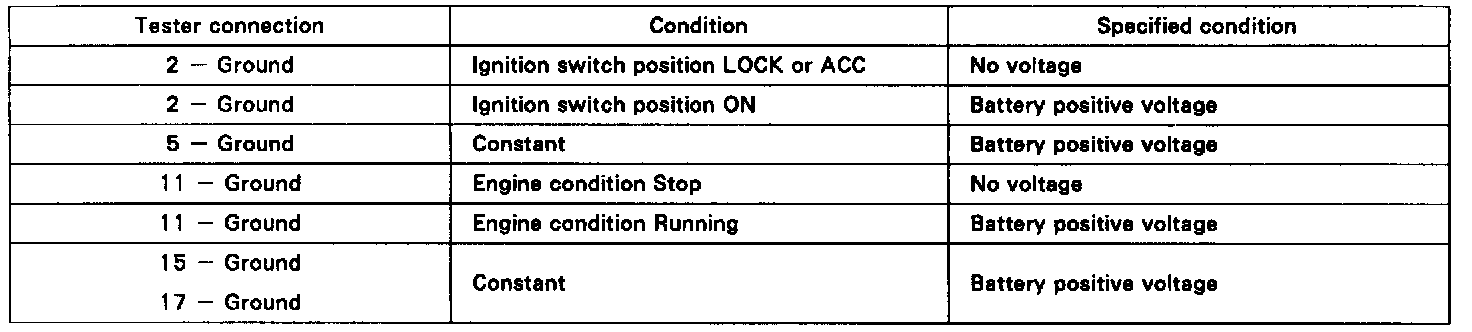

Disconnect the connector from relay and inspect the connector on wire harness side, as shown.
If circuit is as specified, try replacing the relay with a new one.
If the circuit is not as specified, inspect the circuits connected to other parts.

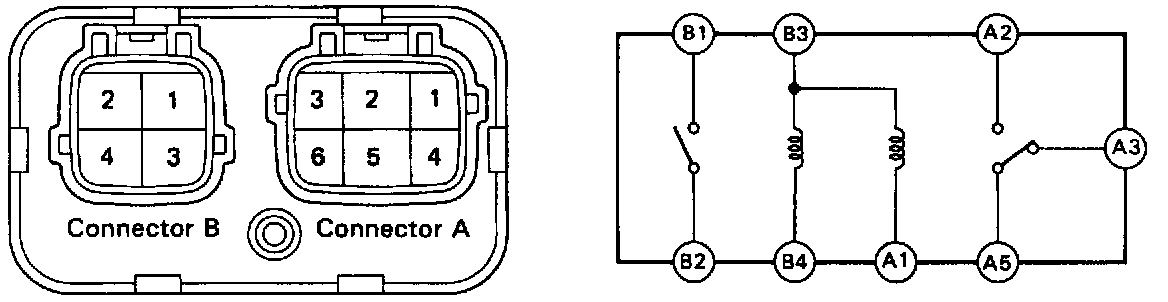

DAYTIME RUNNING LIGHT RELAY No.3 AND No.4 INSPECTION

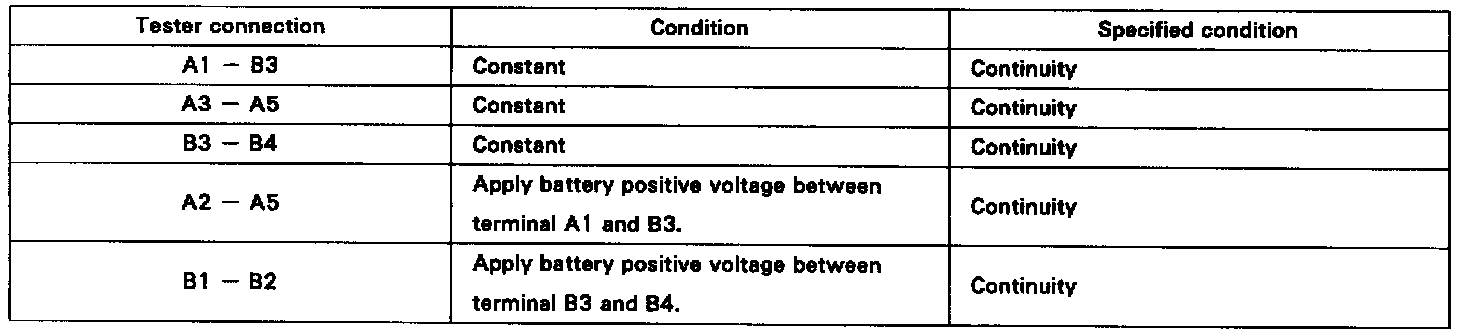

INSPECT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
