Blower Motor Relay: Service and Repair

1. REMOVE BLOWER MOTOR
Service and Repair

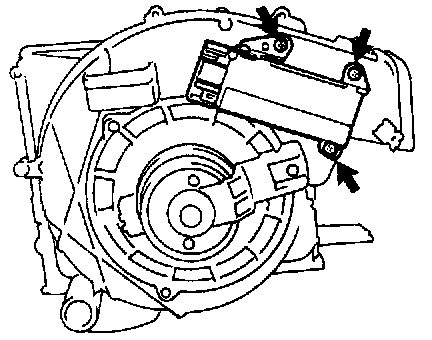

2. REMOVE BLOWER MOTOR CONTROL RELAY
a. Disconnect the connectors.
b. Remove the 2 screws and blower motor control relay.

BLOWER MOTOR CONTROL RELAY INSTALLATION
Installation is in the reverse order of removal.
