Throttle Body: Service and Repair

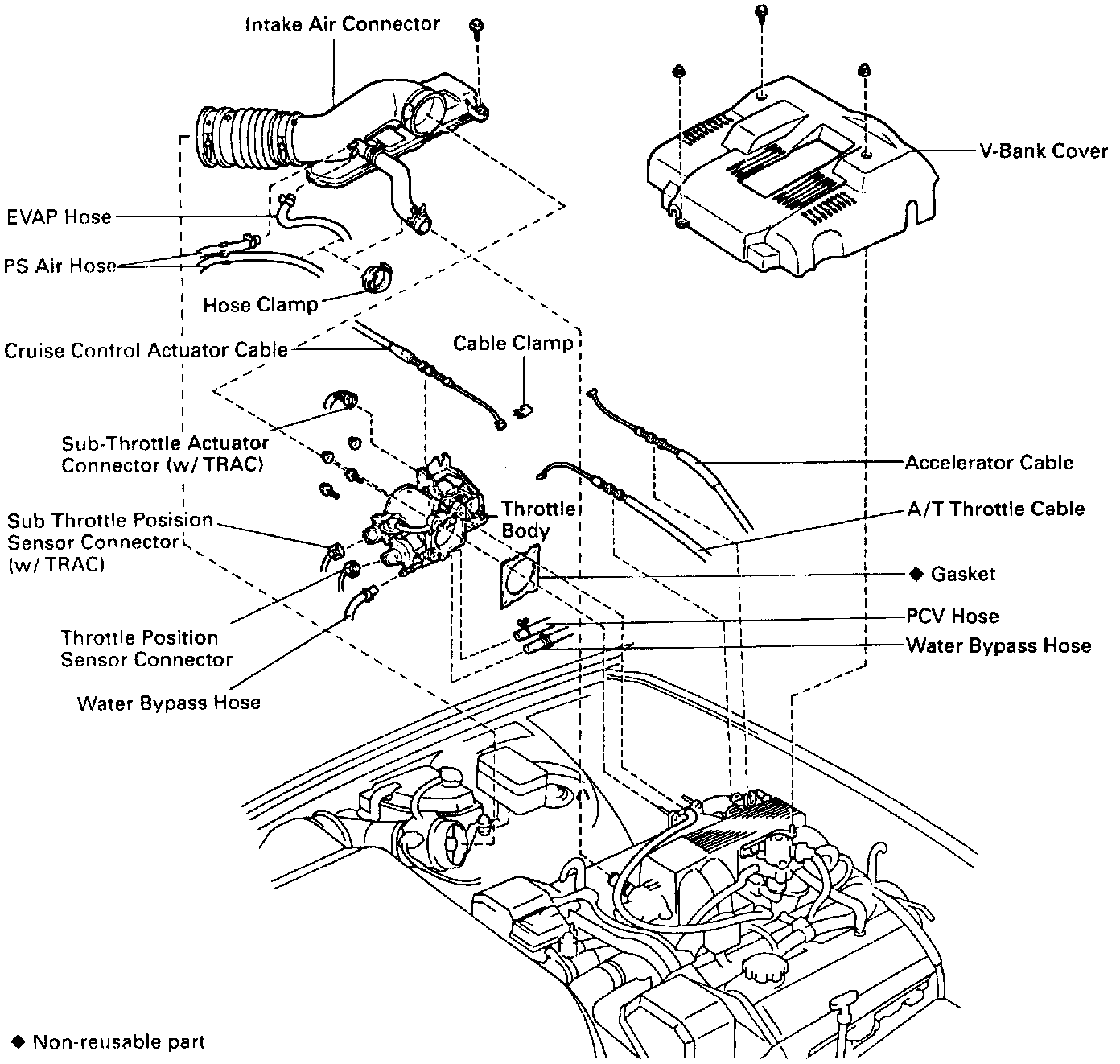

THROTTLE BODY REMOVAL
1. DRAIN ENGINE COOLANT





2. REMOVE V-BANK COVER
3. DISCONNECT CONTROL CABLES FROM THROTTLE BODY
4. REMOVE INTAKE AIR CONNECTOR
5. REMOVE THROTTLE BODY
(a) Disconnect these connectors:
- Throttle position sensor connector
- w/TRAC:
Sub-throttle position sensor connector
- w/TRAC:
Sub-throttle actuator connector

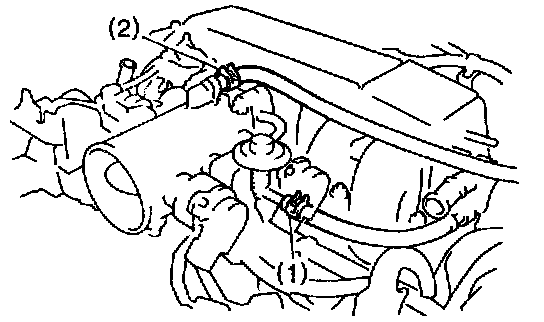

(b) Disconnect these hoses from the throttle body:
(1) Water bypass hose from IAC valve
(2) Vacuum hose from VSV for EVAP

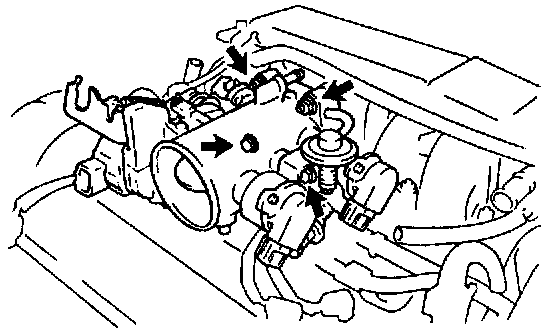

(c) Remove the 2 bolts and 2 nuts, disconnect the throttle body from the air intake chamber.

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

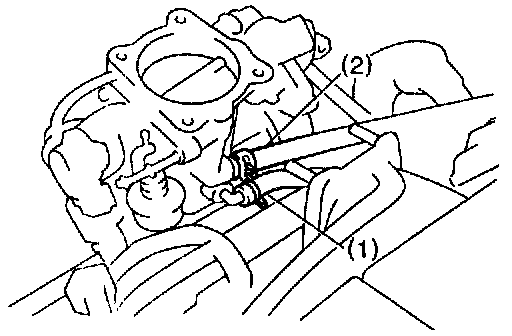

(d) Disconnect these hoses and remove the throttle body:
(1) PCV hose from throttle body
(2) Water bypass hose from throttle body
(e) Remove the throttle body gasket.

INSTALLATION HINT: Use a new gasket.
