Disassembly and Reassembly

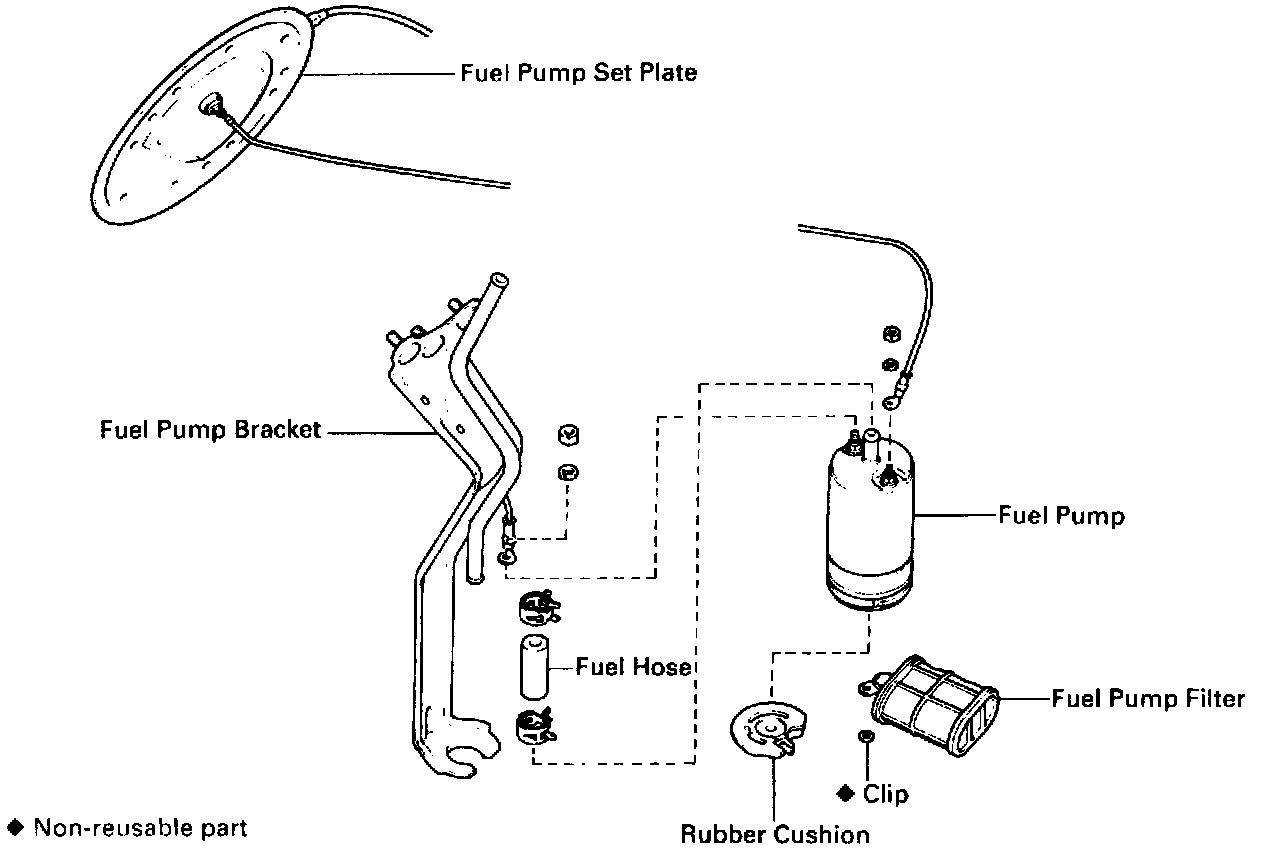

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

FUEL PUMP DISASSEMBLY





1. REMOVE PUMP SET PLATE FROM FUEL PUMP
(a) Remove the 2 nuts, 2 spring washers and disconnect the 2 wires from the fuel pump.
(b) Remove the fuel pump set plate.





2. REMOVE FUEL PUMP FROM PUMP BRACKET

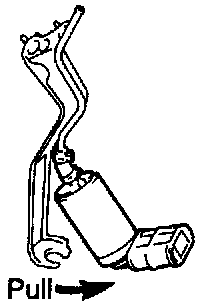

(a) Pull out the lower side of the fuel pump from the pump bracket.

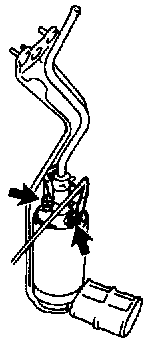

(b) Disconnect the fuel hose from the fuel pump and remove the fuel pump.
(c) Remove the rubber cushion from the fuel pump.

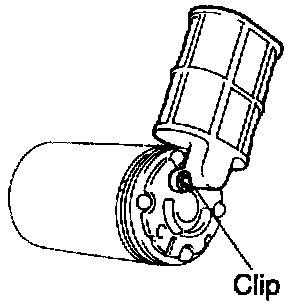

3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
Remove the clip and pull out the filter.

INSTALLATION HINT: Use a new clip.

FUEL PUMP ASSEMBLY
Assembly is in the reverse order of disassembly.
