Fuel Pressure Control Solenoid: Testing and Inspection

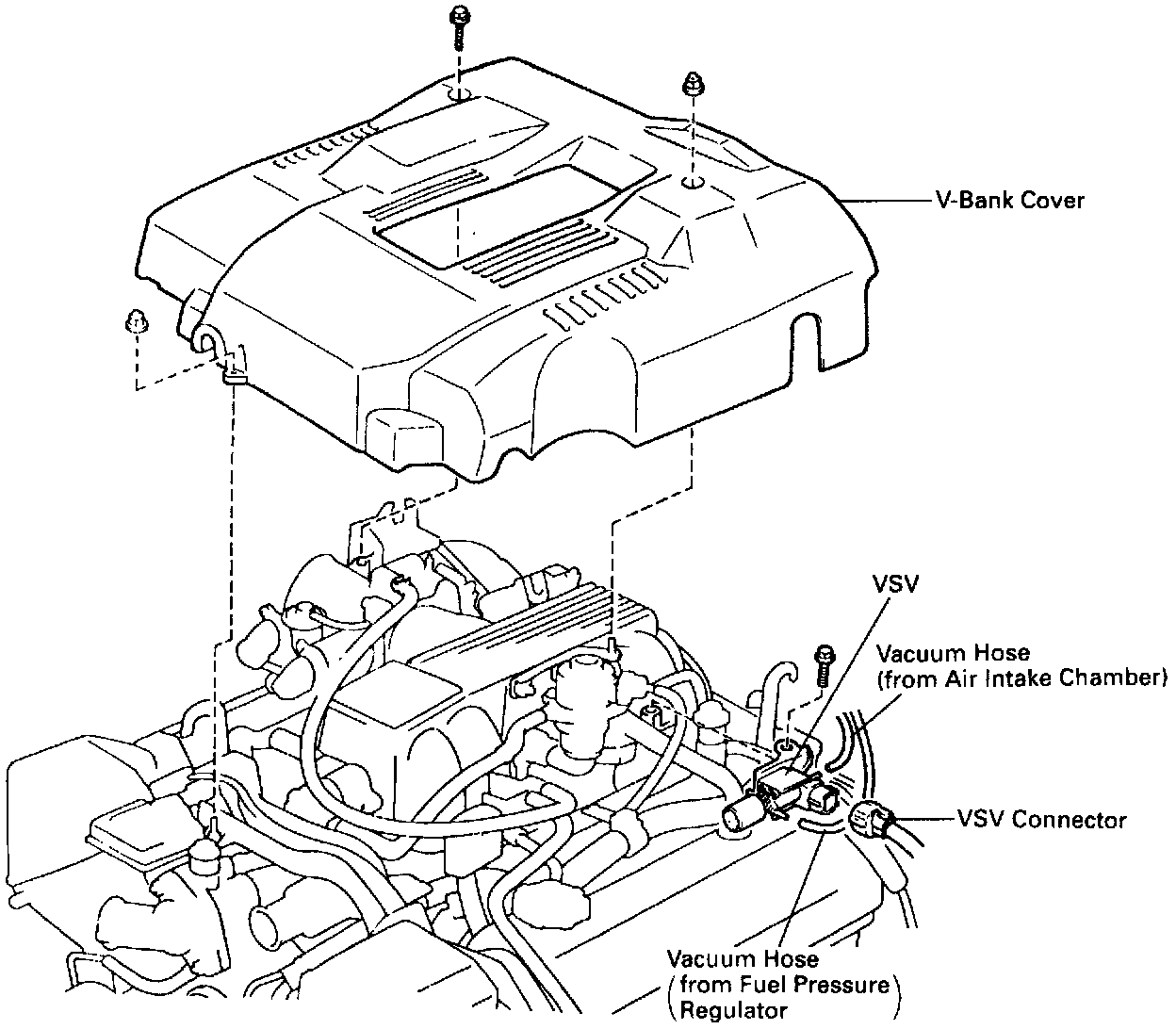

1. REMOVE V-BANK COVER
2. REMOVE VSV
3. INSPECT VSV

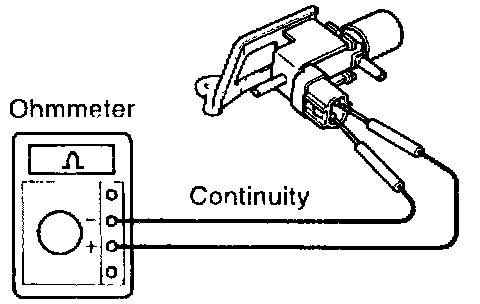

A. Inspect VSV to open circuit
Using an ohmmeter, check that there is continuity between the terminals.

Resistance: At 20°C (68°F) 37 - 44 Ohms

If there is no continuity, replace the VSV.

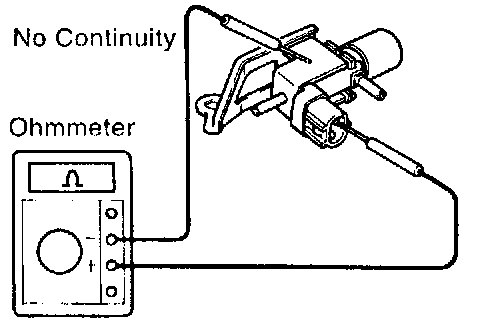

B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity between each terminal and the body.
If there is continuity, replace the VSV.





C. Inspect VSV operation

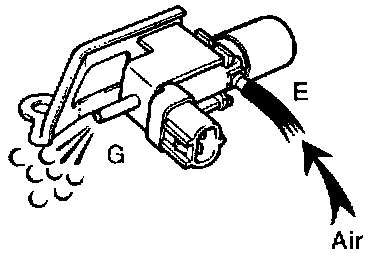

(a) Check that air flows from port E to G.

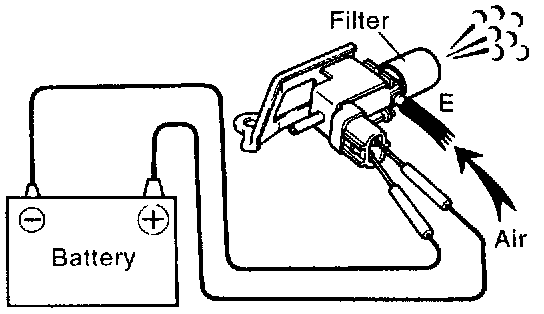

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to the filter.
If operation is not as specified, replace the VSV.
4. REINSTALL VSV

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

5. REINSTALL V-BANK COVER
