Catalytic Converter: Service and Repair

COMPONENTS FOR FRONT TWC REPLACEMENT





COMPONENTS FOR REAR TWC REPLACEMENT

INSTALLATION

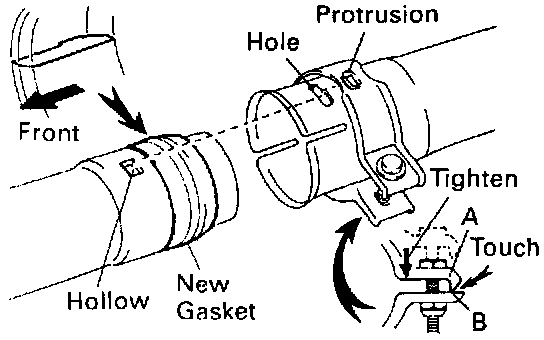

CONNECT FRONT AND CENTER EXHAUST PIPES





HINT:
- Install a new gasket to the exhaust pipe in the correct direction.
- Fit together the clamp protrusion and pipe hollow and tighten the clamp bolt until A and B of the clamp are just touching
