Component Inspection

TAILLIGHT CONTROL RELAY INSPECTION

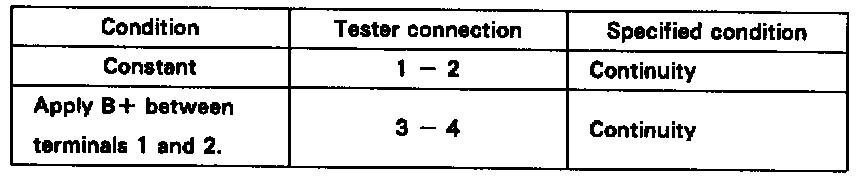

1. INSPECT RELAY CONTINUITY
If continually is not as specified, replace the relay.

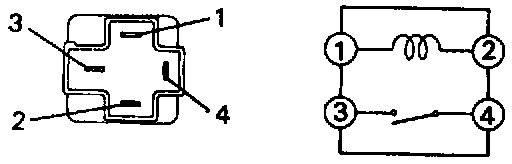

2. INSPECT RELAY CIRCUIT
Instrument Panel Junction Block
