Fog/Driving Lamp Relay: Testing and Inspection

FOG LIGHT RELAY INSPECTION

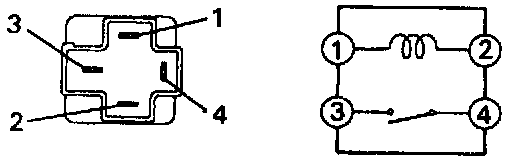

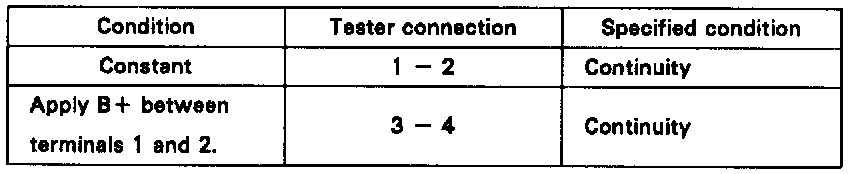

1. INSPECT RELAY CONTINUITY
If continuity is not as specified, replace the relay.

2. INSPECT RELAY CIRCUIT
