Troubleshooting Combination Meter

PRECAUTIONS
1. When checking voltage, resistance, etc., use a high impedance type tester (it is impossible with a simple tester).
2. When the ignition switch is turned to START, all meters will go out but this is normal.
3. When replacing the internal mechanism (computer parts) of the meter, be careful that no part of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the replacement parts (spare parts).
4. Do not disconnect the battery while engine is running as this would cause an instant reverse charge, resulting in damage to the components.
5. Always disconnect the battery terminals before pulling apart connectors or terminals.
6. To prevent damage, handle meters with care.

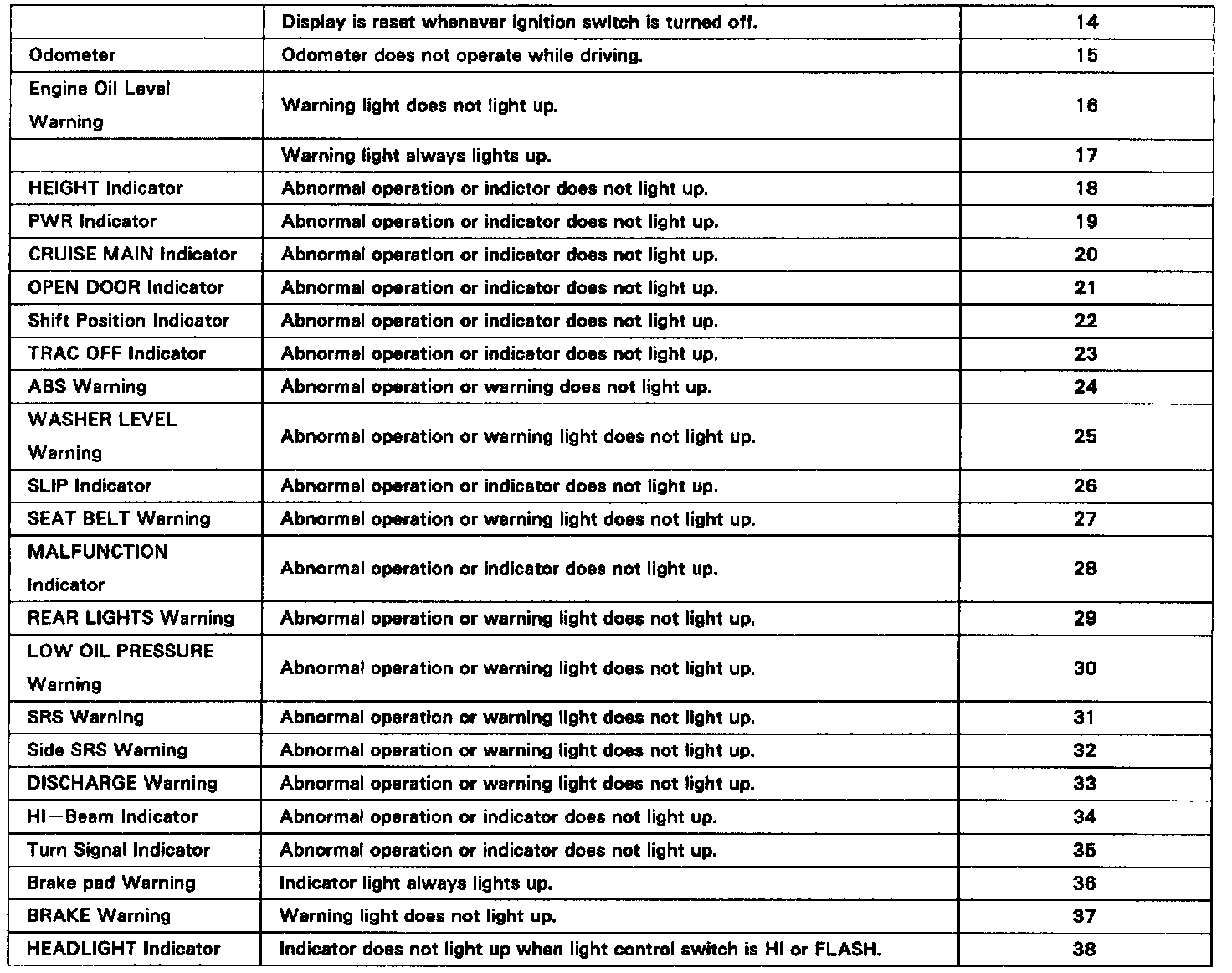

TROUBLESHOOTING/COMBINATION METER

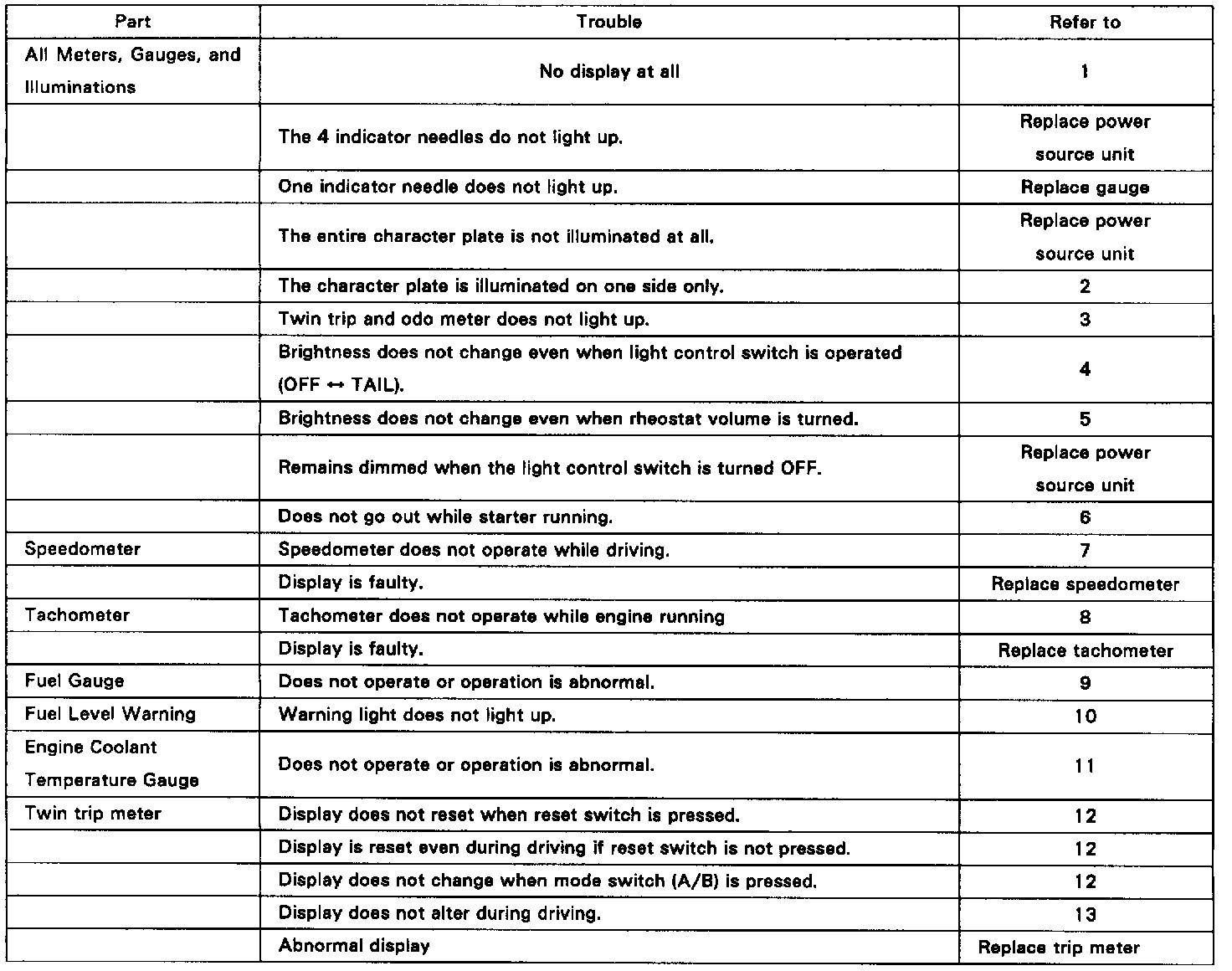

ALL METERS, GAUGES, AND ILLUMINATIONS

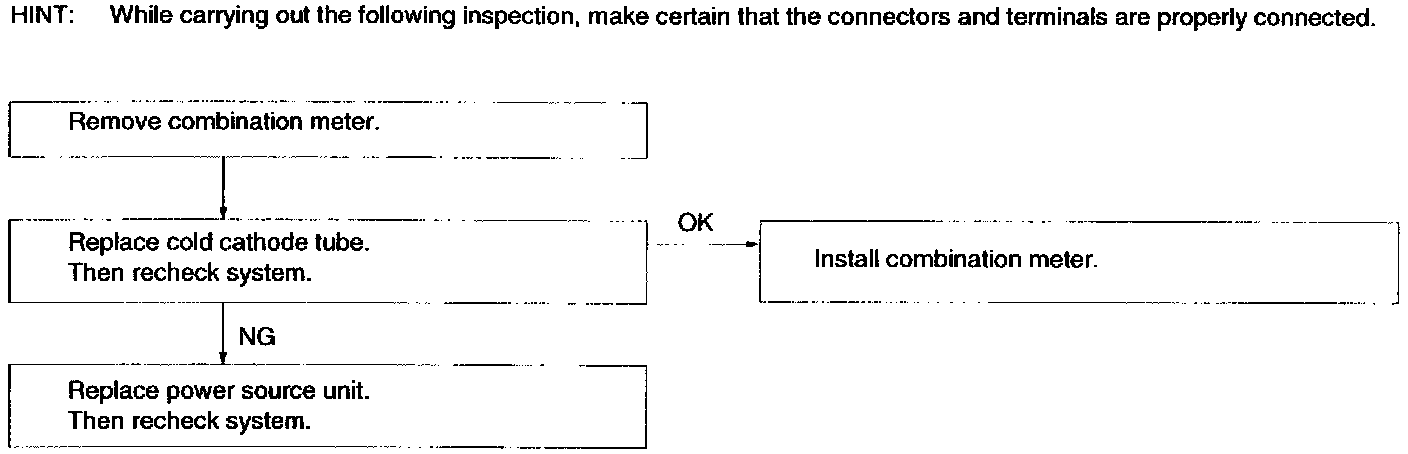

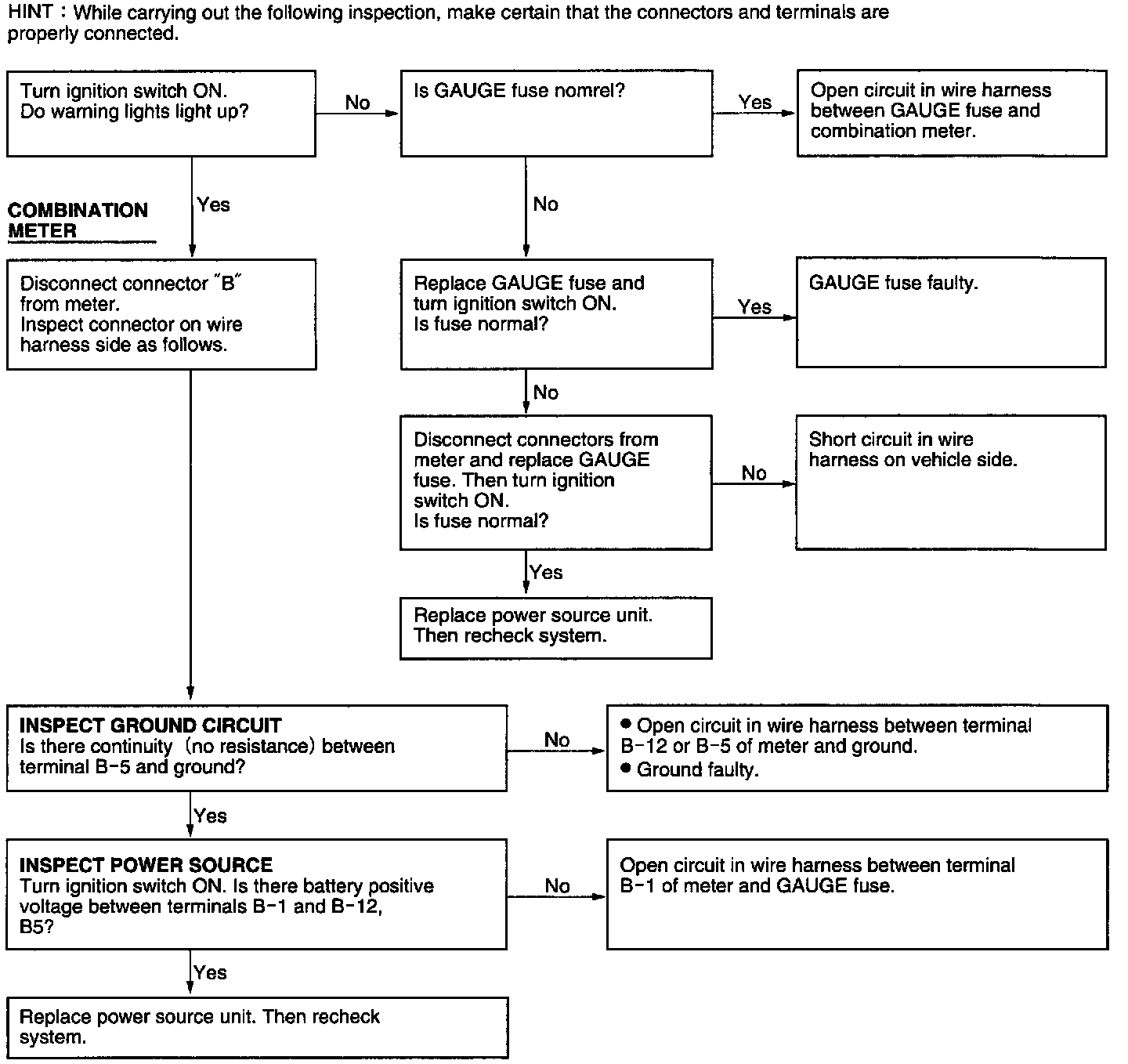

1. No display at all.

2. The character plate is illuminated on one side only.

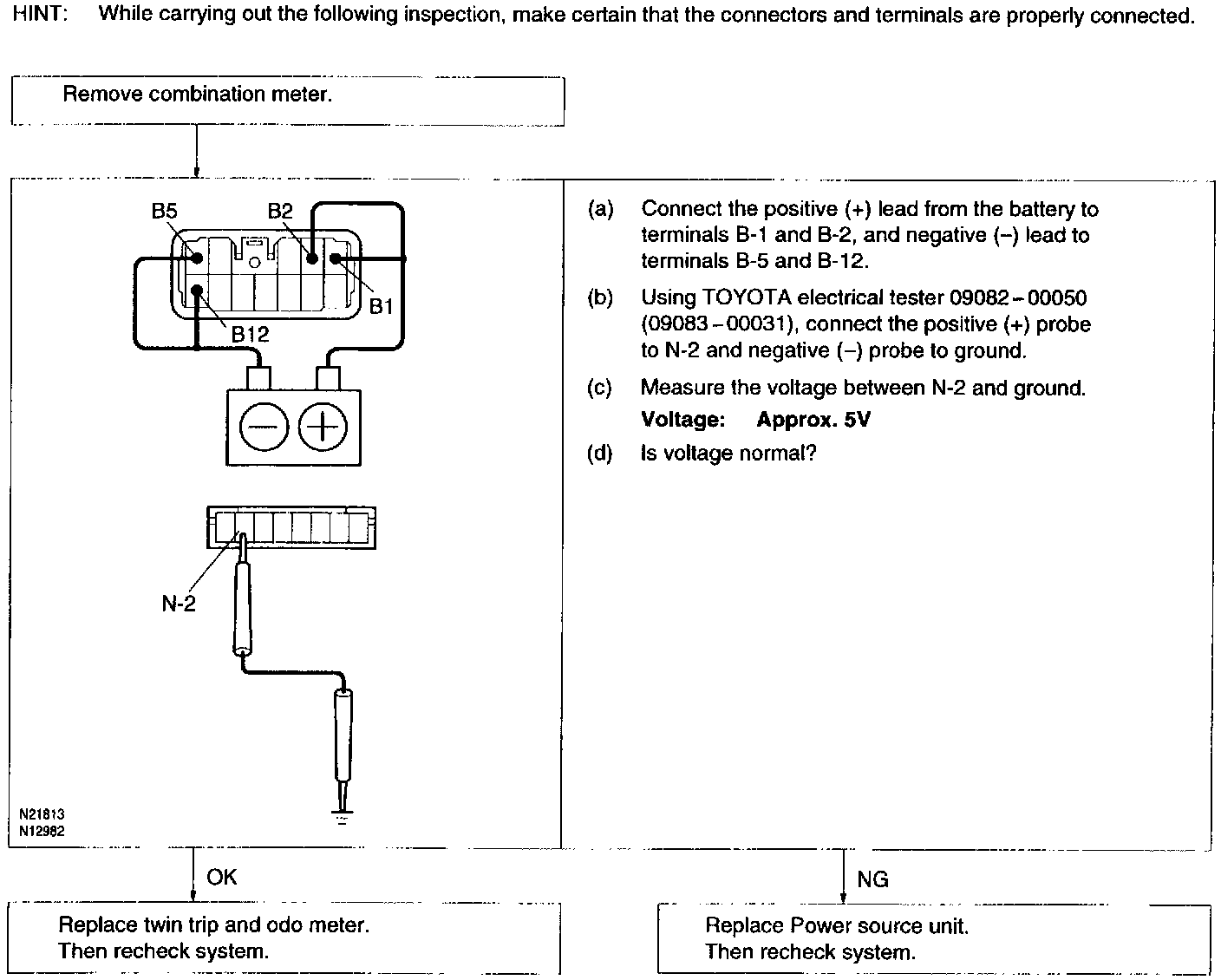

3. Twin trip and odometer does not light up.

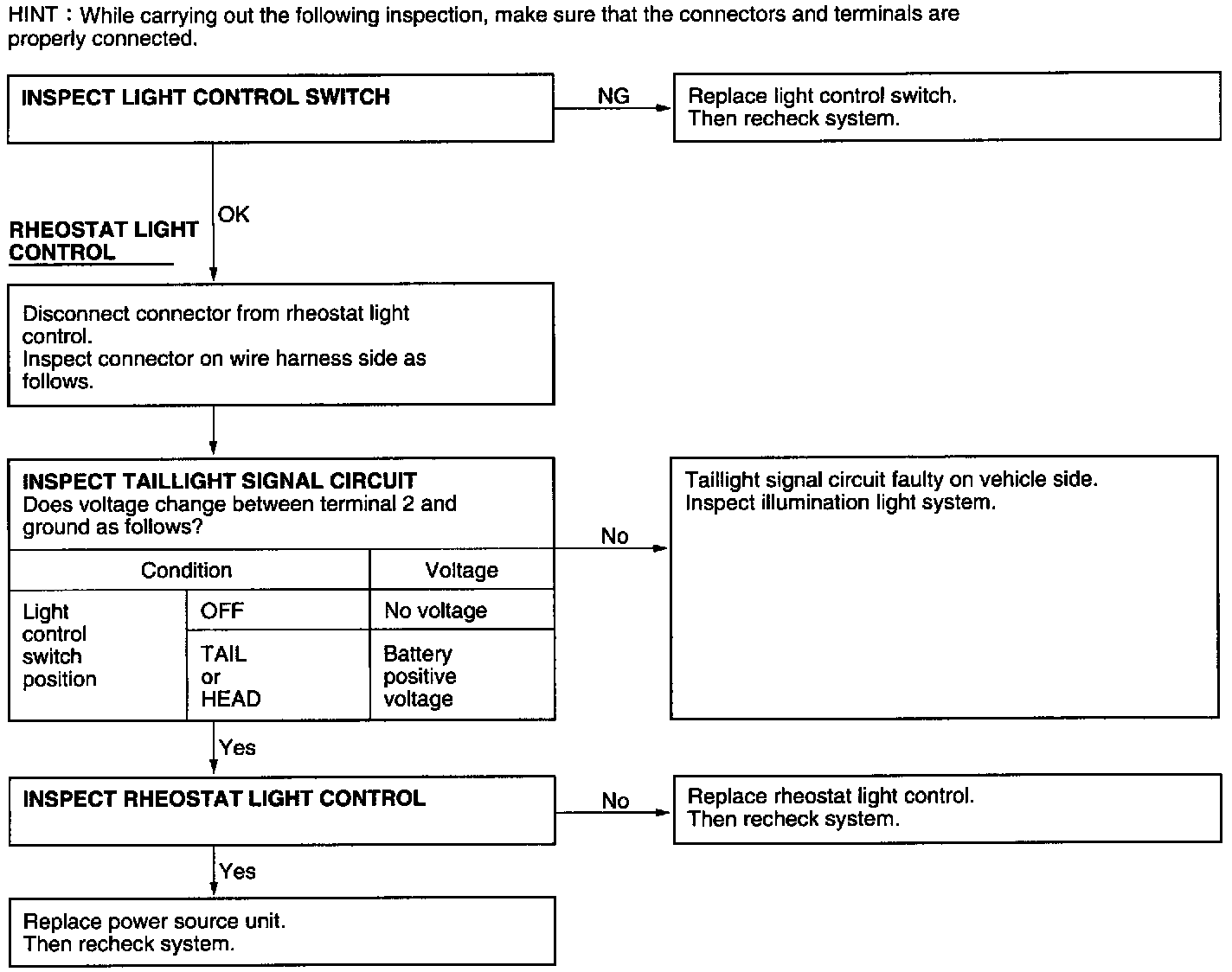

4. Brightness does not change even when light control switch is operated (OFF<->TAIL)

5. Brightness does not change even when rheostat volume is turned

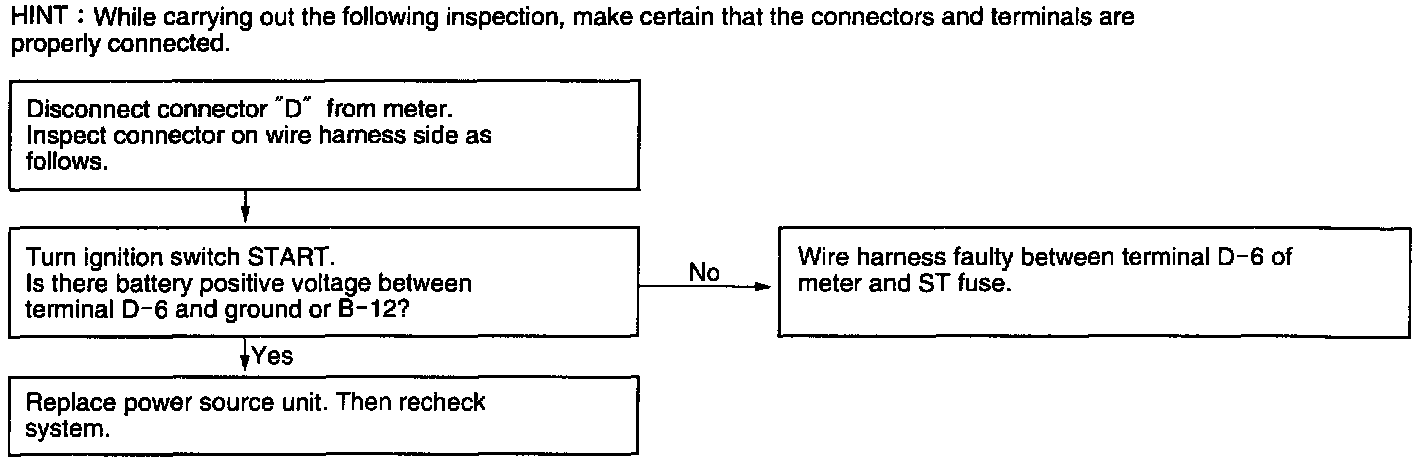

6. Does not go out while stater running

SPEEDOMETER

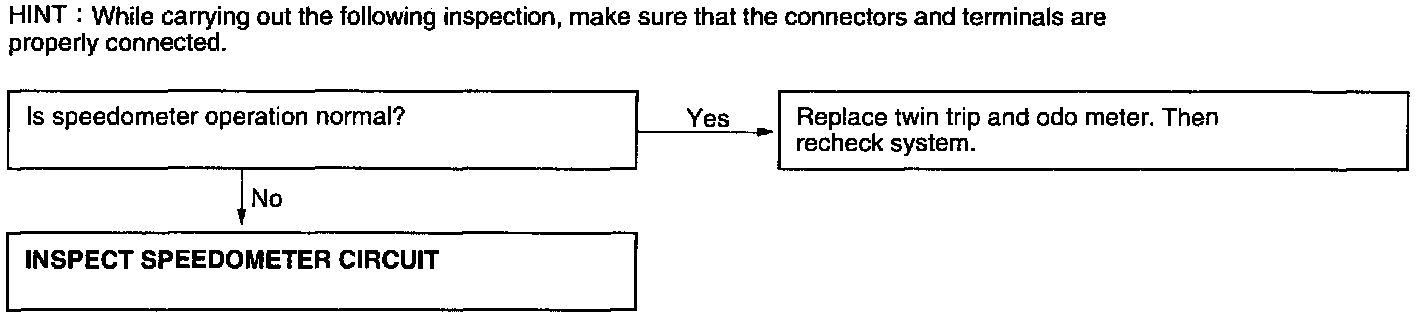

7. Speedometer does not operate while driving.

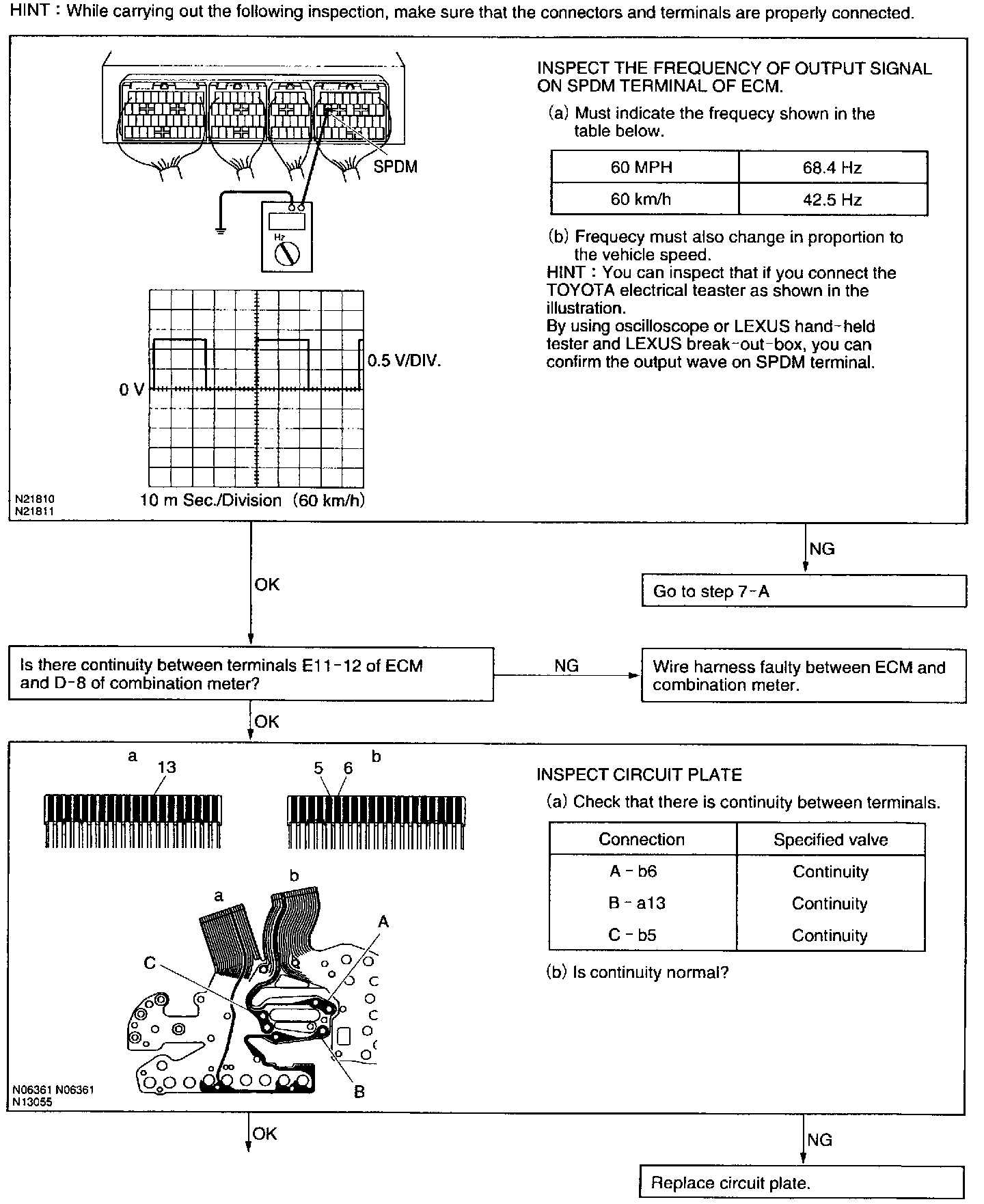

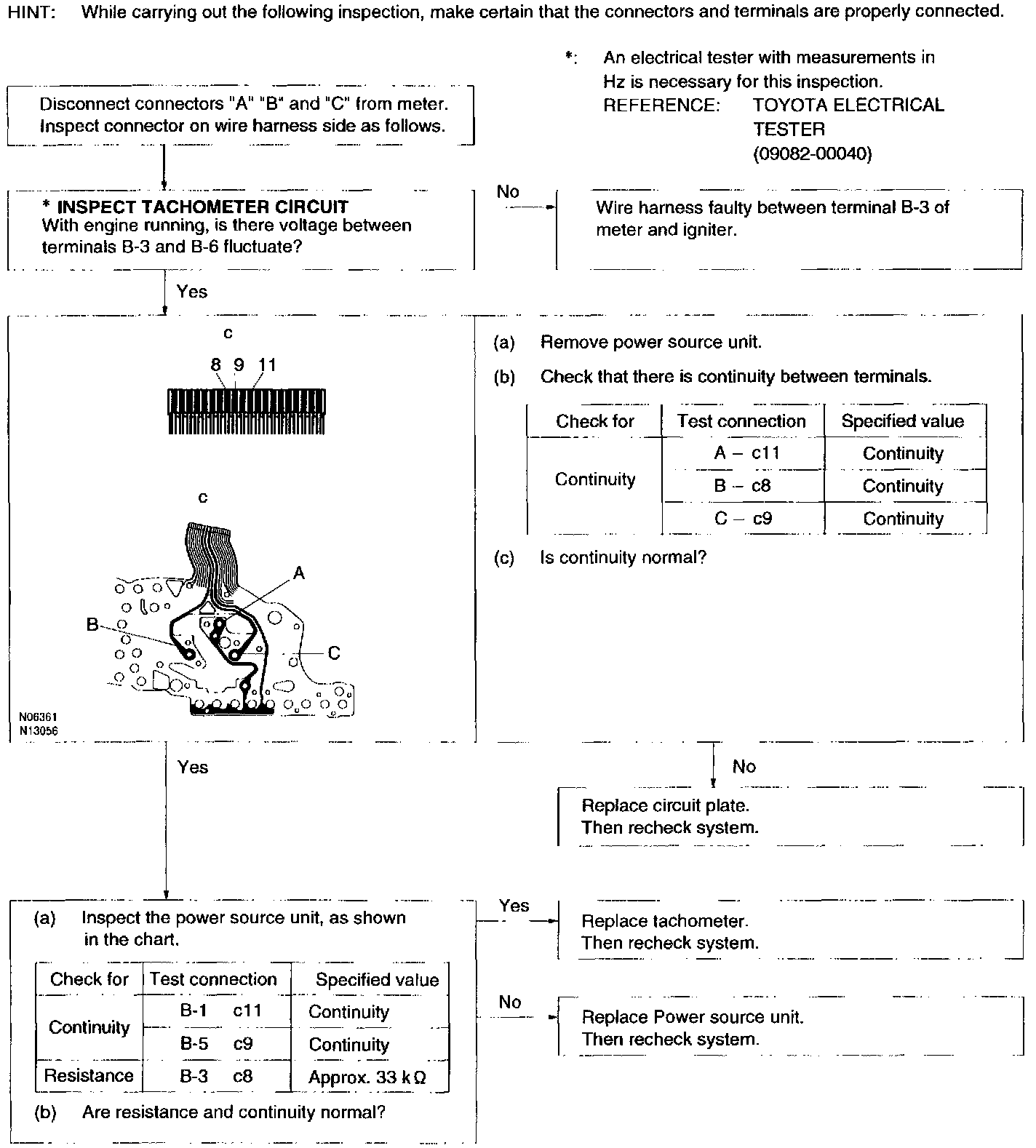

TACHOMETER

8. Tachometer does not operate while engine running.

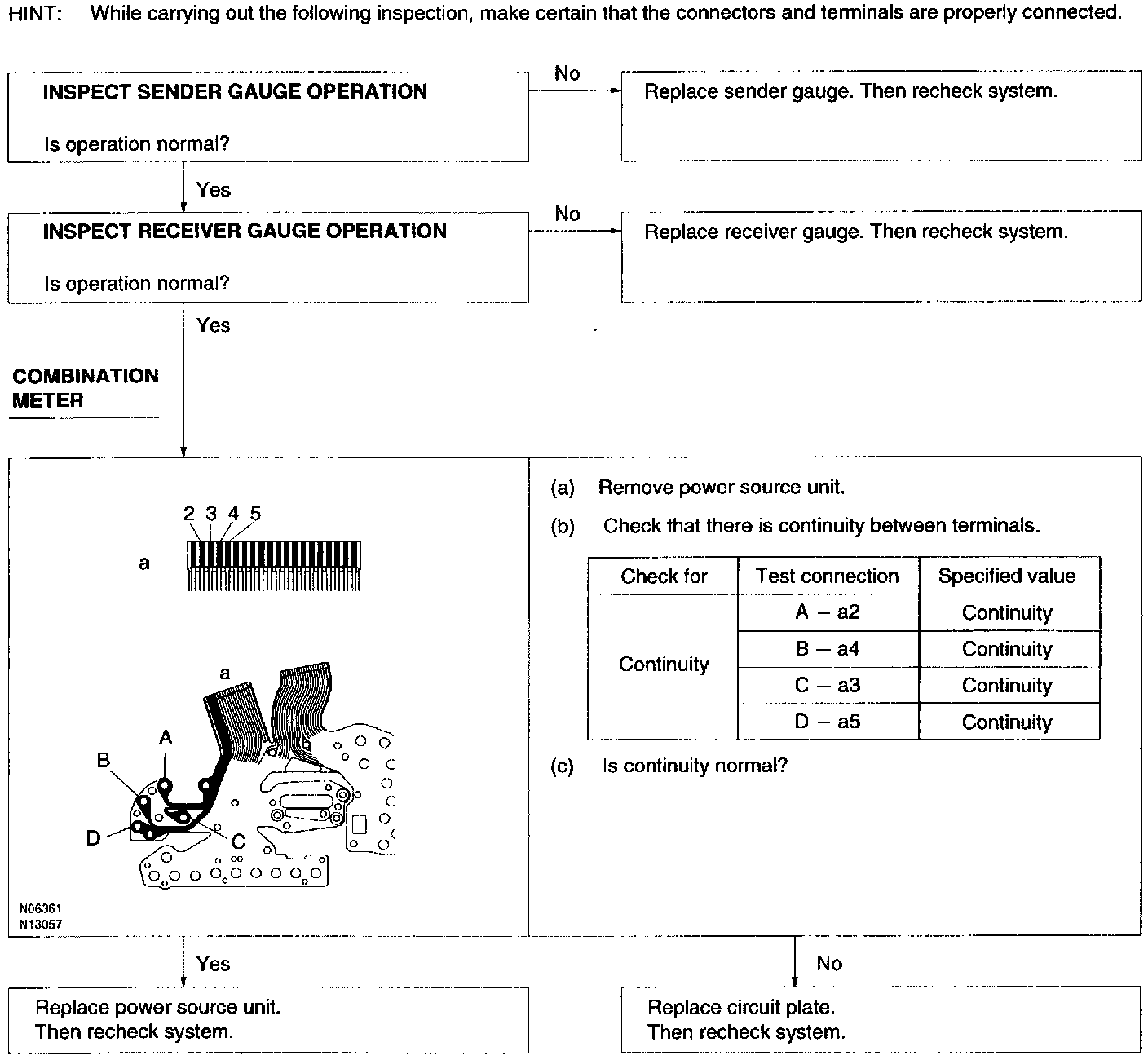

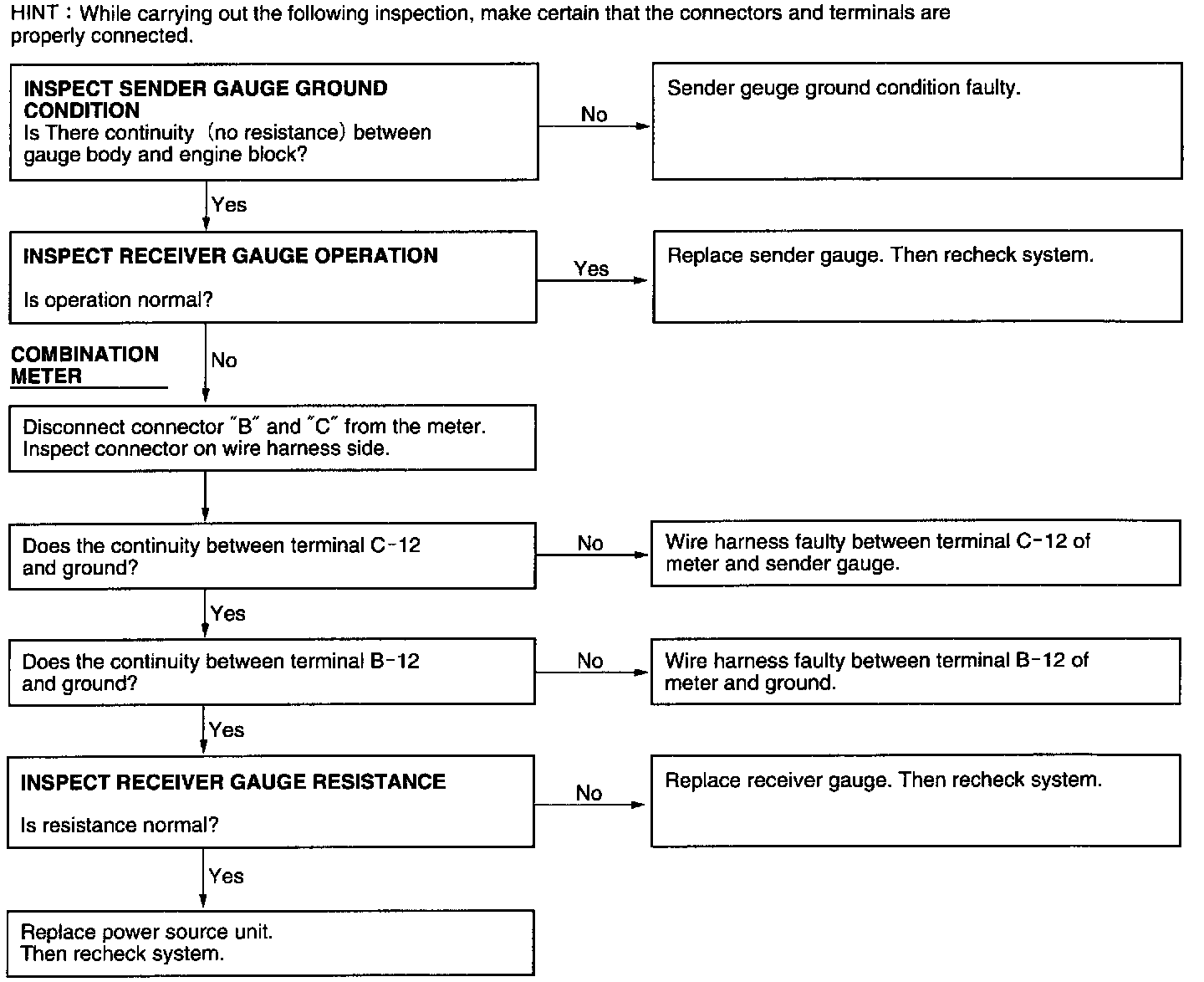

FUEL GAUGE

9. Does not operate or operation is abnormal.

FUEL LEVEL

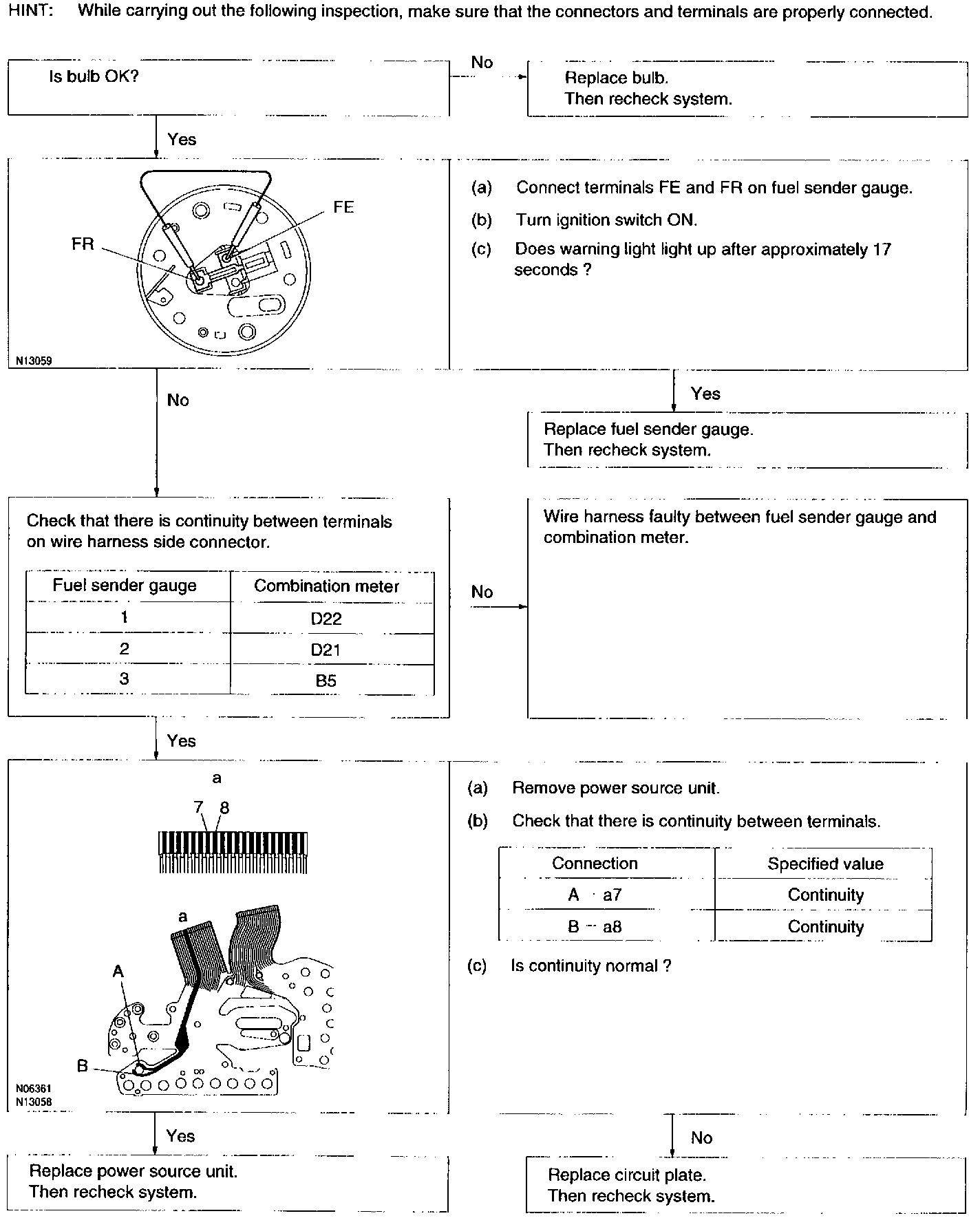

10. WARNING Warning light does not light up.

ENGINE COOLANT TEMPERATURE GAUGE

11. Does not operate or operation is abnormal.

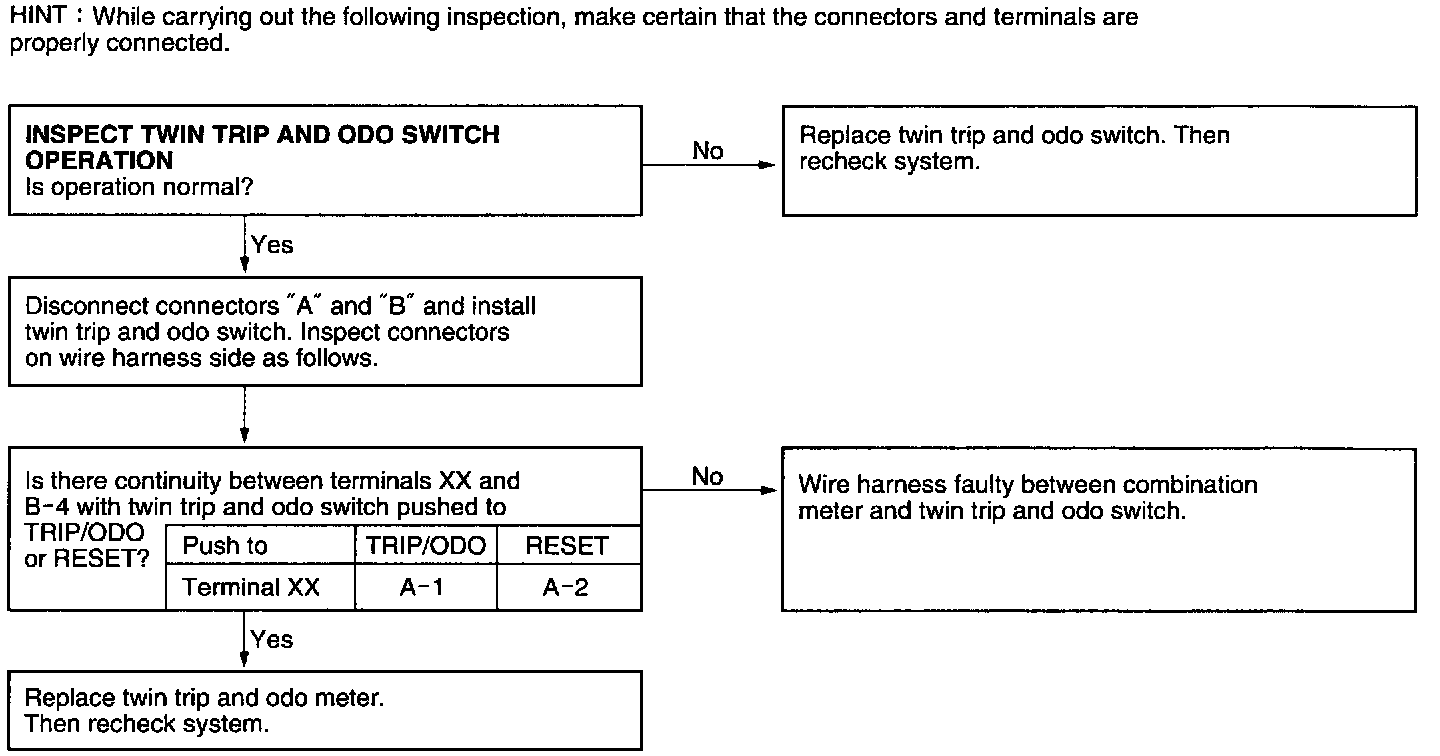

TWIN TRIP METER

12.
^ Display does not reset when reset switch pressed.
^ Display is reset even during driving if reset switch is not pressed.
^ Display does not change when mode switch (TRIP/ODO) is pressed.

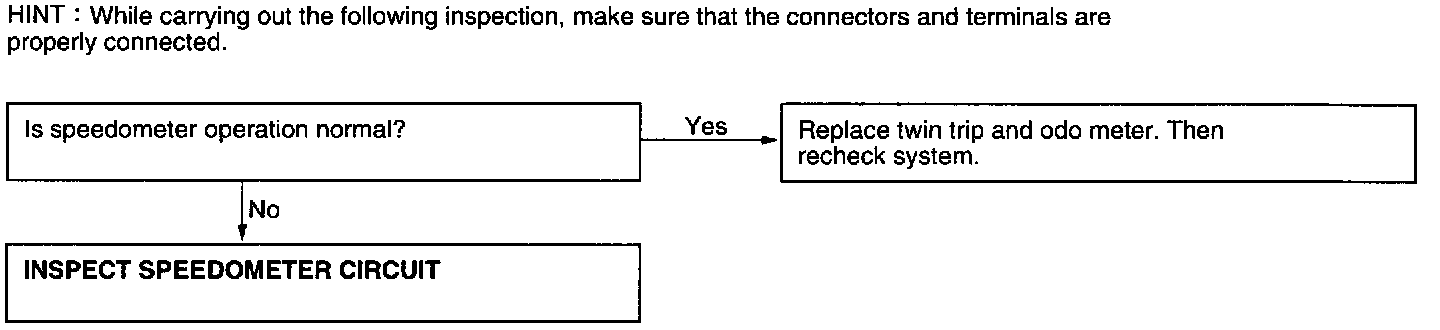

13 Display does not alter during driving.

14. Display is reset whenever ignition switch is turned off.

ODOMETER

15. Odometer does not operate while driving.

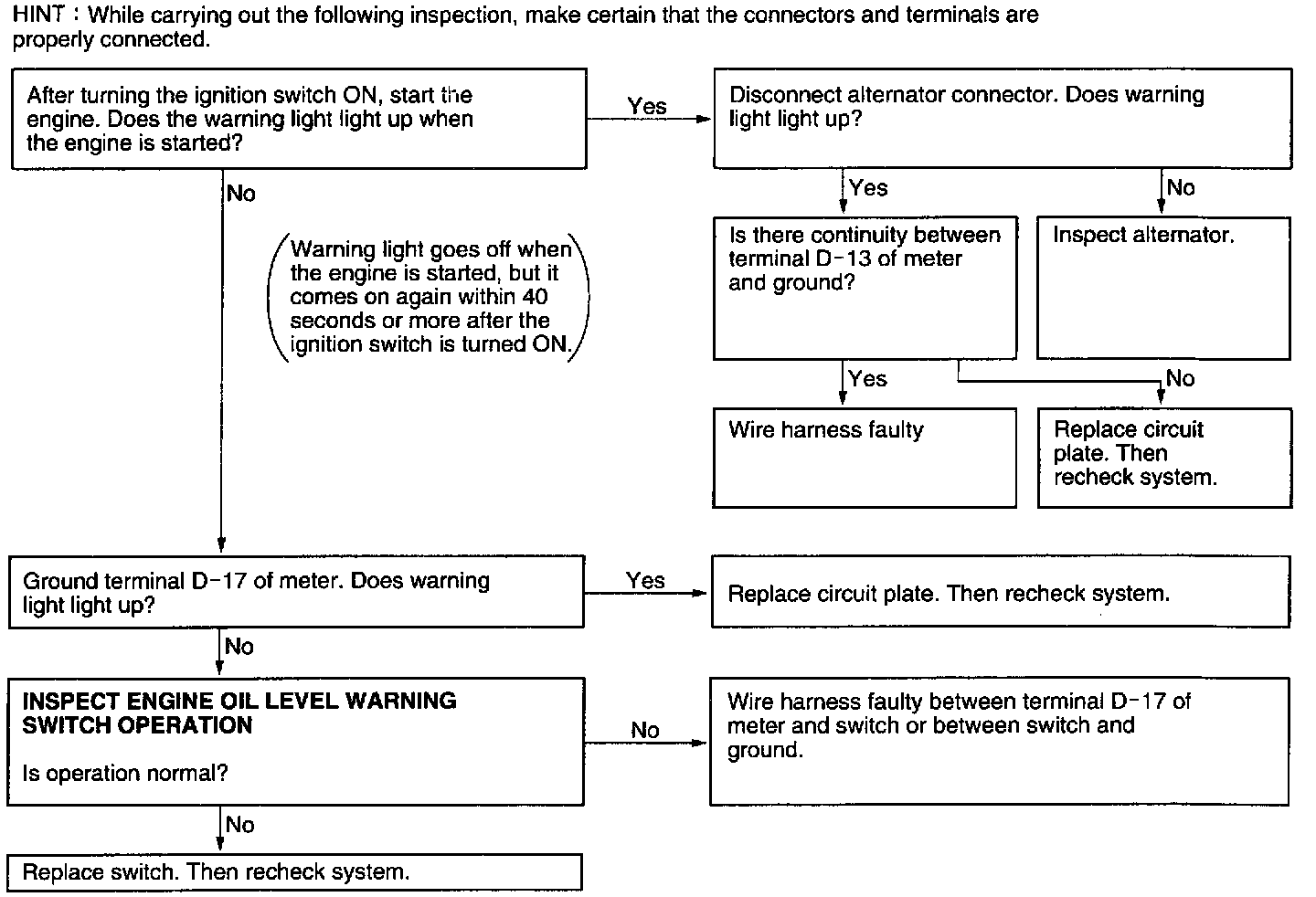

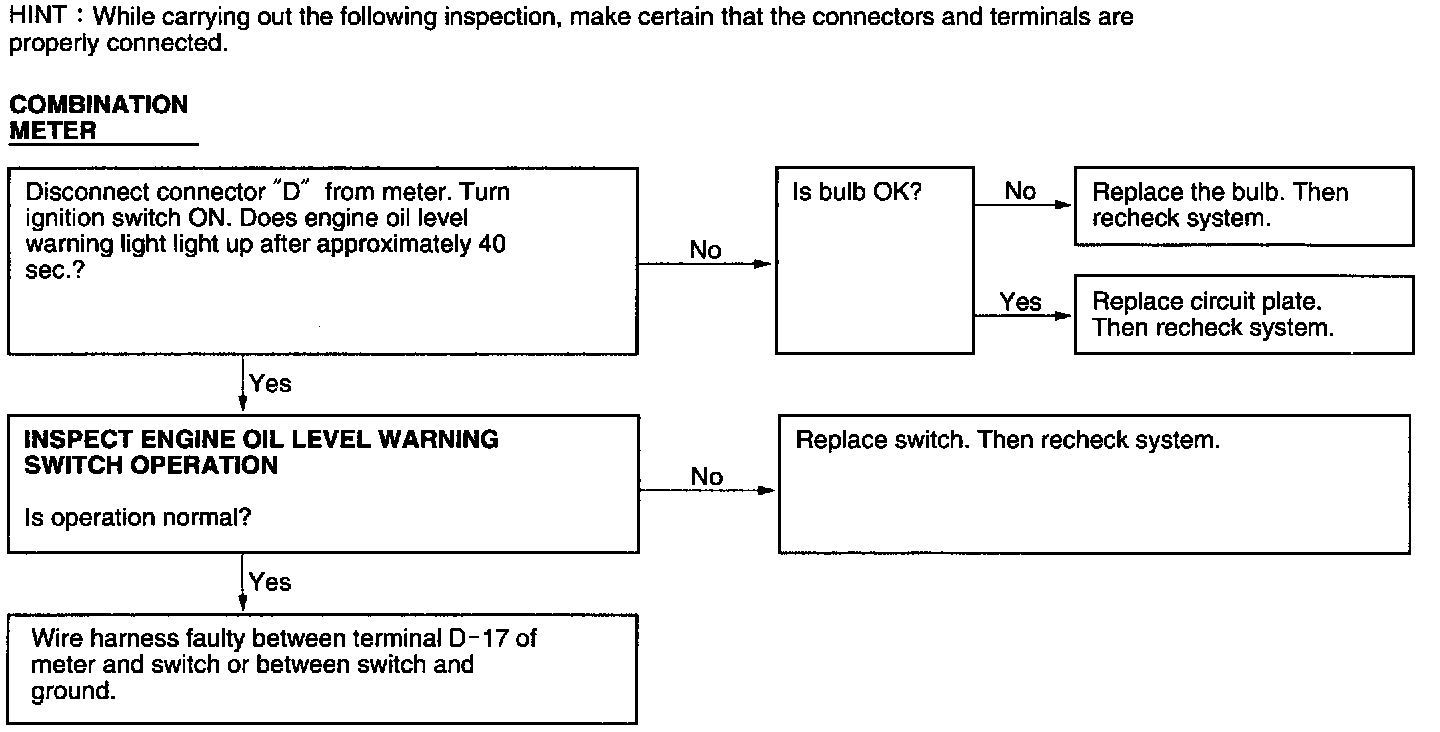

ENGINE OIL LEVEL WARNING

16. Warning light does not light up.

17. Warning light always light up.

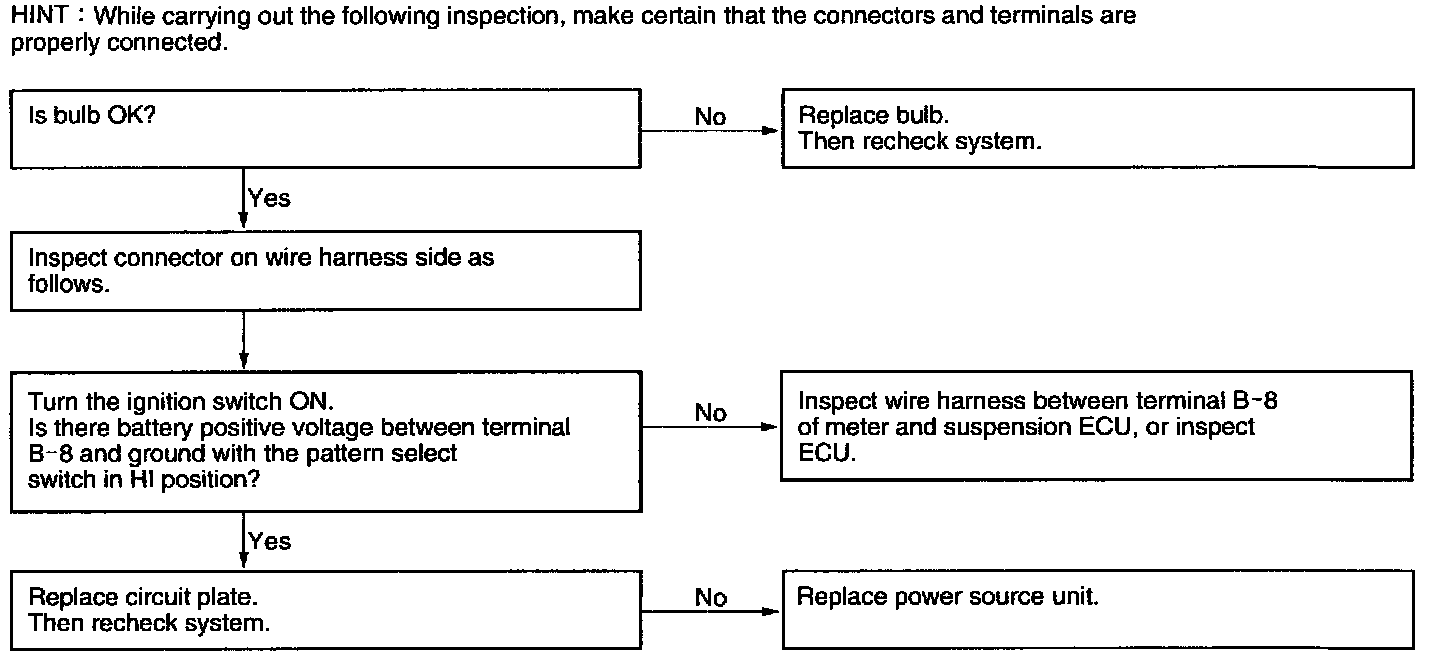

HEIGHT INDICATOR

18. Abnormal operation or indicator does not light up

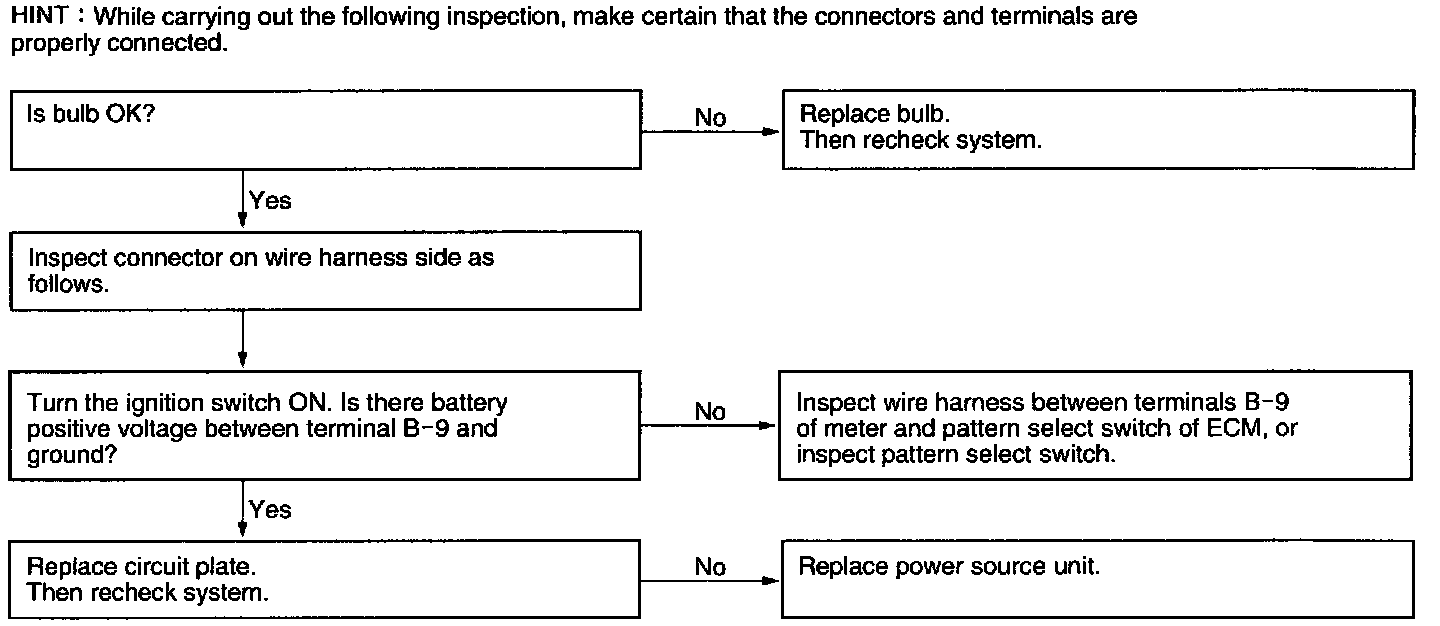

PWR INDICATOR

19. Abnormal operation or indicator does not light up.

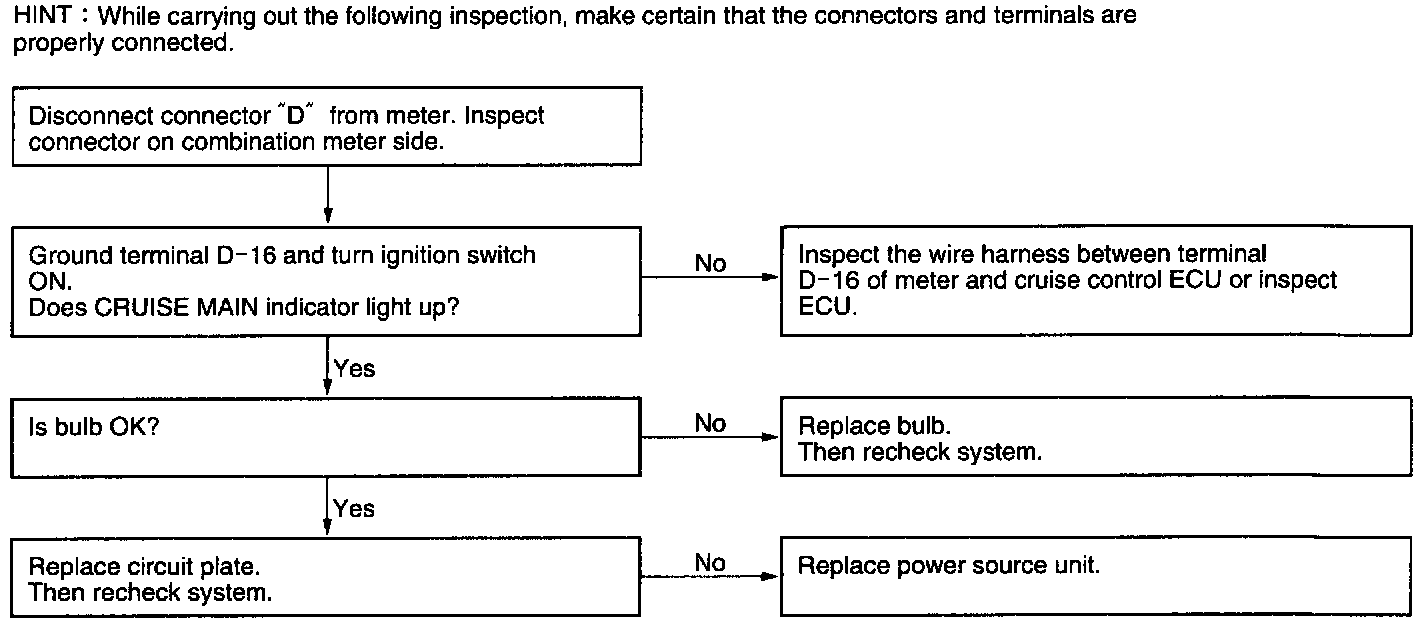

CRUISE MAIN INDICATOR

20. Abnormal operation or indicator does not light up.

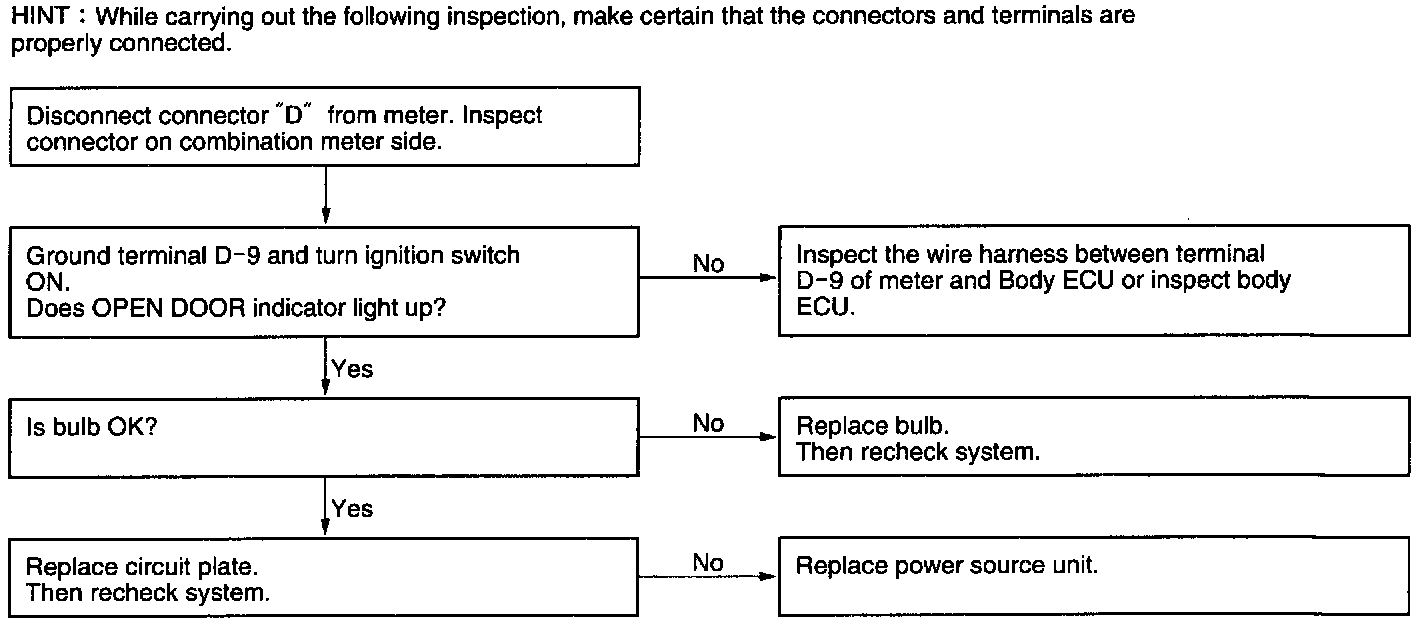

OPEN DOOR INDICATOR

21. Abnormal operation or indicator does not light up.

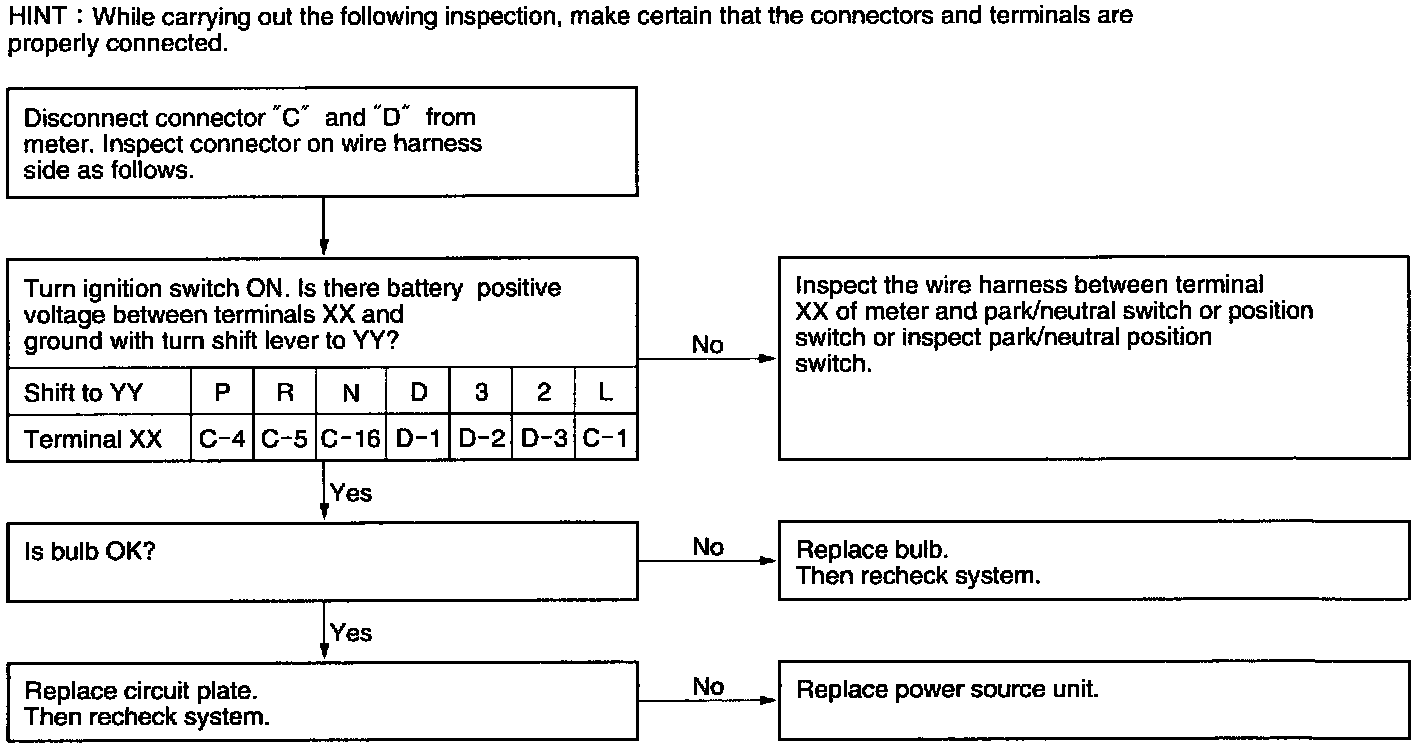

SHIFT POSITION INDICATOR

22. Abnormal operation or indicator does not light up.

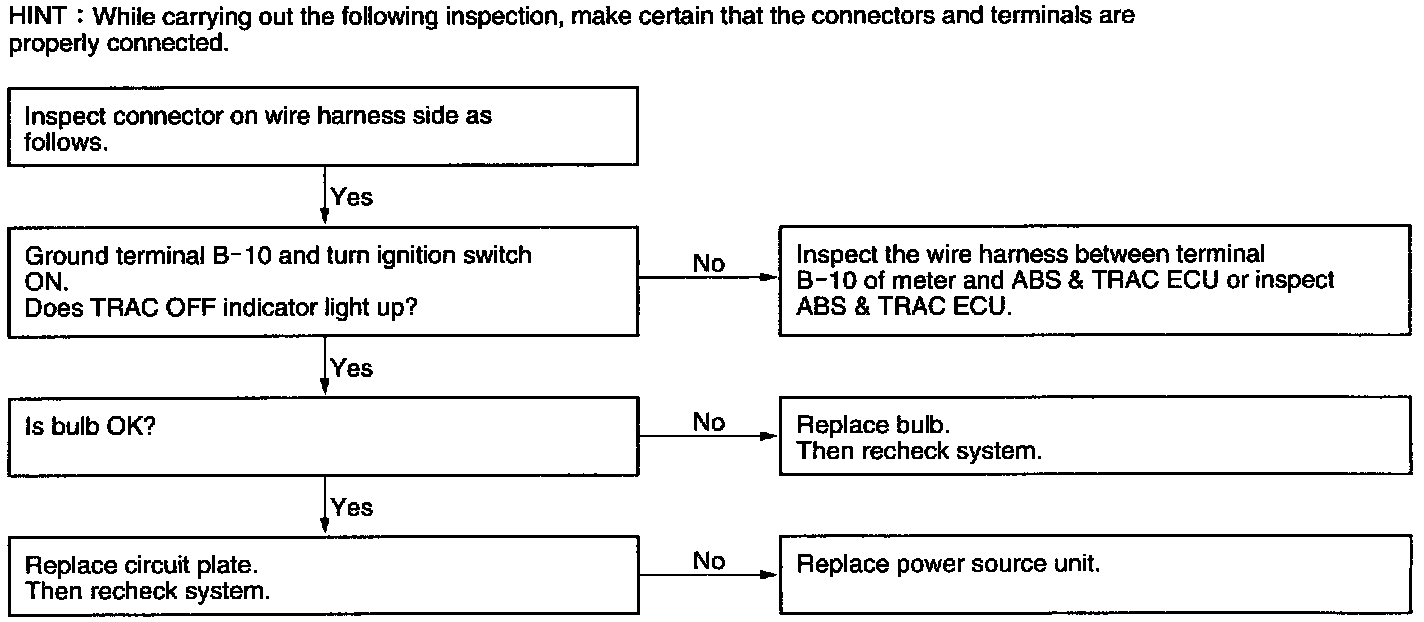

TRAC OFF INDICATOR

23. Abnormal operation or indicator does not light up.

ABS WARNING

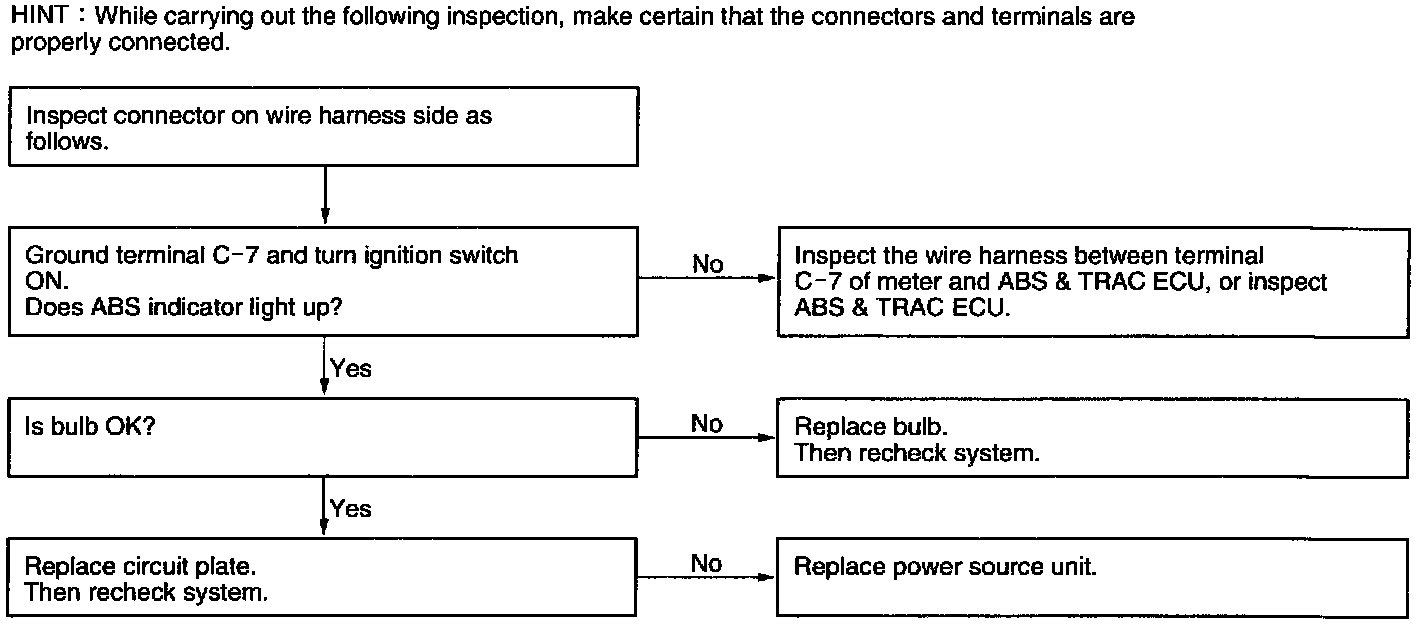

24. Abnormal operation or warning light does not light up.

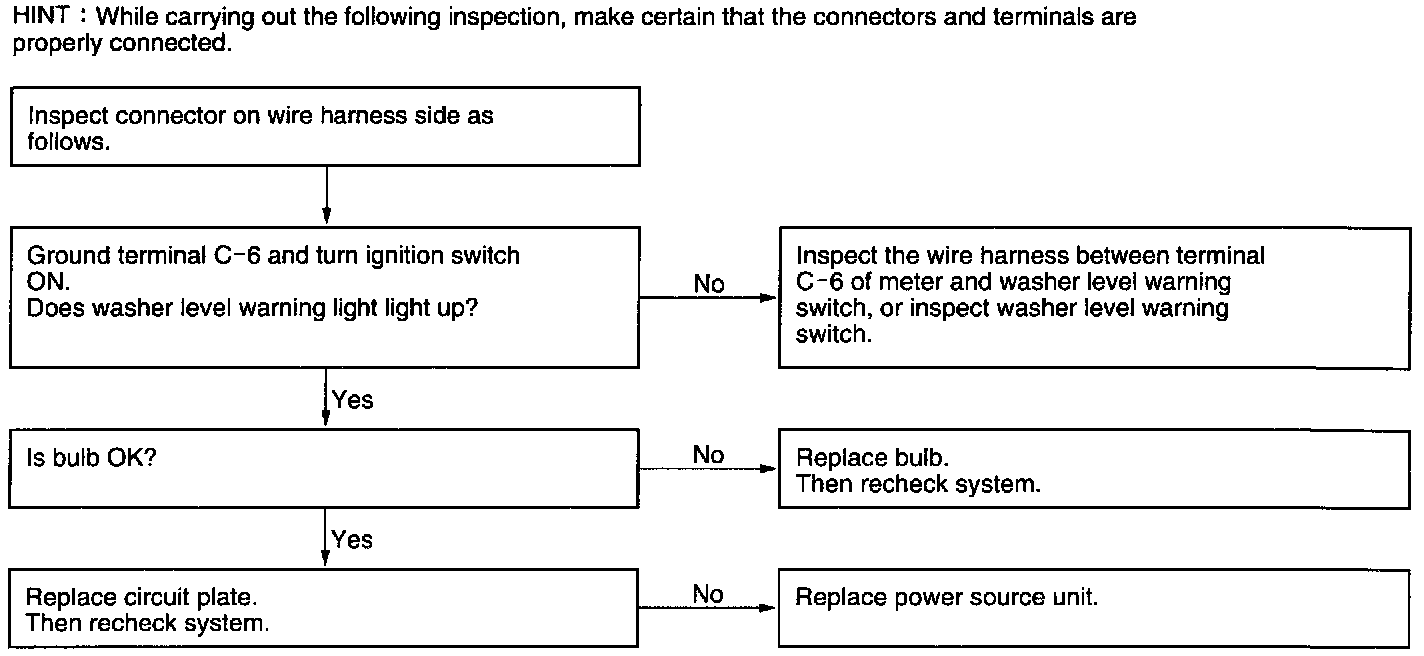

WASHER LEVEL WARNING

25. Abnormal operation or warning light does not light up.

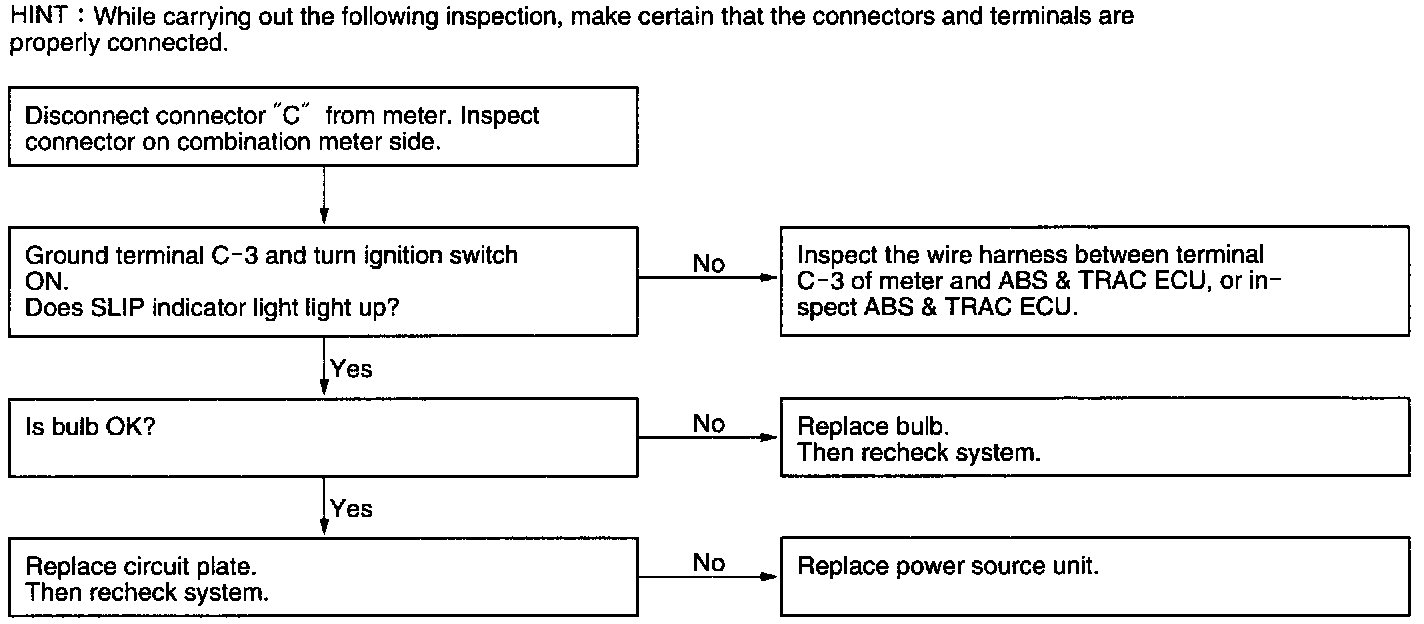

SLIP INDICATOR

26. Abnormal operation or indicator does not light up.

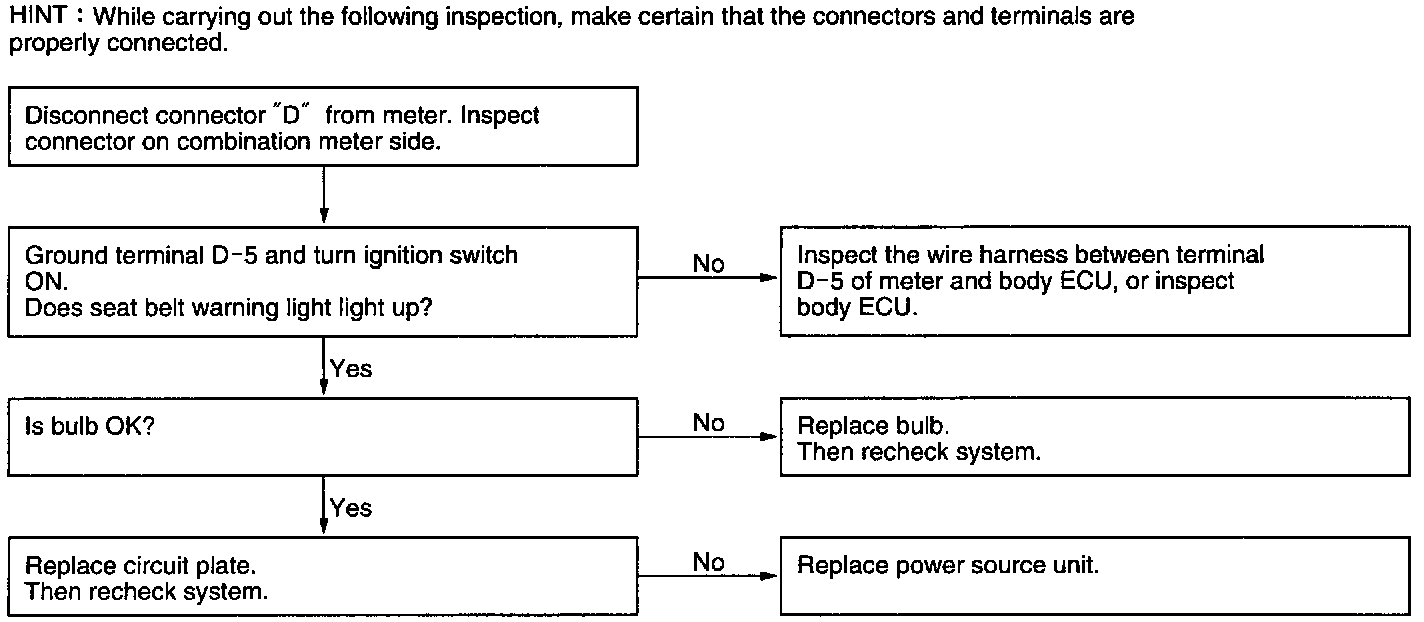

SEAT BELT WARNING

27. Abnormal operation or warning light dose not light up.

MALFUNCTION INDICATOR

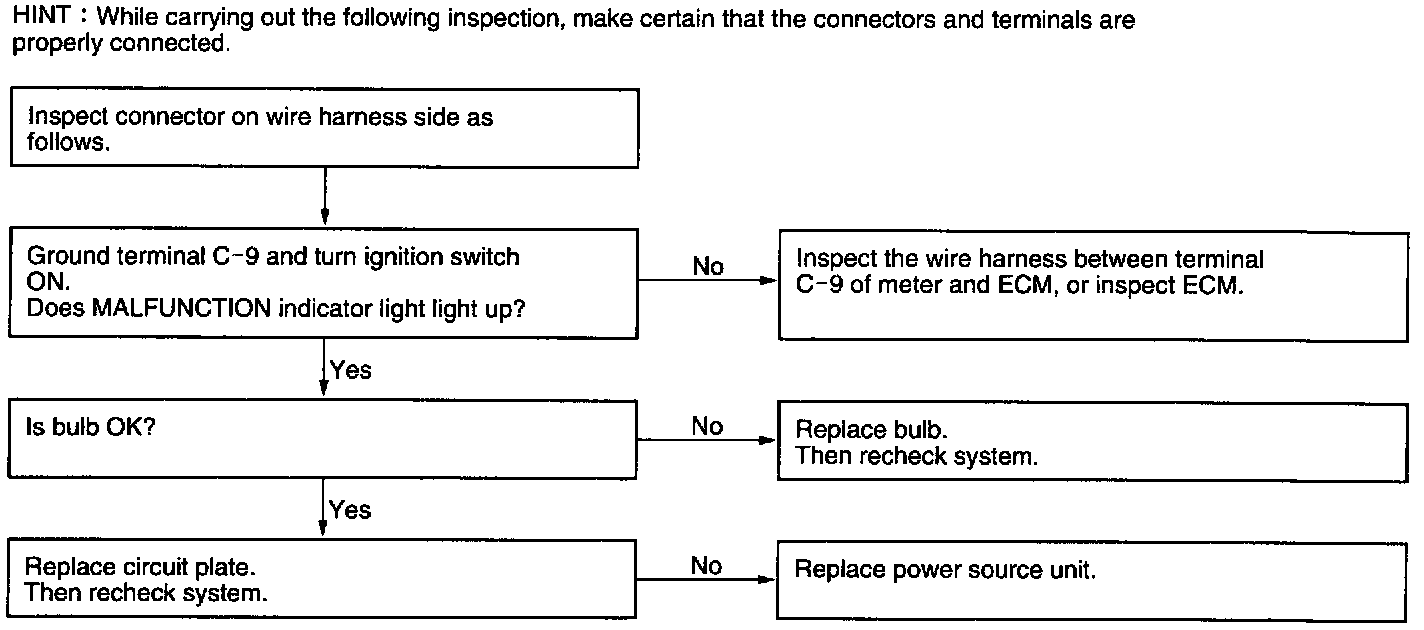

28. Abnormal operation or indicator does not light up.

REAR LIGHTS WARNING

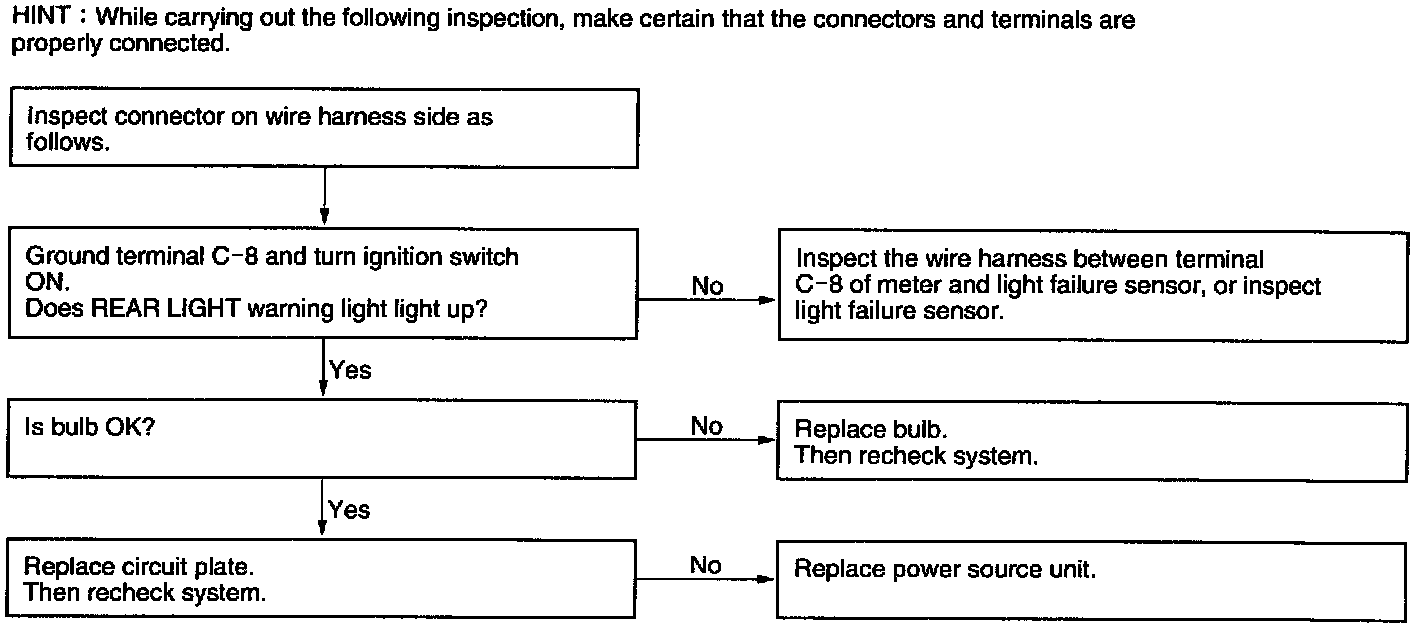

29. Abnormal operation or warning light does not light up.

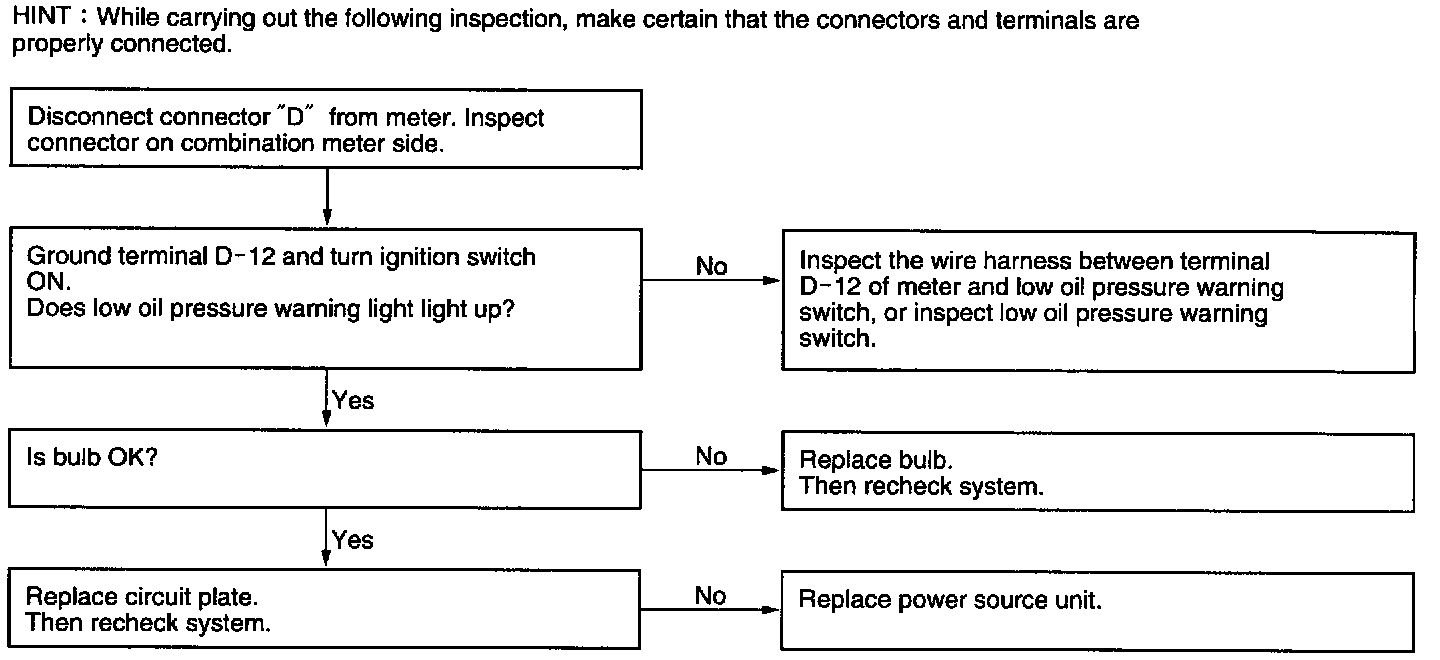

LOW OIL PRESSURE WARNING

30. Abnormal operation or warning light does not light up.

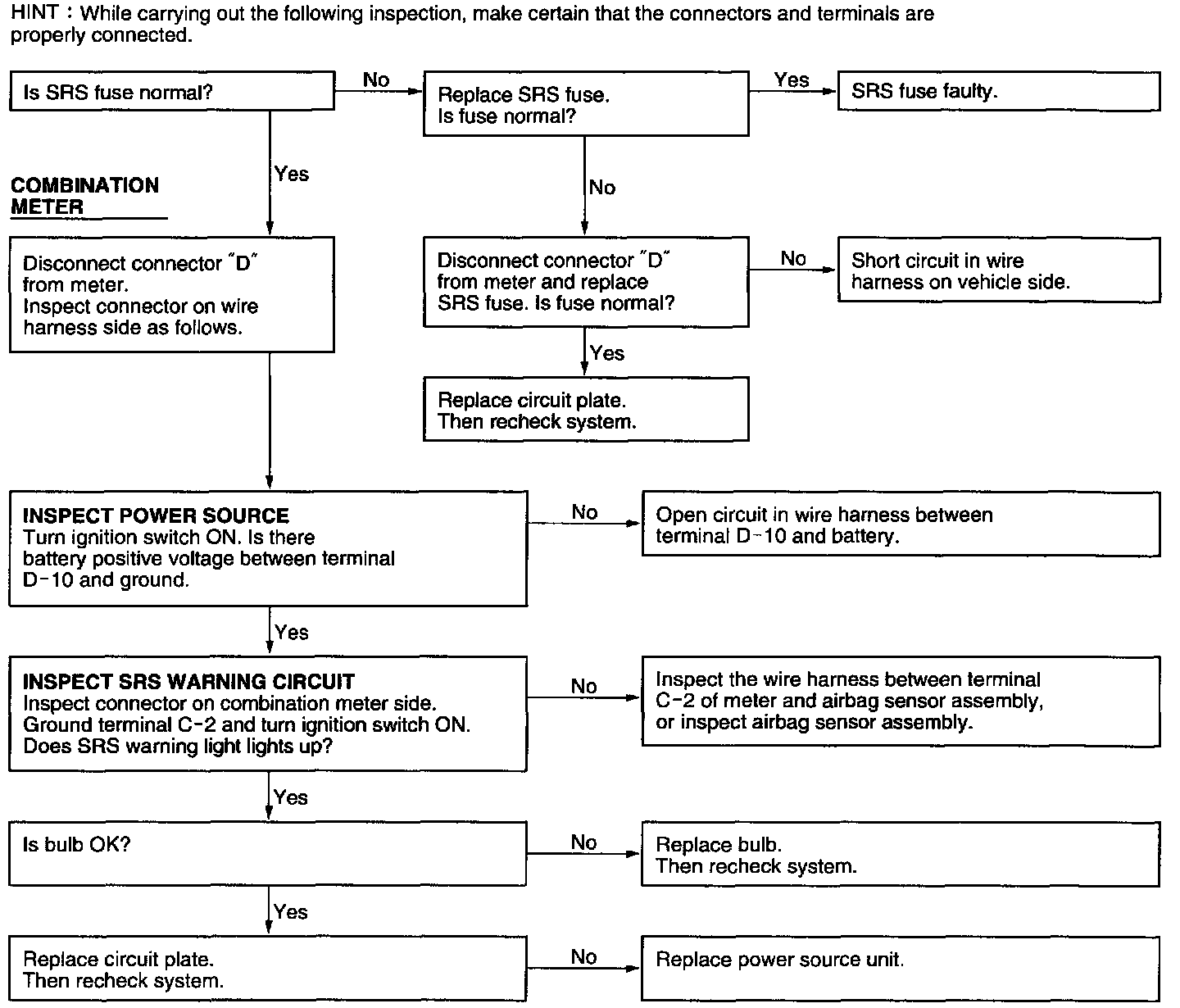

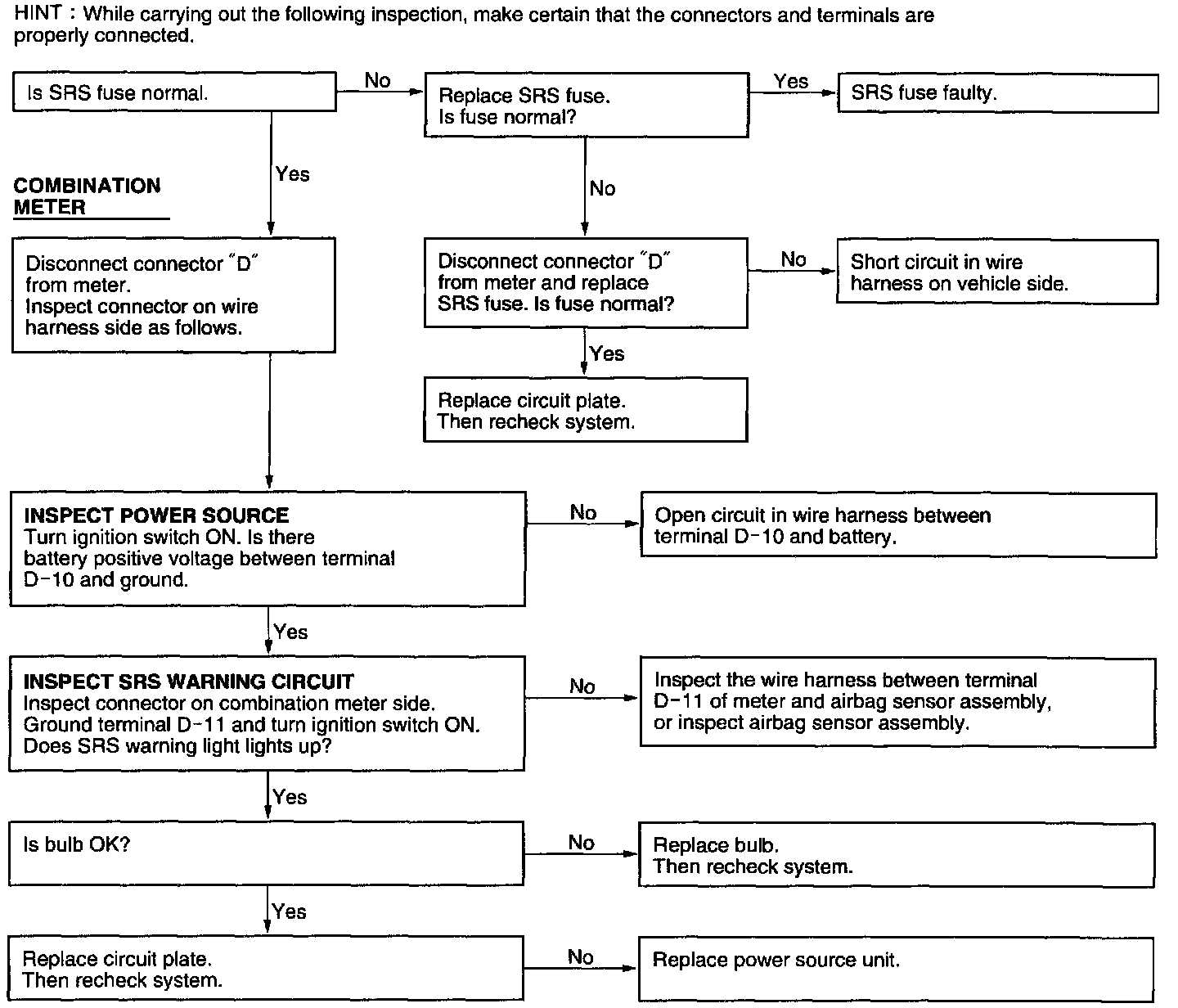

SRS WARNING

31. Abnormal operation or warning light does not light up.

SIDE AIRBAG WARNING

32. Abnormal operation or warning light does not light up.

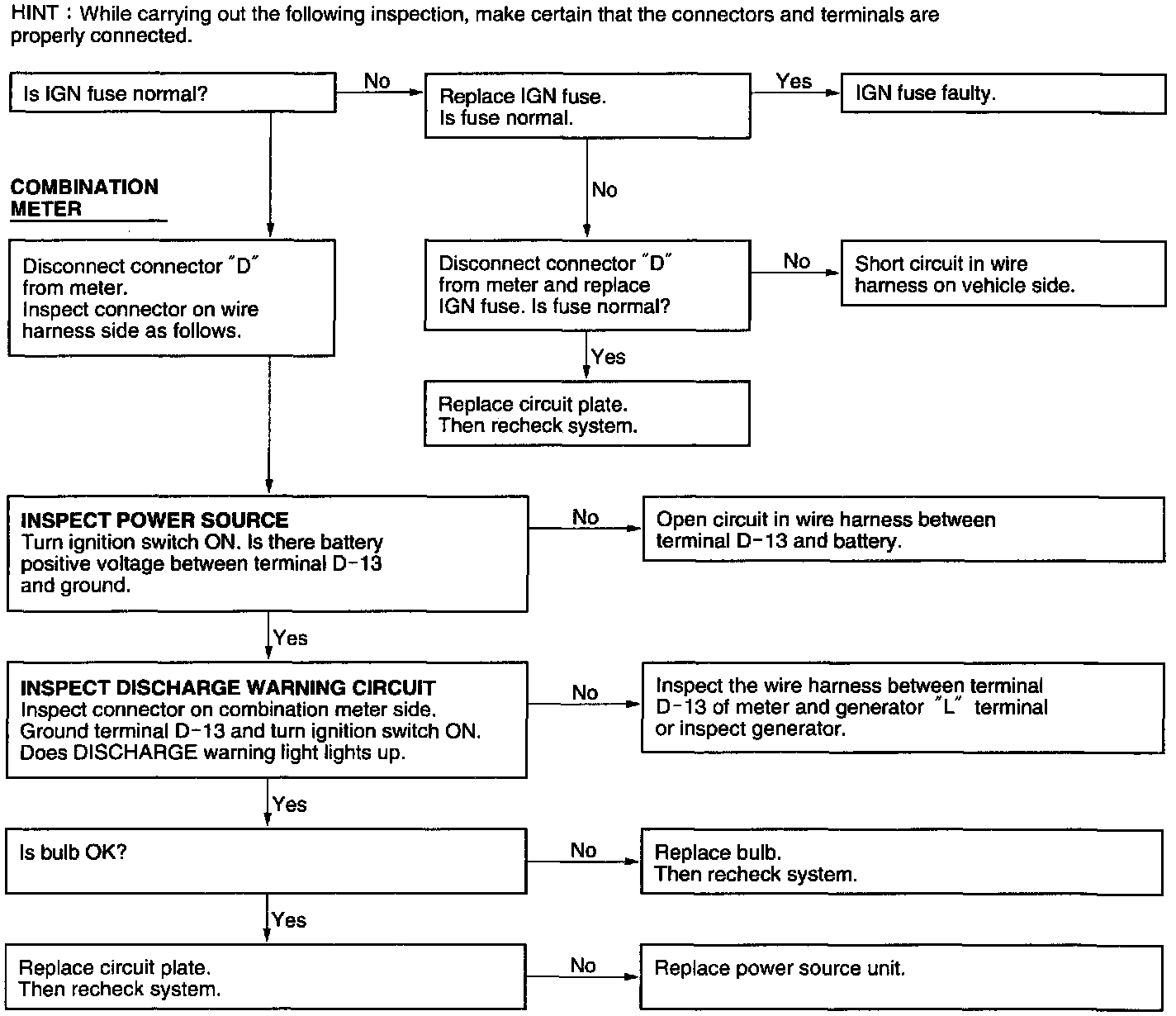

DISCHARGE WARNING

33. Abnormal operation or warning light does not light up.

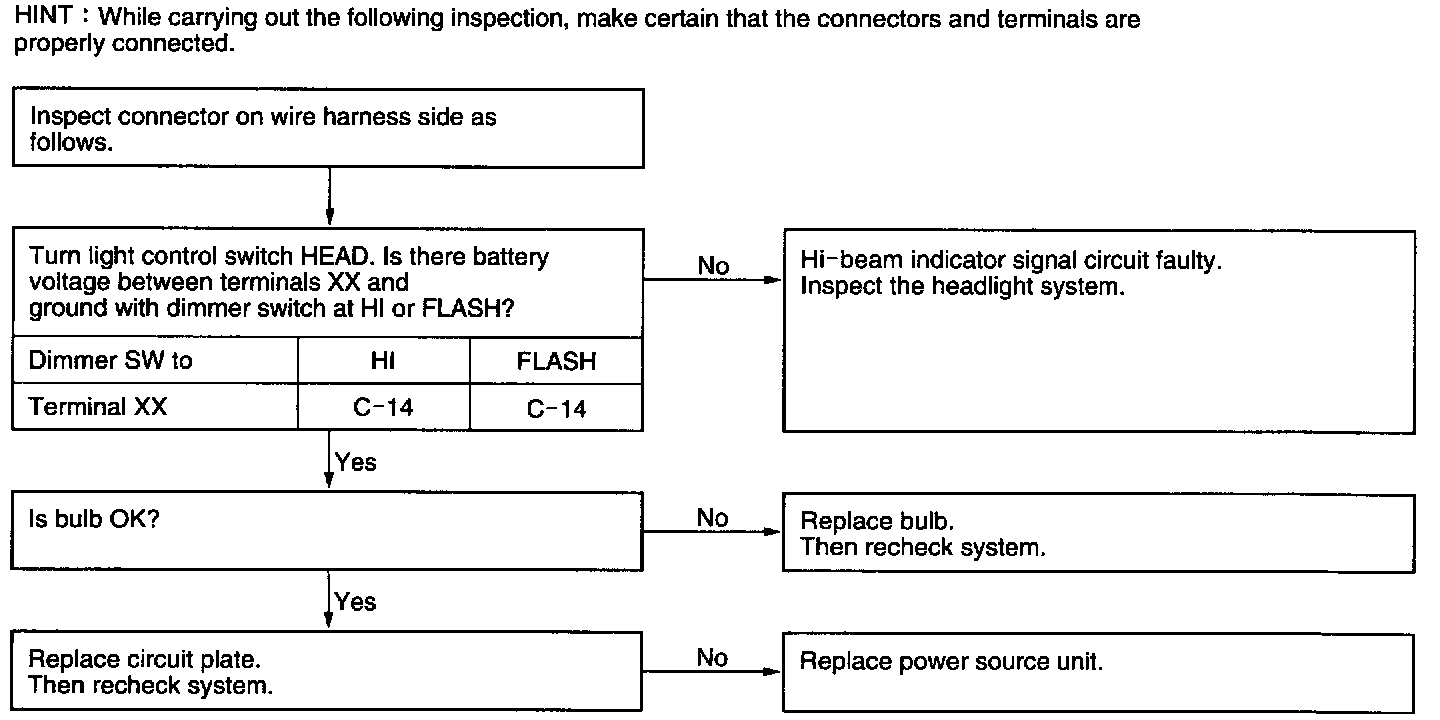

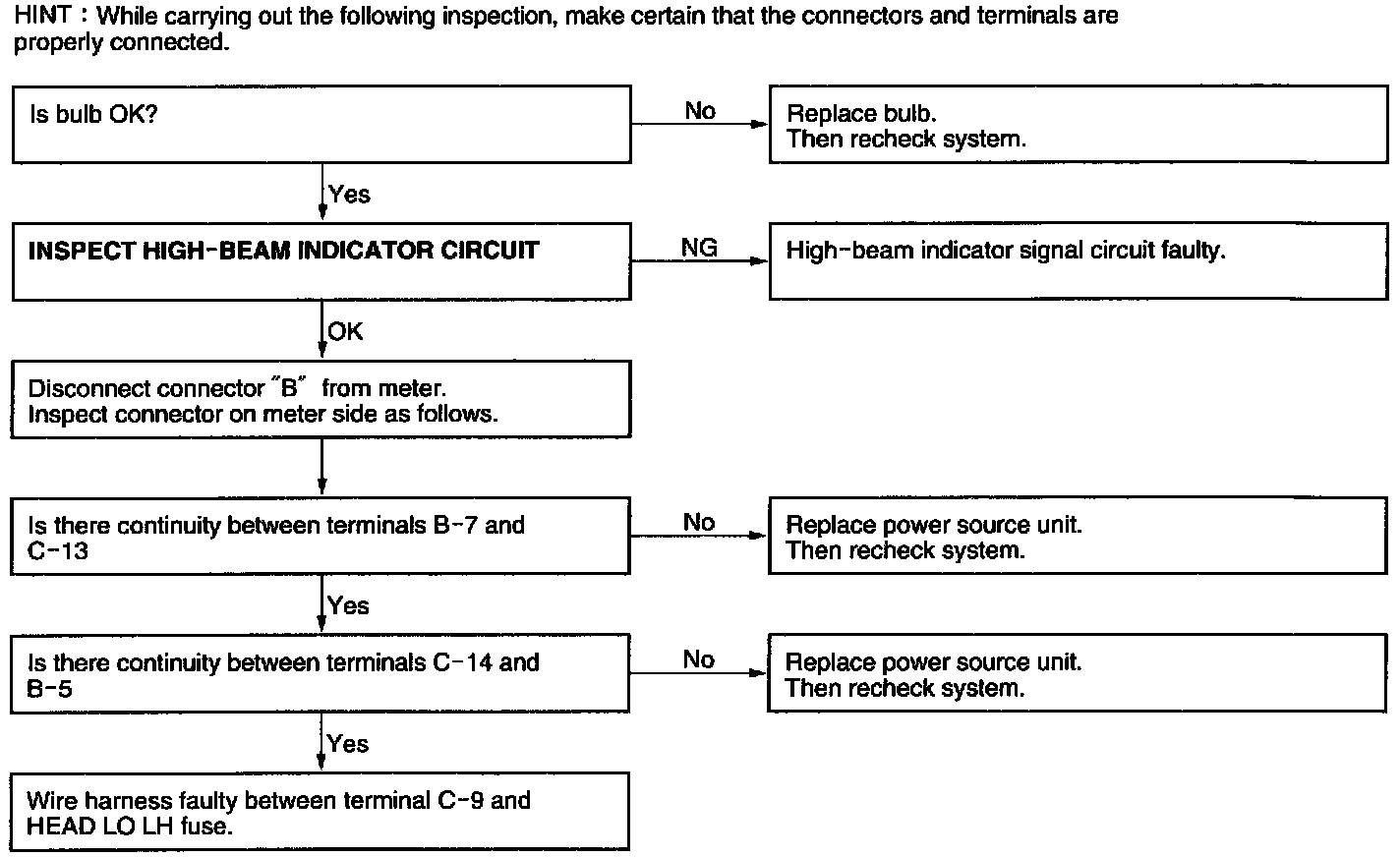

HI-BEAM INDICATOR

34. Abnormal operation or indicator does not light up.

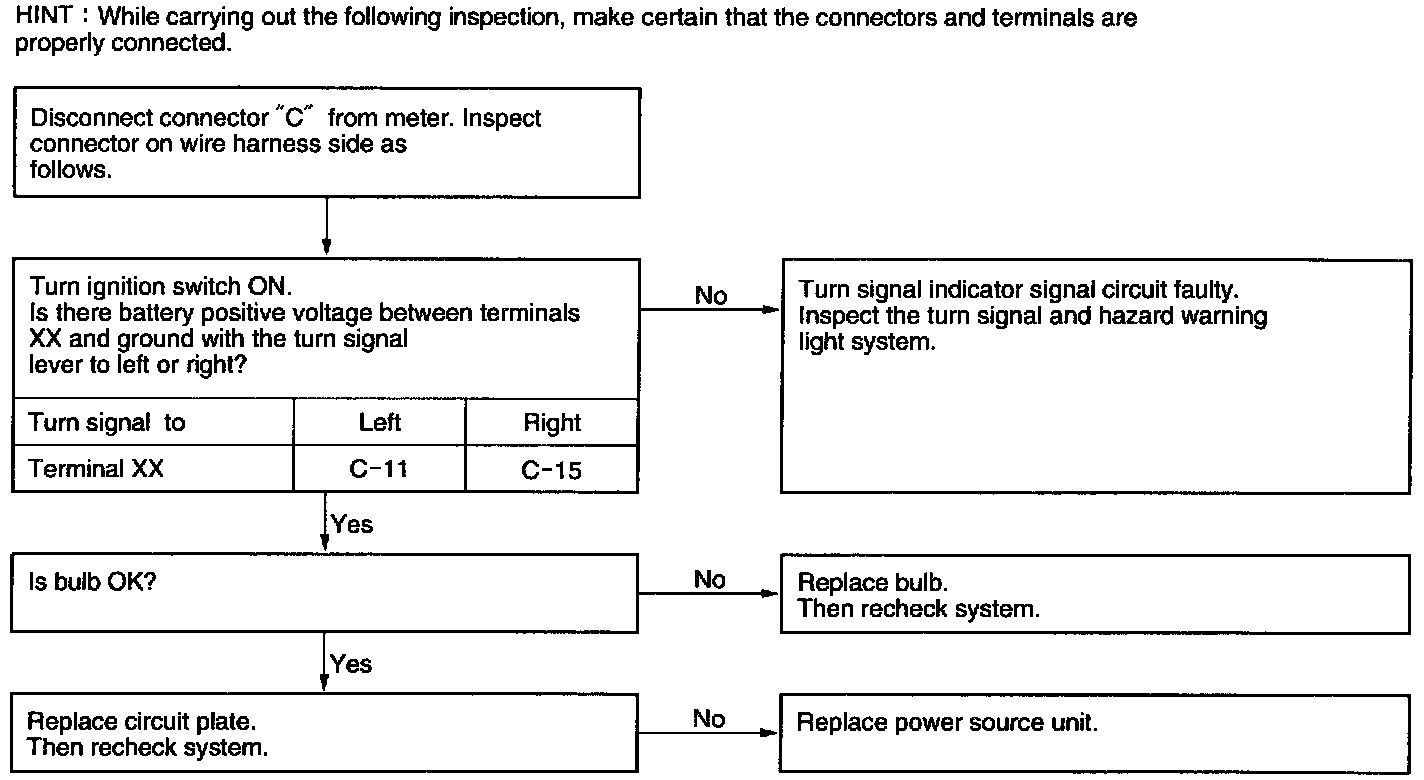

TURN SIGNAL INDICATOR

35. Abnormal operation or indicator does not light up.

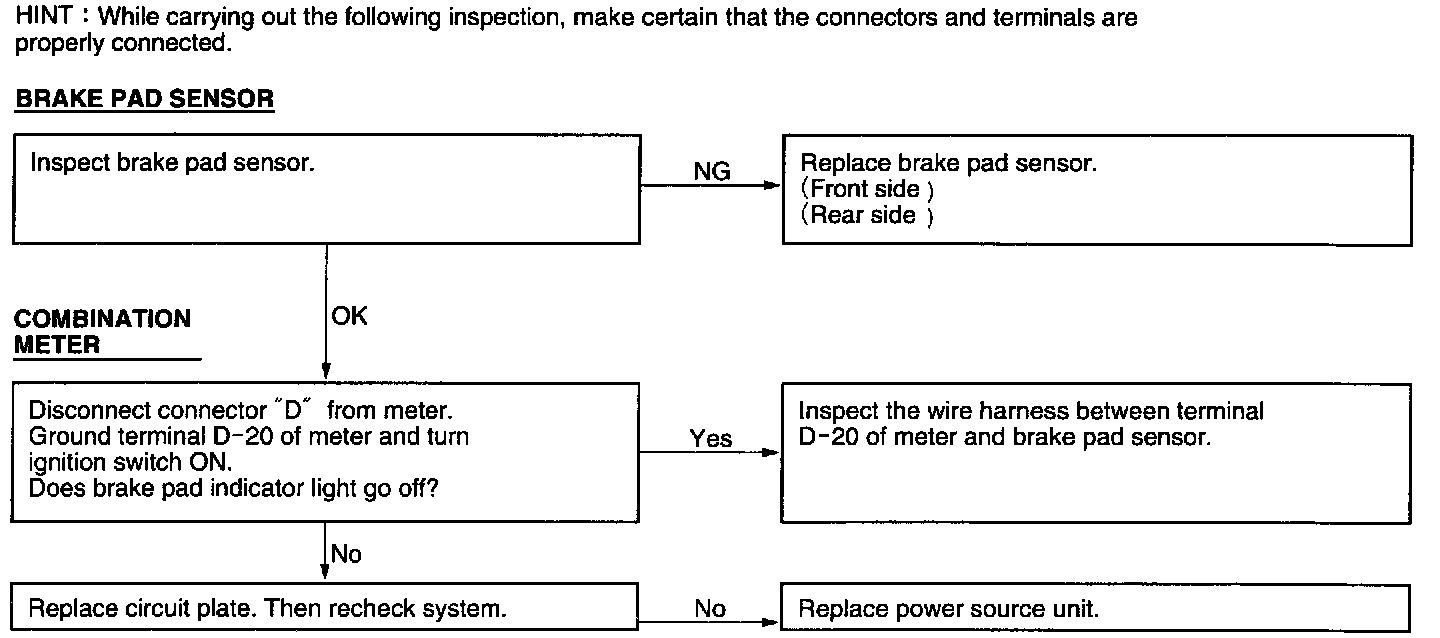

BRAKE PAD INDICATOR

36. Indicator light always light up.

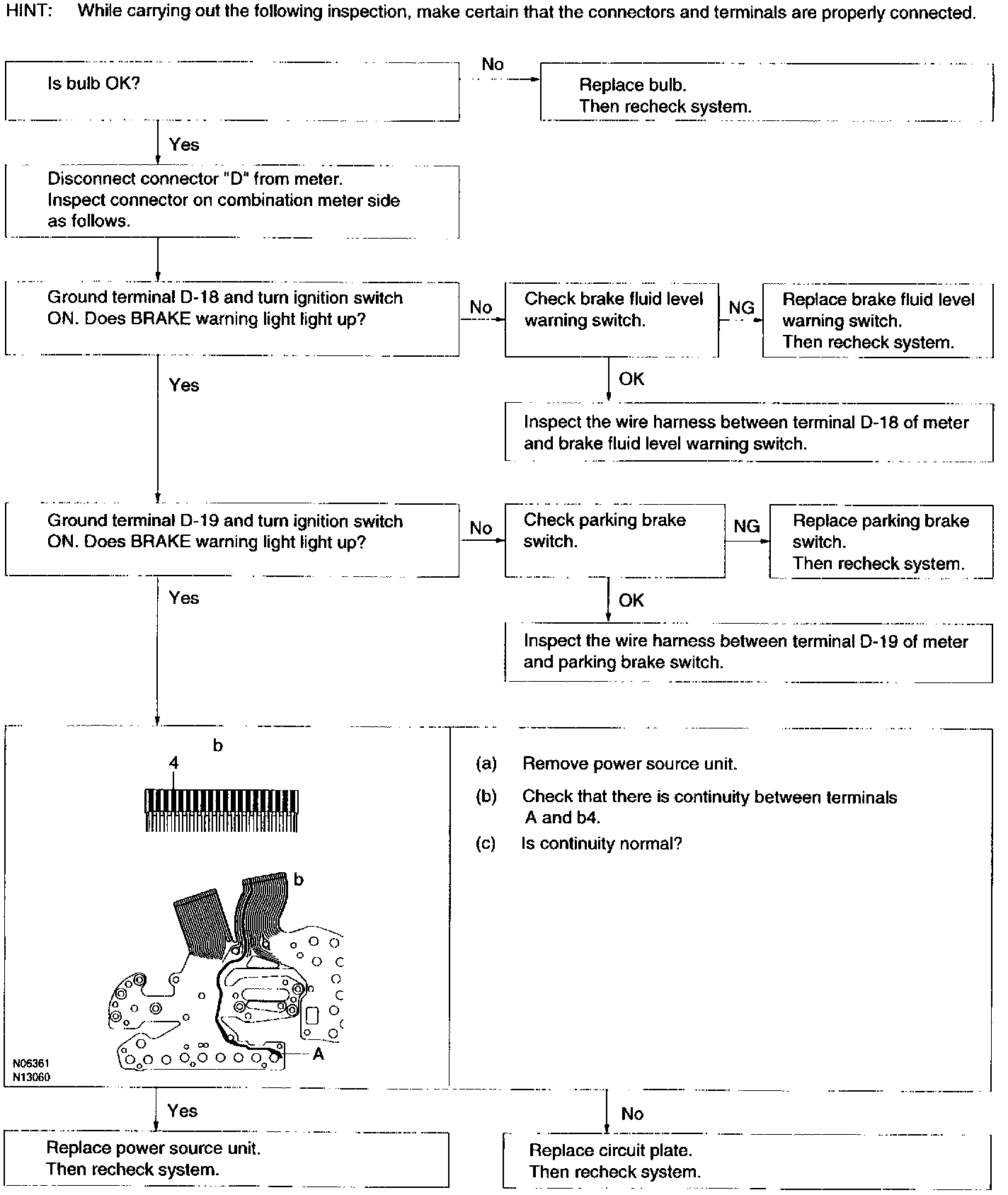

BRAKE WARNING

37. Warning light does not lights up.

HEADLIGHT INDICATOR

38. Indicator does not light up when light control switch is HI or FLASH.
