Combination Meter Illumination

METER ILLUMINATION INSPECTION

1. INSPECT RHEOSTAT LIGHT CONTROL
Testing and Inspection

2. INSPECT COMBINATION METER ILLUMINATION

NOTE:
To avoid damage to the computer. be careful of the following.
^ Do not make an error with another terminal number.
^ Do not cause a short with another terminal. Connect the connectors "P", "Q" and "H".

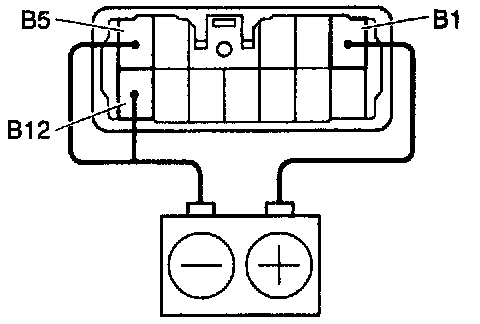

Lights up




a .Connect the positive (+) lead from battery to terminal B1 and the negative (-) lead to terminals B5 and B12.
b. Check that the illumination light up.

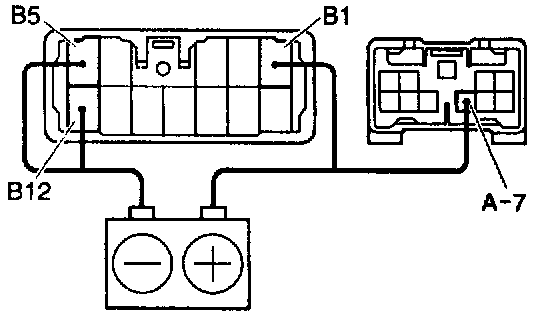

Brightness change




a. Connect the positive (+) lead from battery to terminal B7, A7 and negative (-) lead to terminals B5 and B7 2.
b. Check that the illumination brightness changes from bright to dark.
