Combination Meter

COMBINATION METER INSPECTION





INSPECT COMBINATION METER WIRING CIRCUIT

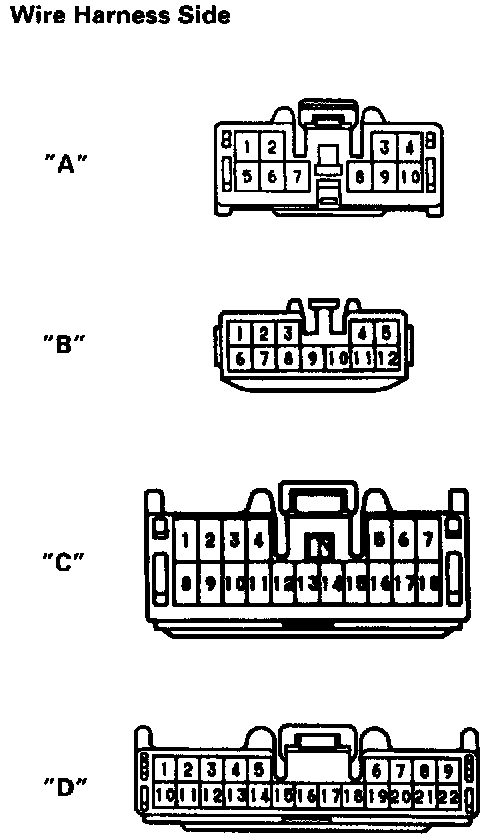

Disconnect connector A. connector B, connector C and connector D from the combination meter and inspect the connectors on the wire harness side as follows.

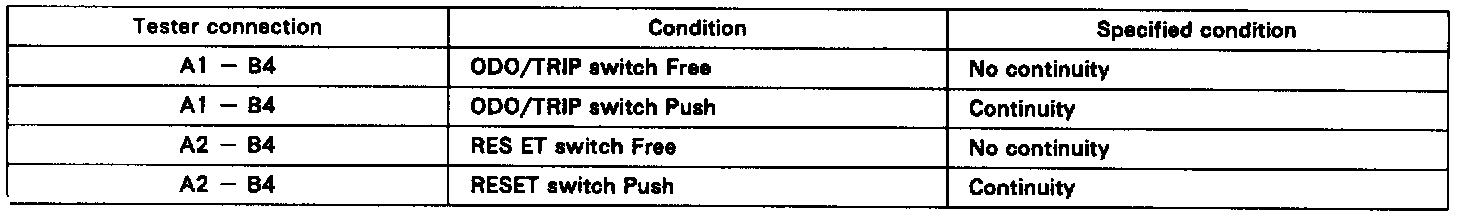

Twin trip and odo switch





DOME fuse

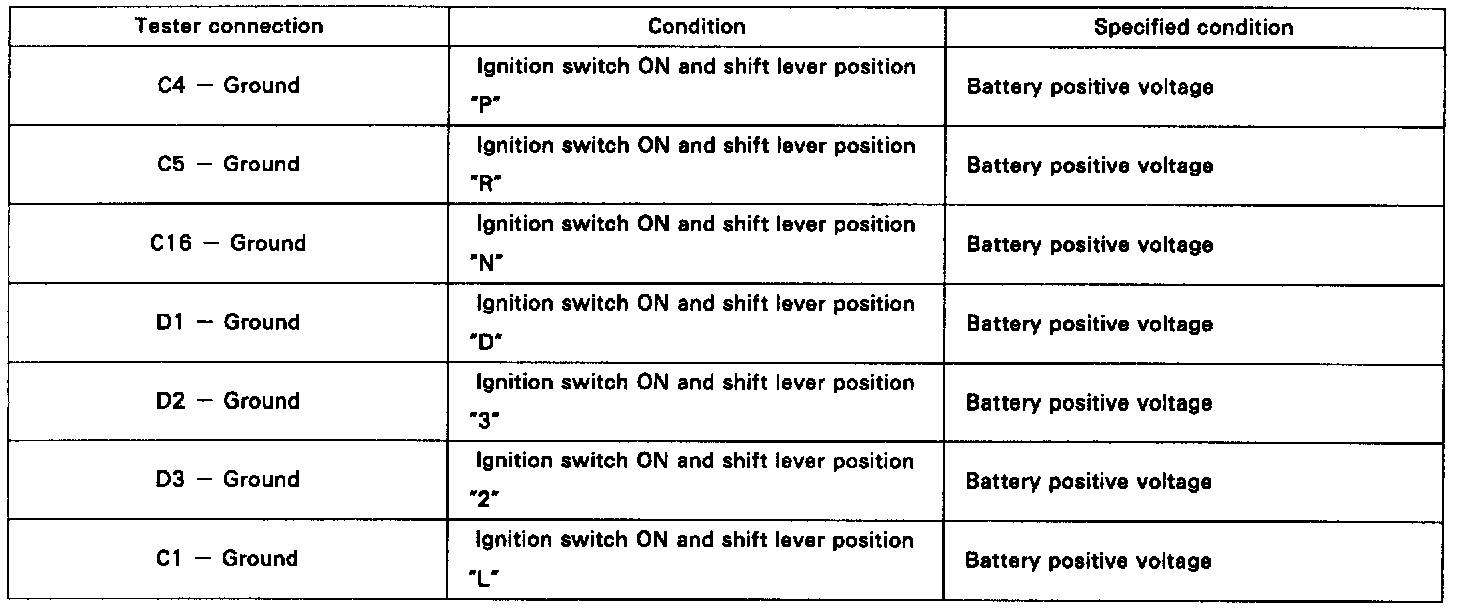

Park/Neutral Position Switch

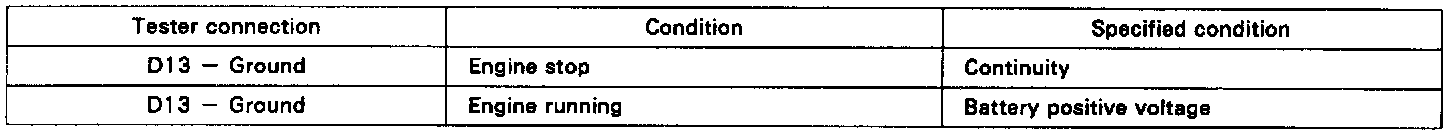

Generator L Terminal

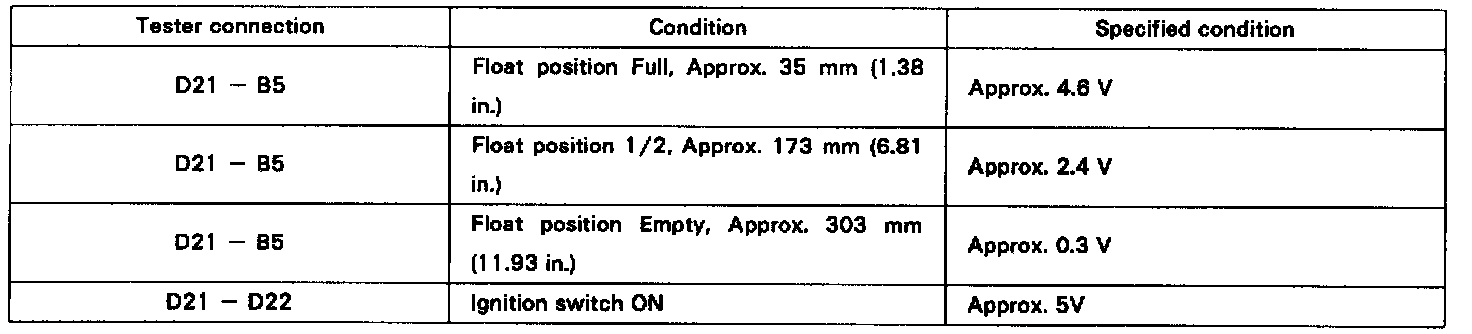

Fuel Sender Gauge

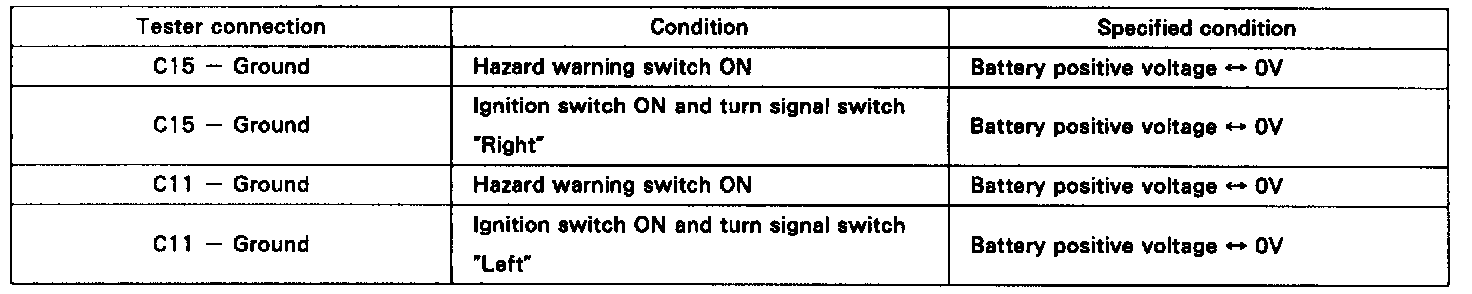

Turn Signal Switch and Hazard Warning Switch

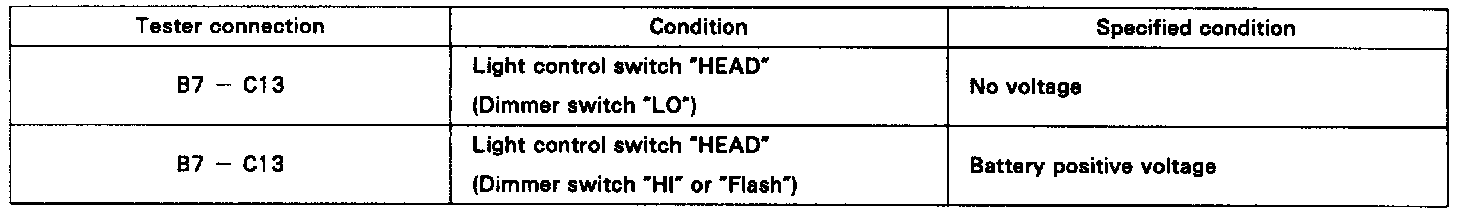

Headlight





Igniter

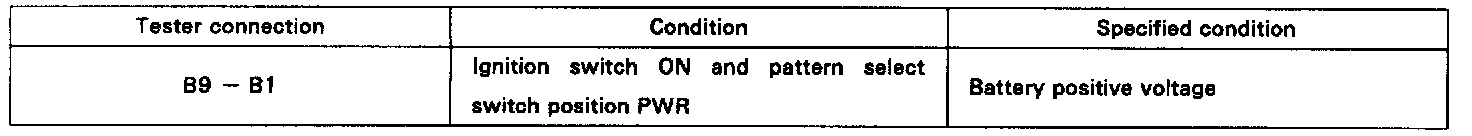

Pattern Select Switch

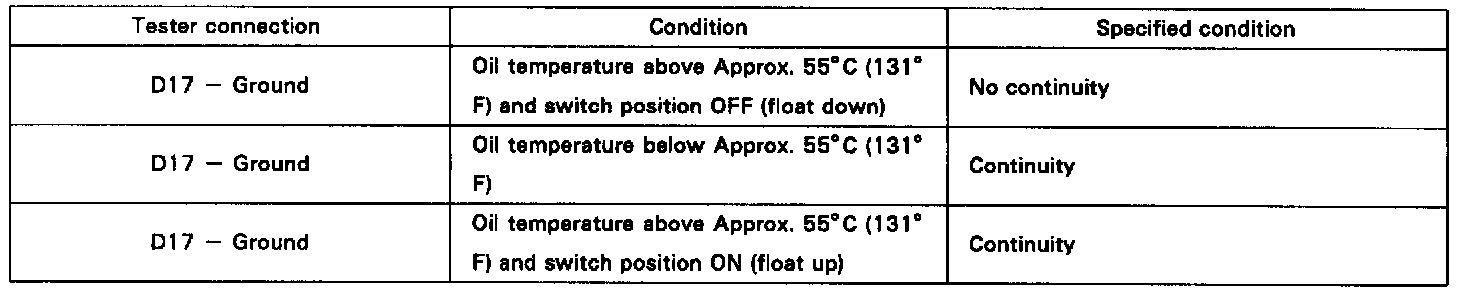

Engine Oil Level Warning Switch

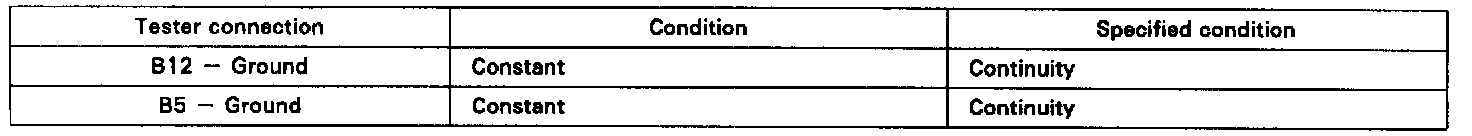

Ground





GAUGE Fuse

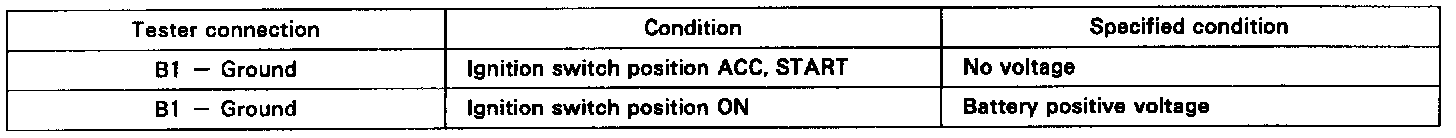

PWR-IG Fuse

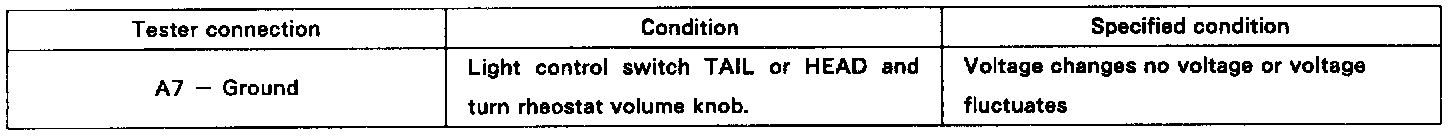

Rheostat Light Control

*2 Shift lever position is "N" or "P" position.
