Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Testing and Inspection
Clock: Testing and Inspection
TROUBLESHOOTING
HINT:
Troubleshoot the clock according to the table below.
Clock will not operate
1
Clock loses or gains time
2
1.
CLOCK WILL NOT OPERATE

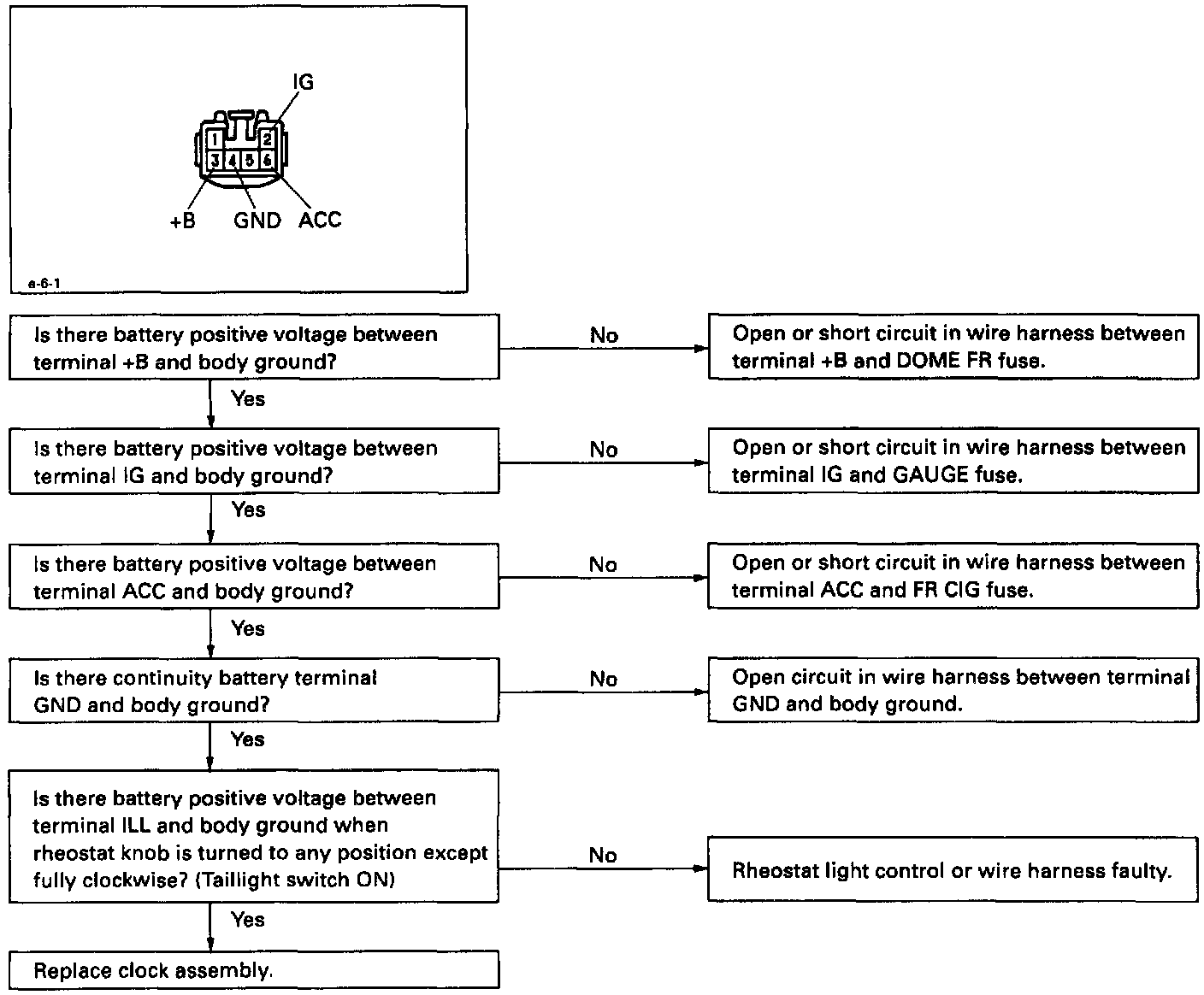

2.
CLOCK LOSES OR GAINS TIME
