Inspection of Refrigerant Volume

REFRIGERANT VOLUME INSPECTION





1. SET VEHICLE IN THESE CONDITIONS:
a. Run engine at approx. 1,500 rpm
b. Fully open the doors

2. SET A/C CONTROL ASSEMBLY IN THESE CONDITIONS:
a. Temperature control switches MAX. COOL
b. Blower switch at "HI"
c. A/C switch ON





3. INSPECT AMOUNT OF REFRIGERANT

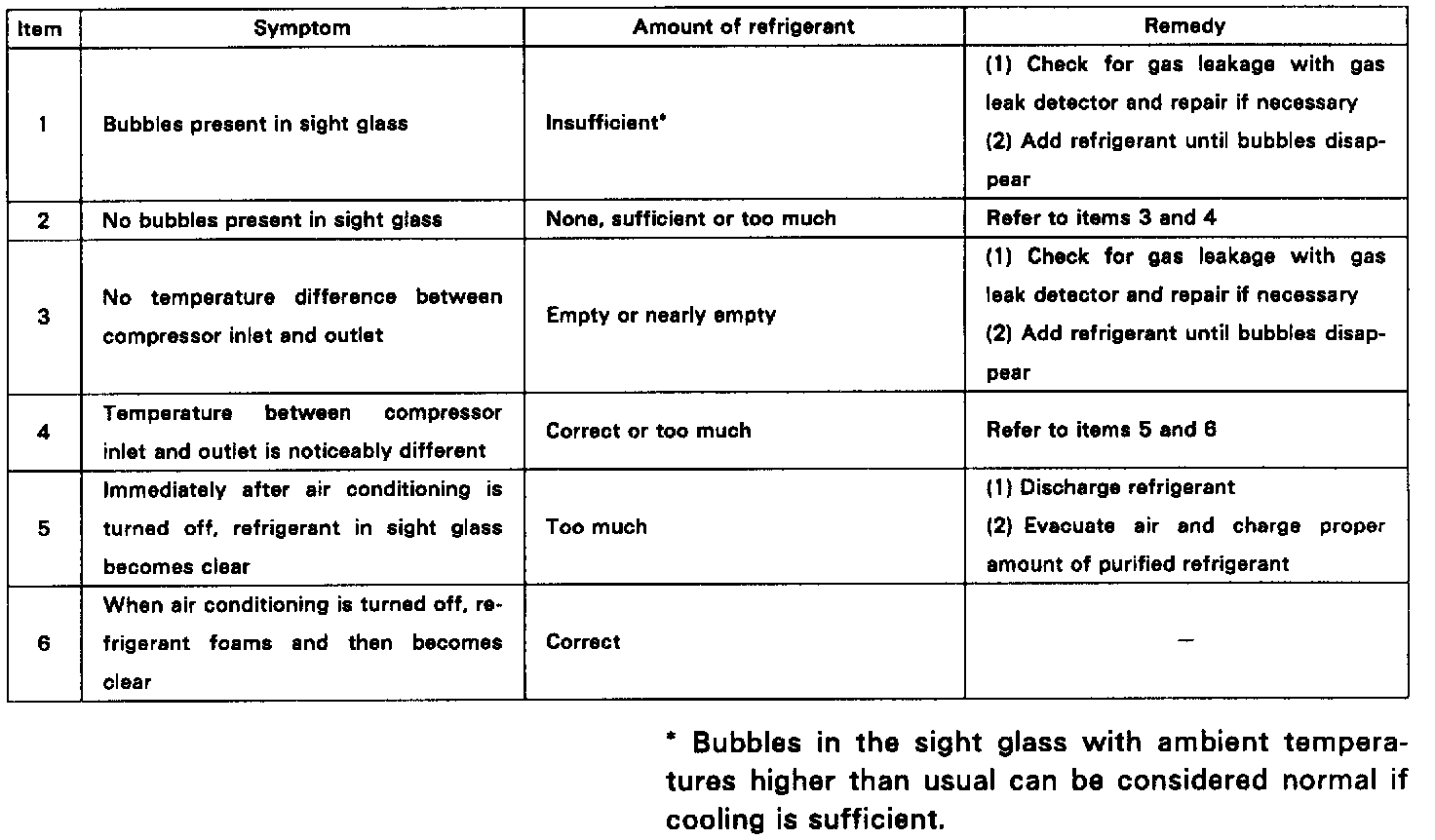

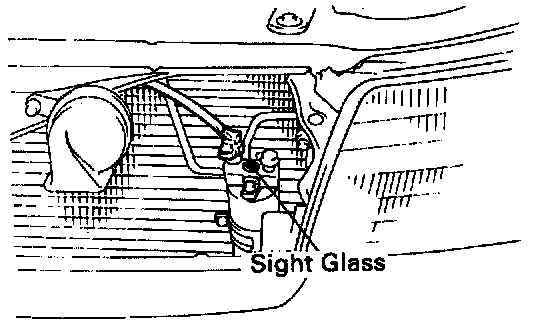

Observe the sight glass on the liquid tube.

REFRIGERANT CHARGE VOLUME
Specified amount:
700 g ± 50 g (29.69 ± 1.76 oz.)
