Water Valve Control Servomotor Circuit

Water Valve Control Servomotor Circuit

CIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly.

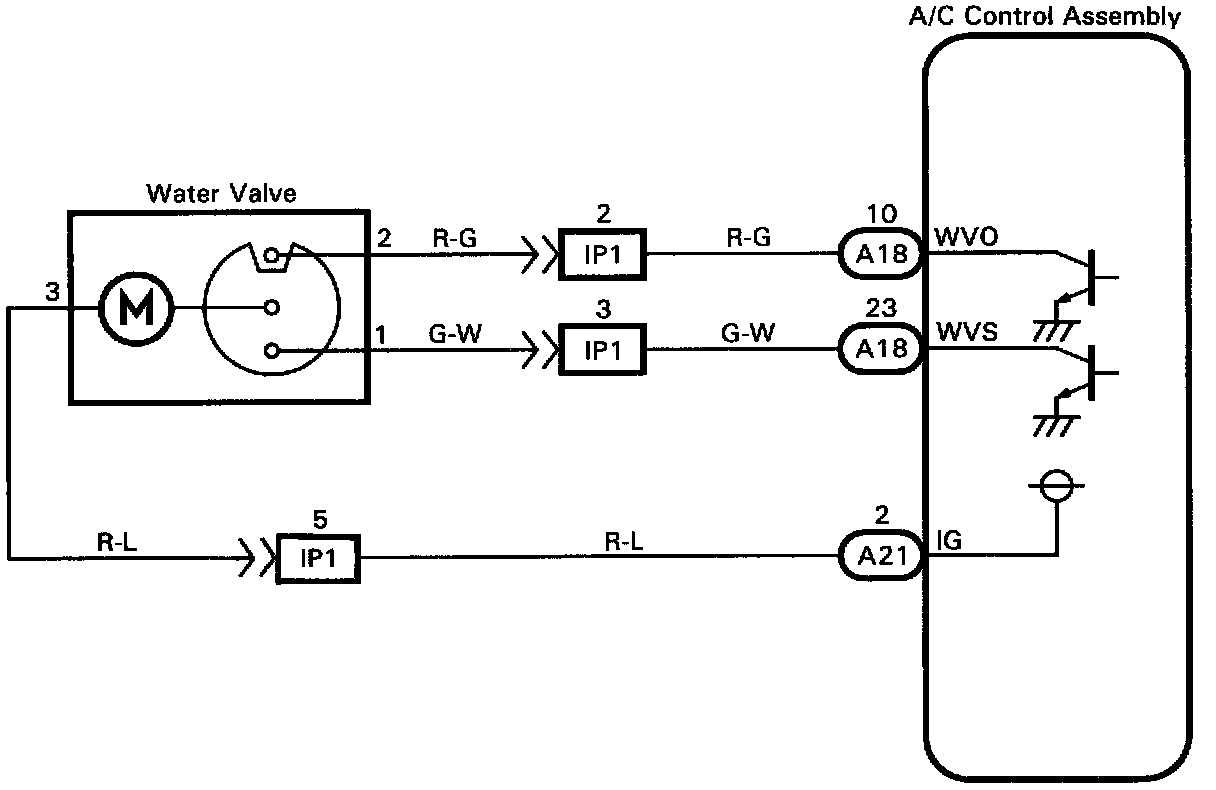

WIRING DIAGRAM

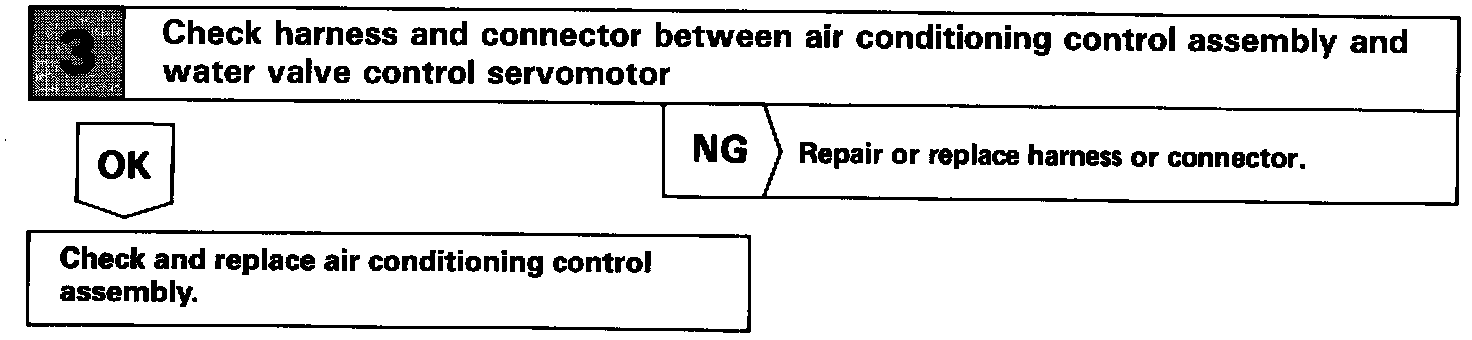

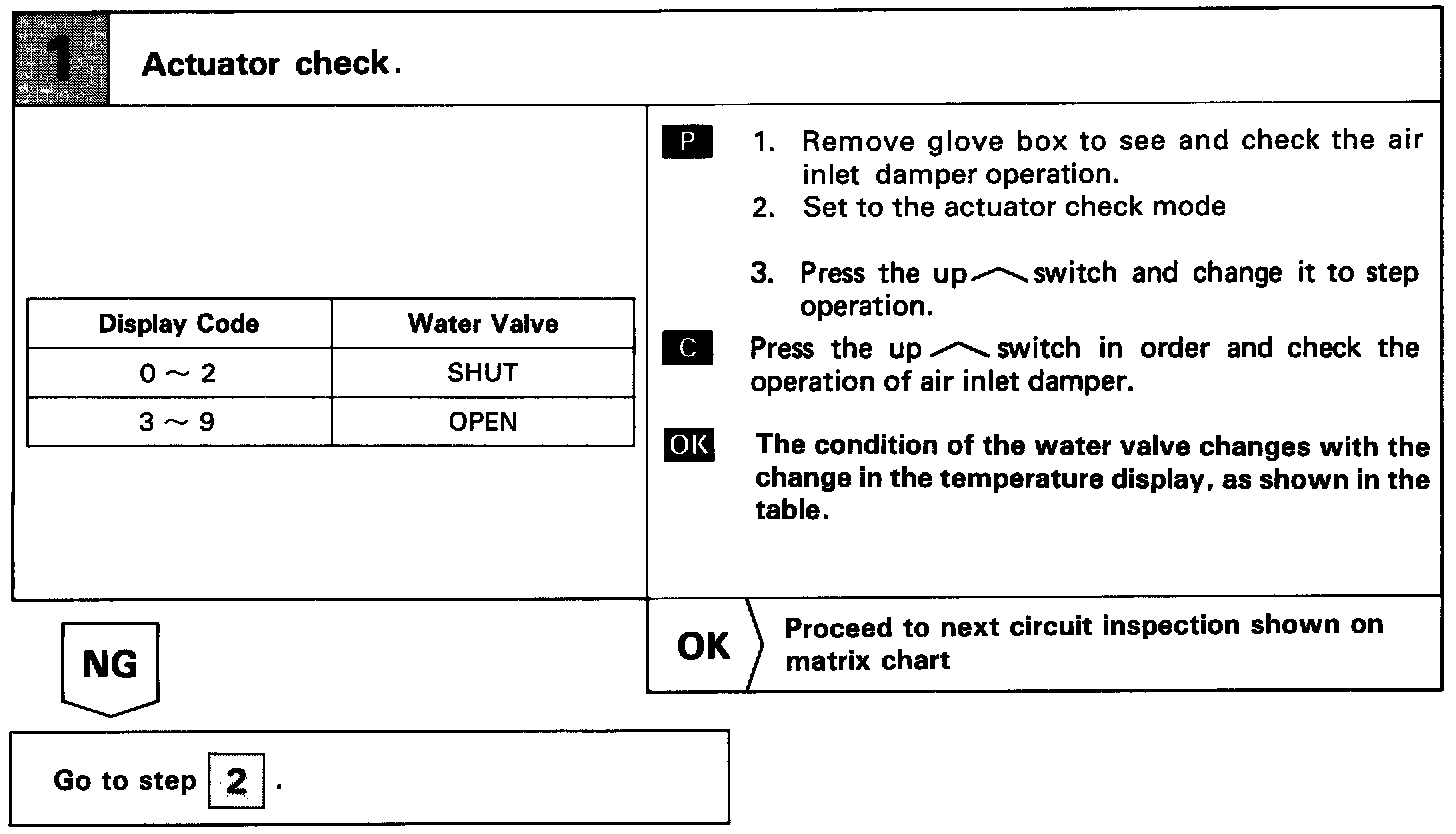

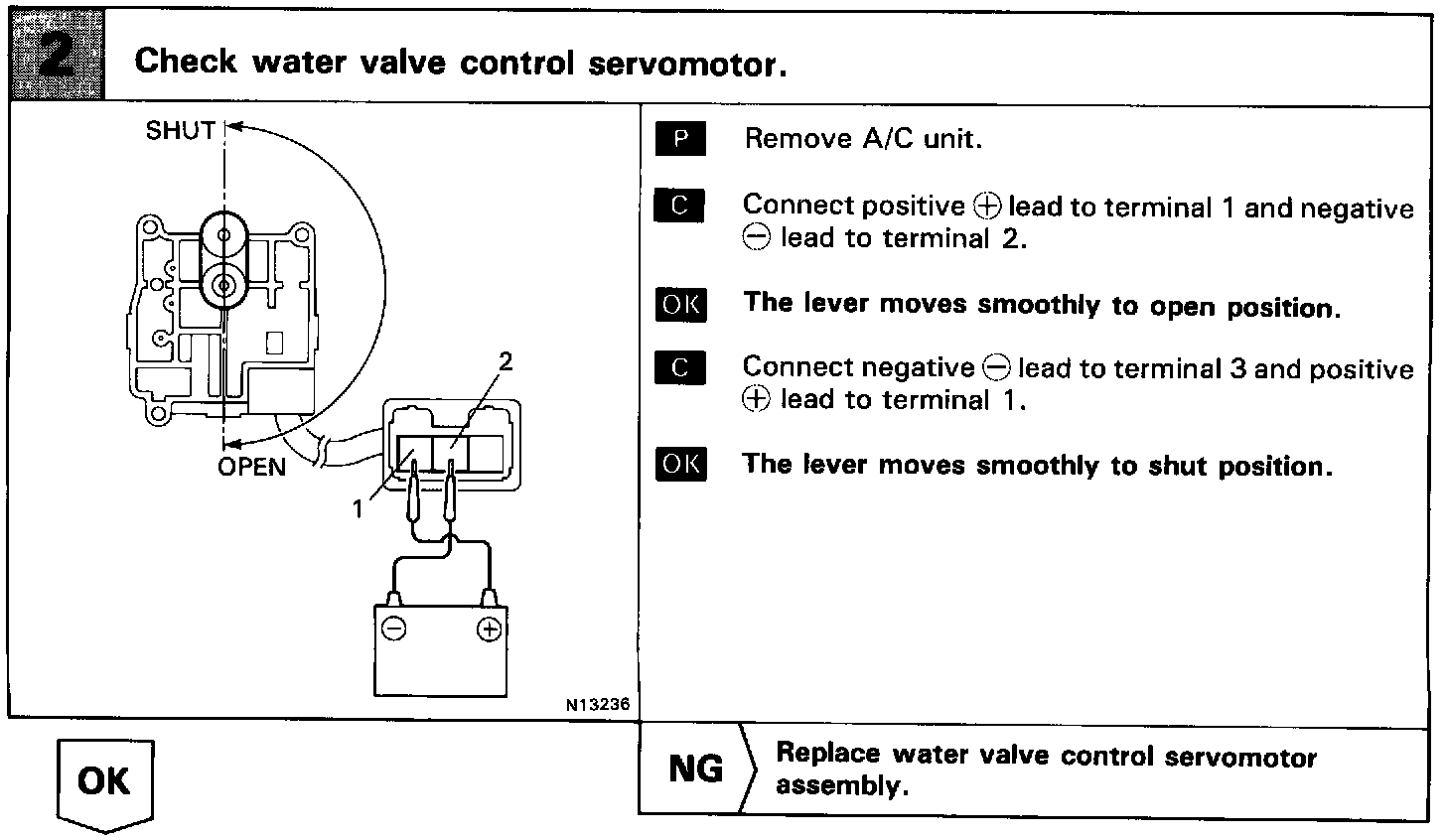

INSPECTION PROCEDURE
