Max Cool Damper Control Servomotor Circuit (Driver Side)
CIRCUIT DESCRIPTIONThe max cool servomotor is controlled by the A/C control assembly and moves the max cool damper to the desired position.

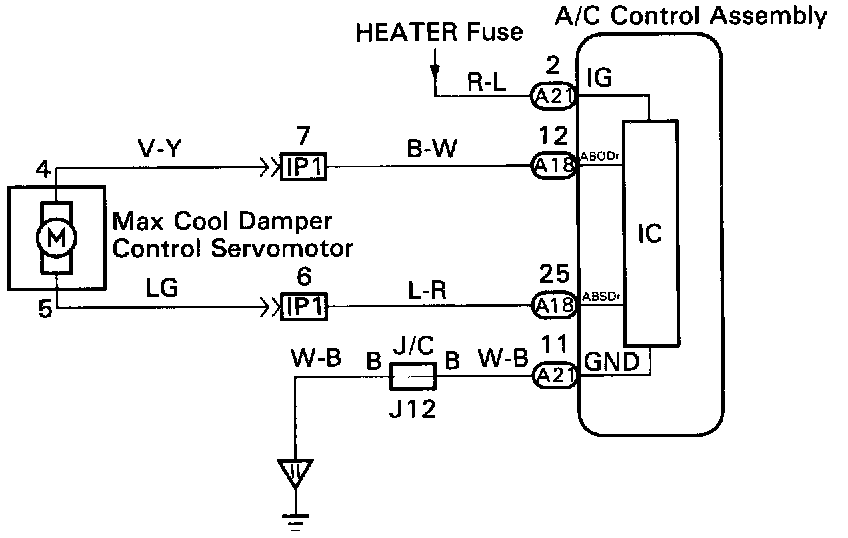

WIRING DIAGRAM

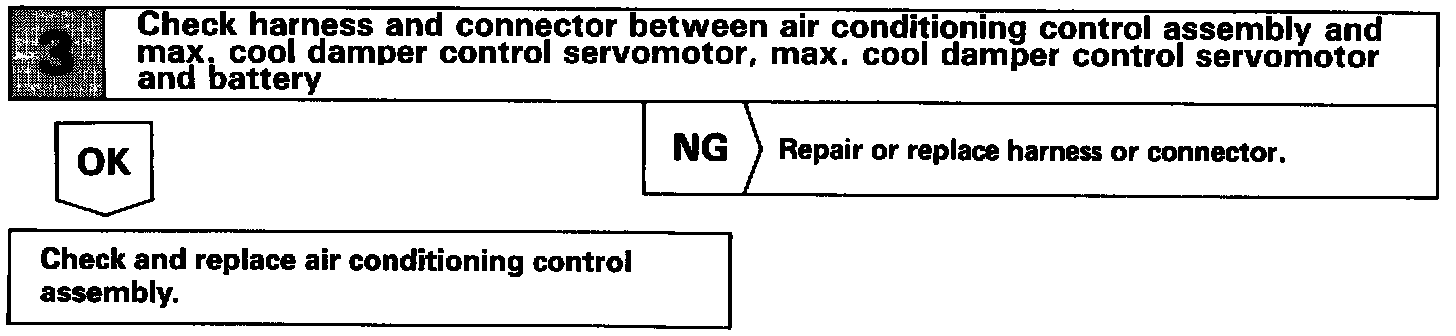

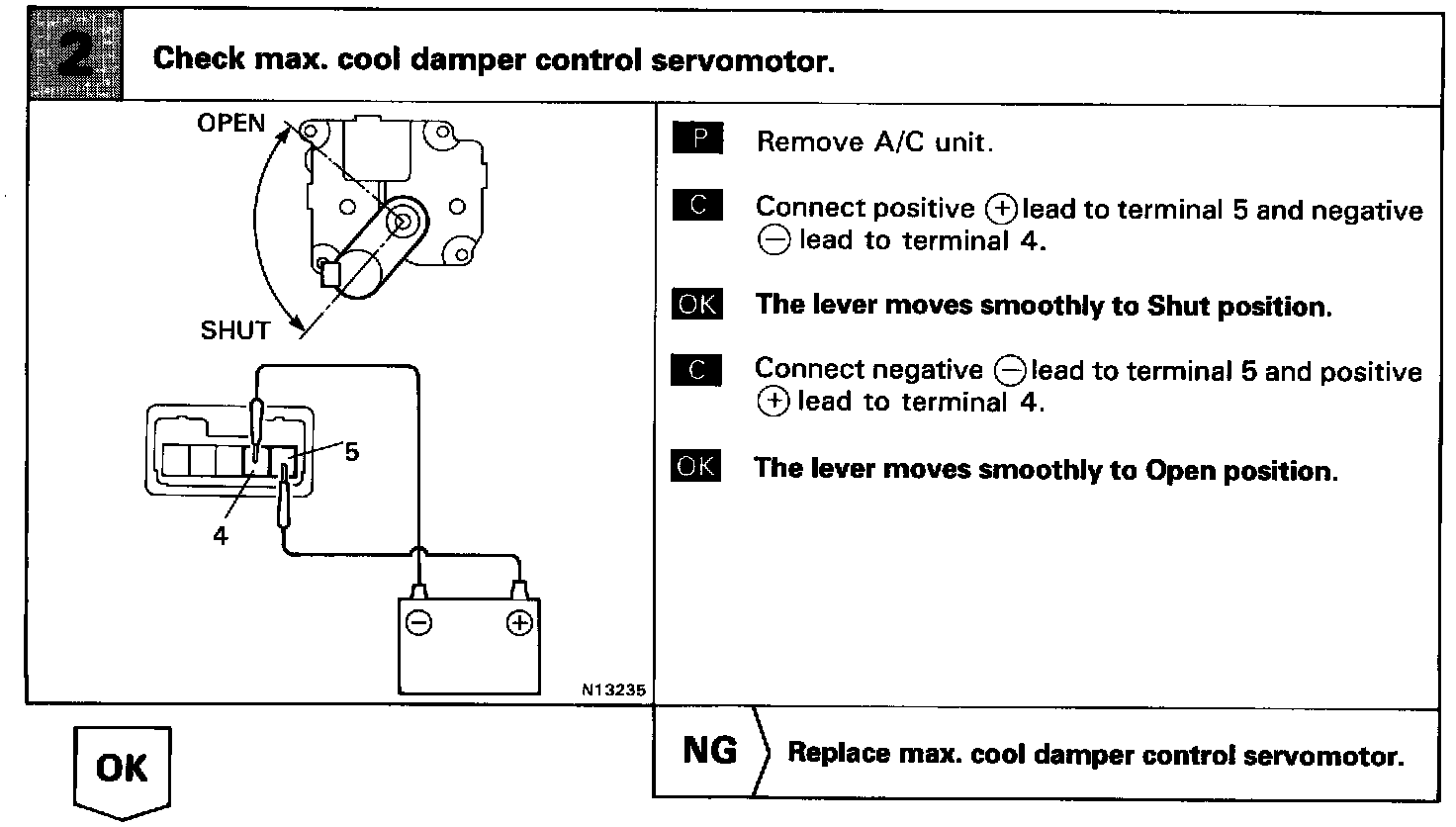

INSPECTION PROCEDURE
The max cool servomotor is controlled by the A/C control assembly and moves the max cool damper to the desired position.
WIRING DIAGRAM
INSPECTION PROCEDURE
