IG Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for air conditioning control assembly and servomotors, etc.

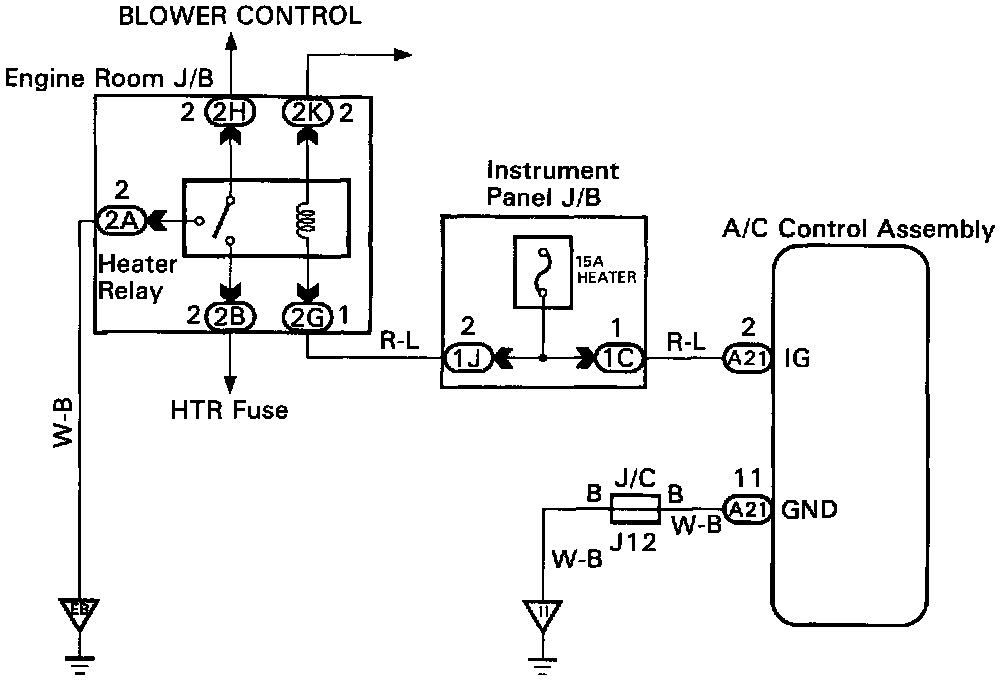

WIRING DIAGRAM

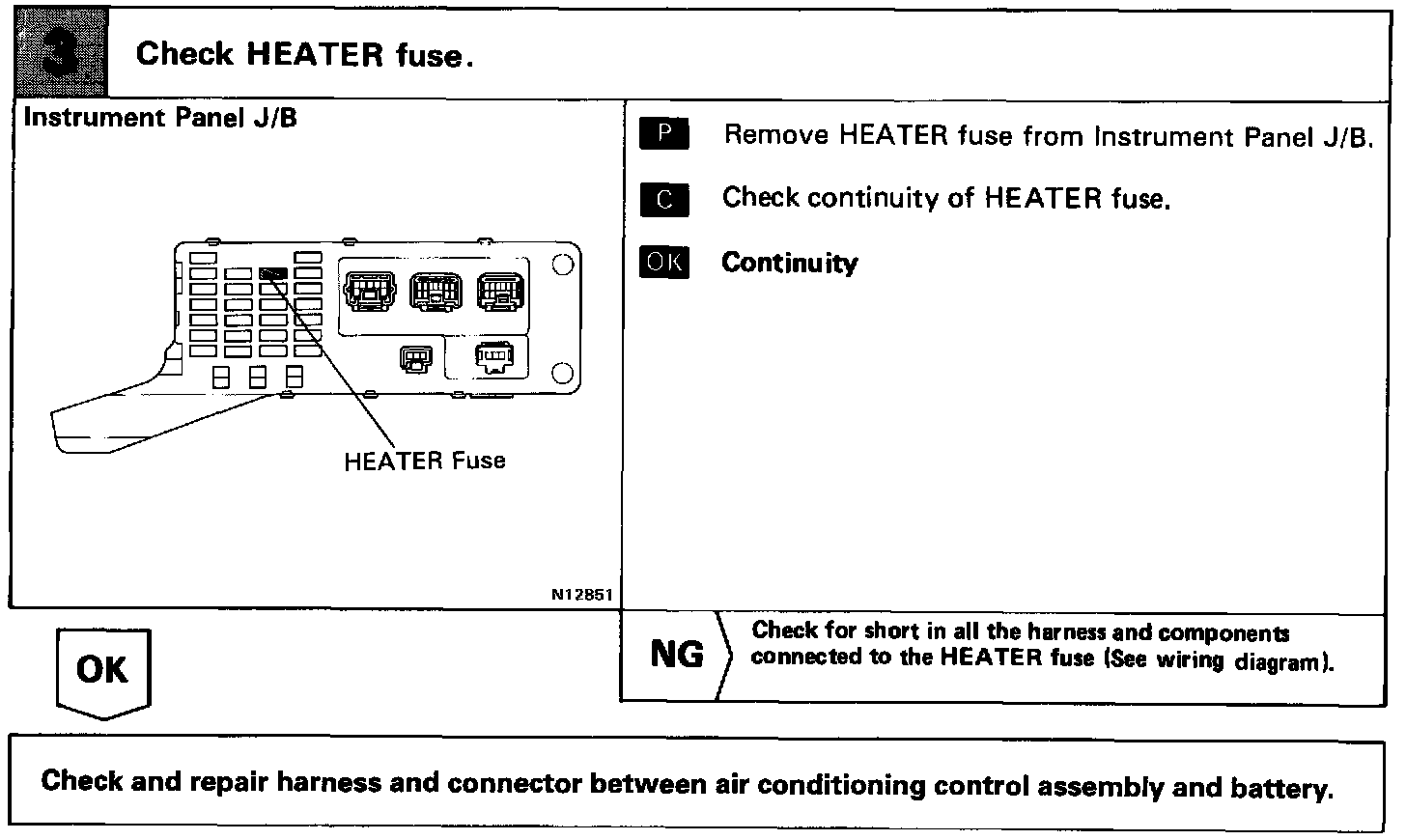

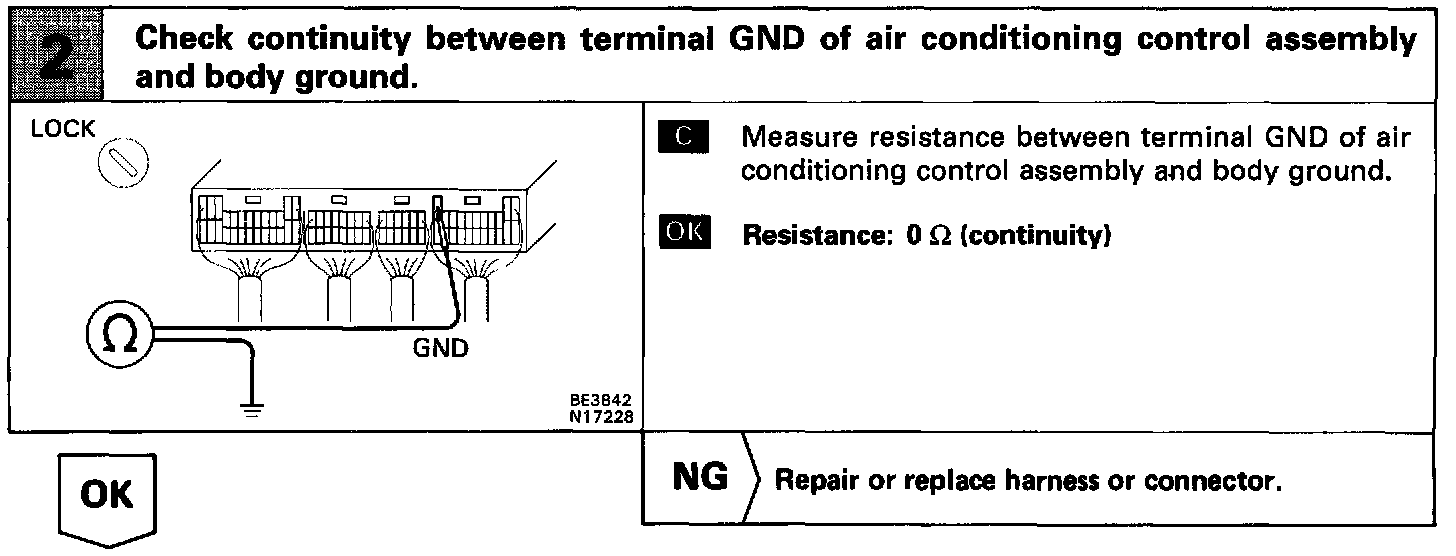

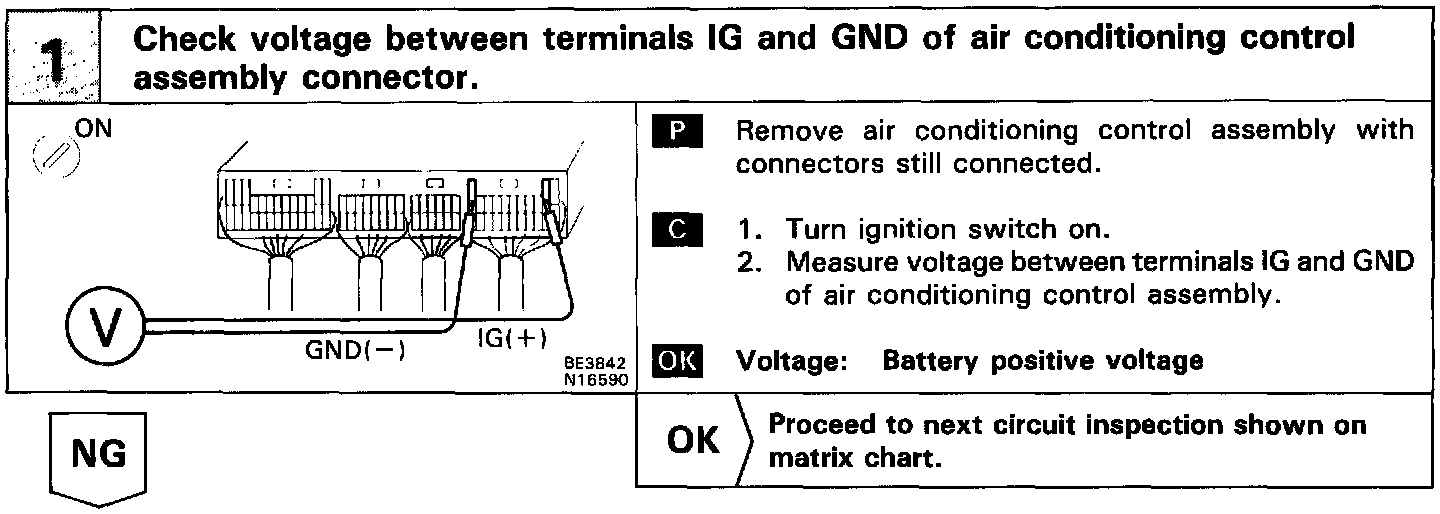

INSPECTION PROCEDURE
