Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit sends signals to the A/C control assembly requesting output of diagnostic trouble codes.

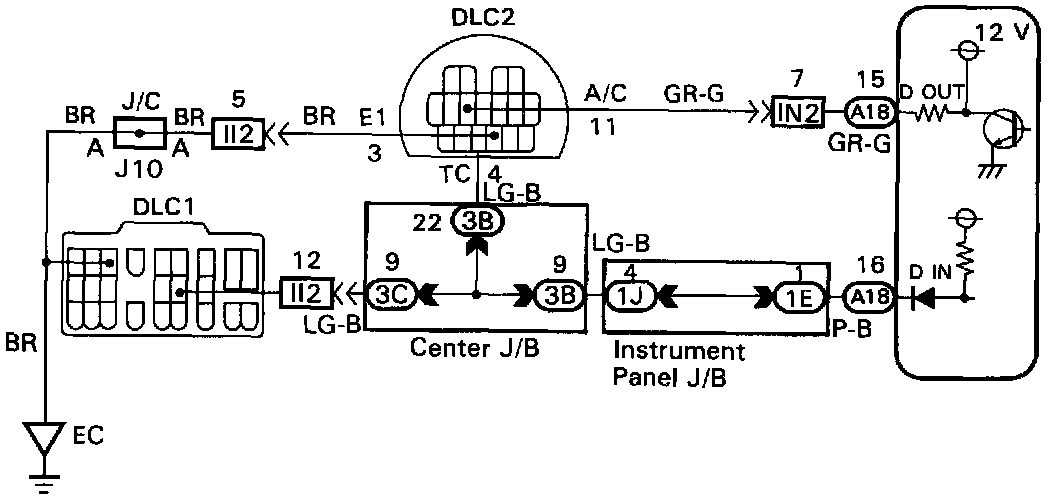

WIRING DIAGRAM

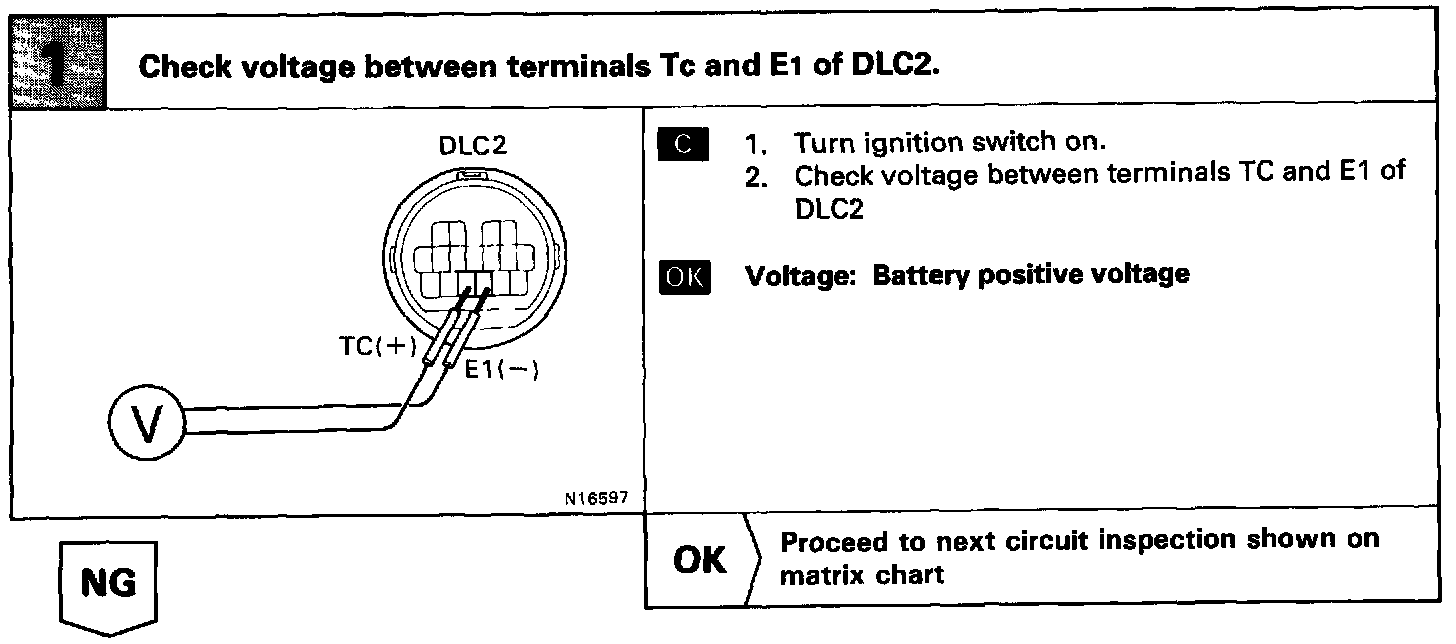

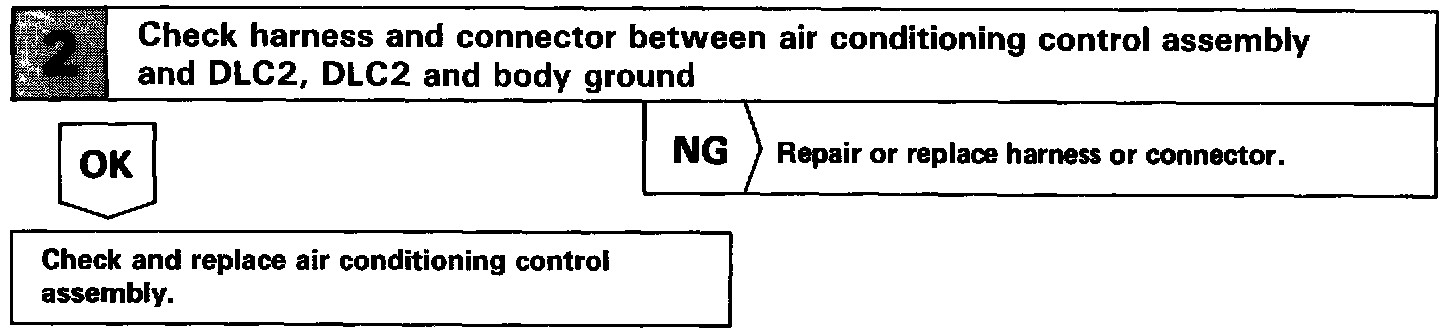

INSPECTION PROCEDURE
