Disassembly and Reassembly

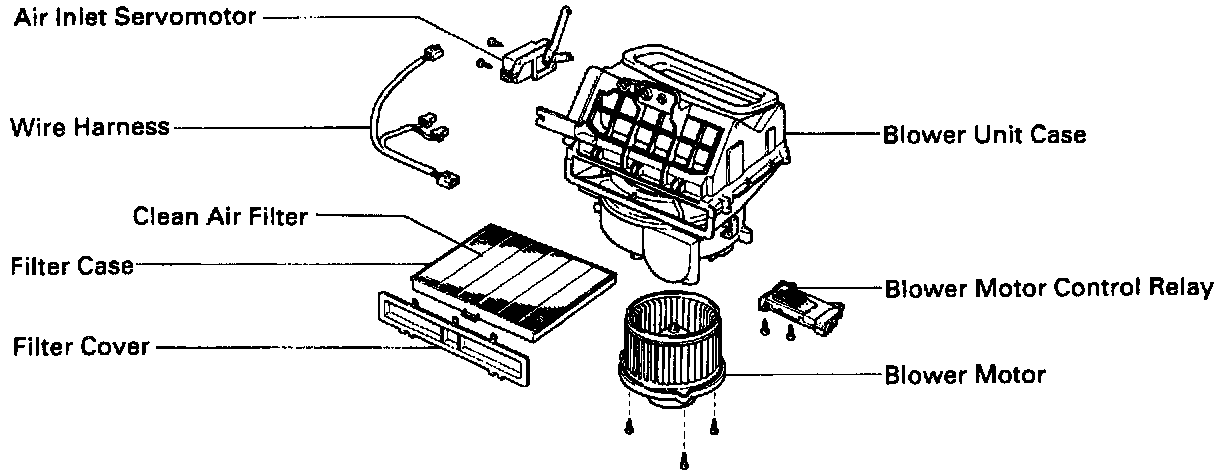

BLOWER UNIT DISASSEMBLY

1. REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.

2. REMOVE BLOWER MOTOR CONTROL RELAY
a. Disconnect the connectors.
b. Remove the 2 screws and blower motor control relay.

3. REMOVE AIR INLET SERVOMOTOR
a. Disconnect the connector.
b. Remove the 2 screws and servomotor.

4. REMOVE CLEAN AIR FILTER
a. Disconnect the 3 claw and remove the filter cover.
b. Pull out the filter case.
c. Remove the clean air filter from the case.

BLOWER UNIT ASSEMBLY
Assembly is in the reverse order of disassembly.
