Blower Motor Assembly

BLOWER MOTOR REMOVAL

1. REMOVE GROVE COMPARTMENT PARTS





2. REMOVE BLOWER MOTOR
a. Disconnect the connector.

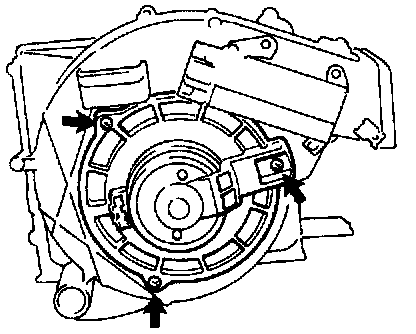

b. Remove the 3 screws and blower motor.

BLOWER MOTOR INSTALLATION
Installation is in the reverse order of removal.
