Exhaust System: Service and Repair

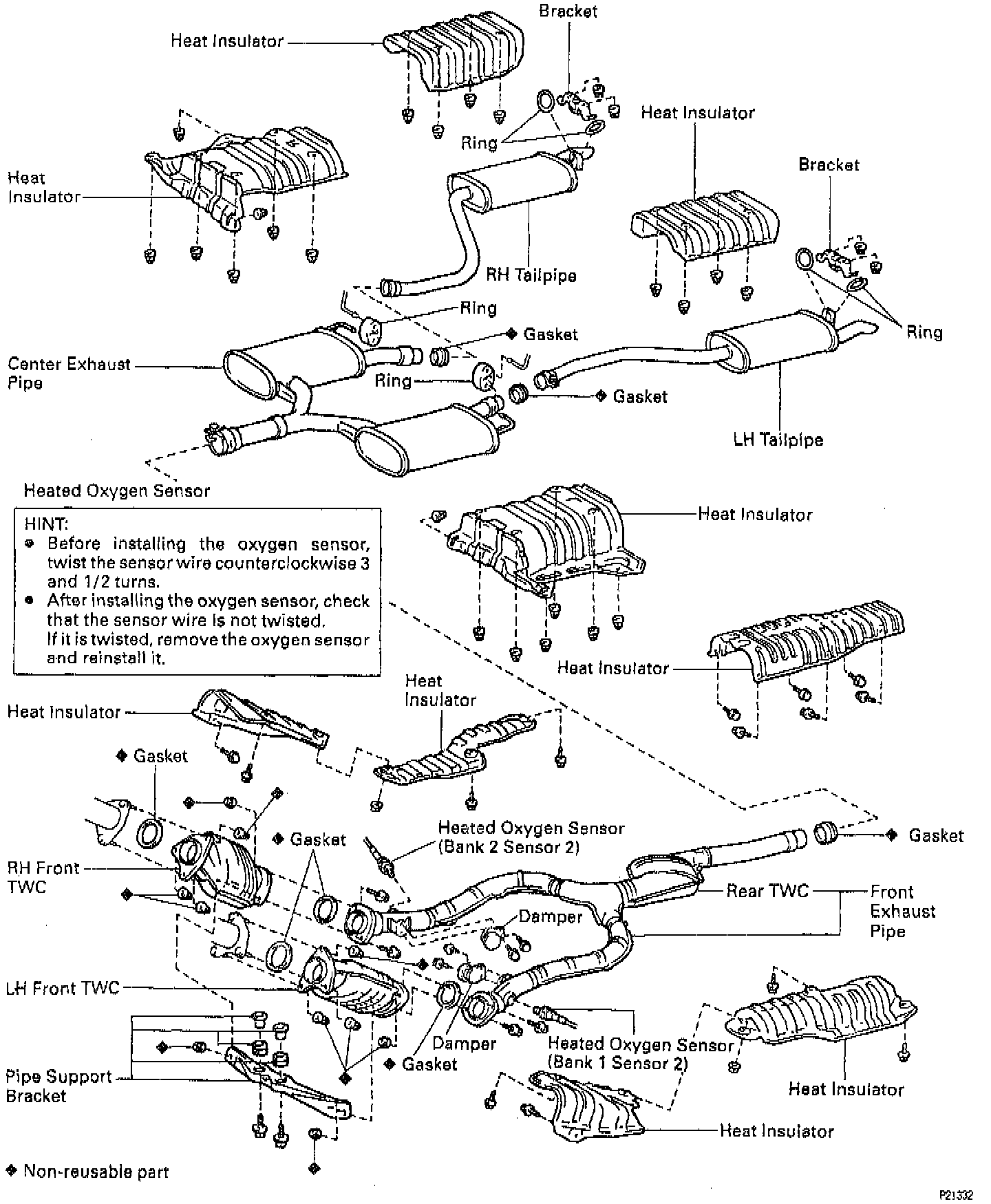

Exhaust System Exploded Diagram:

- Install a new gasket to the exhaust pipe in the correct direction.



- Fit together the clamp protrusion and pipe hollow, and tighten the clamp bolt until A and B of the clamp are just touching.
Torque: 44 Nm (440 kg.cm, 32 ft.lb).
- Tighten the clamp bolt holding the front exhaust pipe to the center exhaust pipe, then tighten the four bolts holding the pipe support bracket to the transmission.
Torque: 44 Nm (440 kg.cm, 32 ft.lb).
