Valve Spring: Testing and Inspection

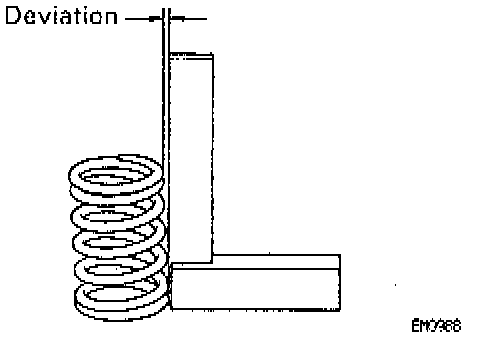

1. Using a steel square, measure the deviation of the valve spring.
Maximum deviation: 2.000 mm (0.0790 inch)
If the deviation is greater than maximum, replace the valve spring.

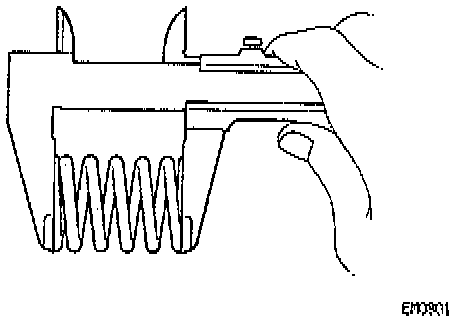

2. Using vernier calipers, measure the free length of the valve spring.
Free length: 51.800 mm (2.0390 inch)
If the free length is not as specified, replace the valve spring.

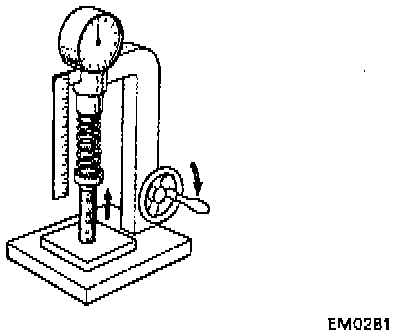

3. Using a spring tester, measure the tension of the valve spring at the specified installed length.
Installed tension: 186-206 N (19.0-21.0 kg, 41.9-46.3 lbs.) at 32.900 mm (1.2950 inch)
If the installed tension is not as specified, replace the valve spring.
