Disassembly

1. Remove valve lifters and shims.

NOTE: Arrange the valve lifters and shims in correct order.

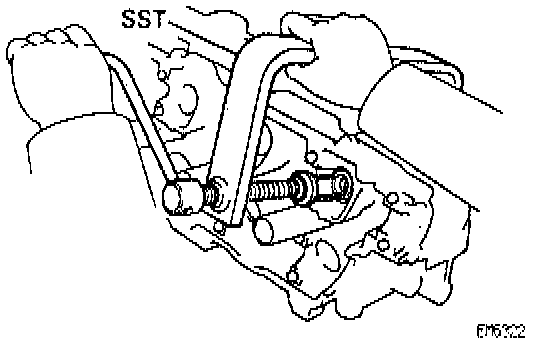

2. Using valve spring compressor Special Service Tool (SST) No. 09202-70010, or equivalent, compress the valve spring and remove the two keepers.
3. Remove these parts:
- Spring retainer
- Valve spring Valve Spring seat

NOTE: Arrange the valves, valve springs, spring seats and spring retainers incorrect order.

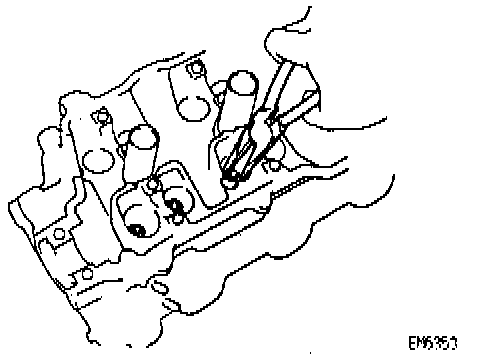

4. Using needle-nose pliers, remove the oil seal.
