Main Bearing Cap Stud Replacement

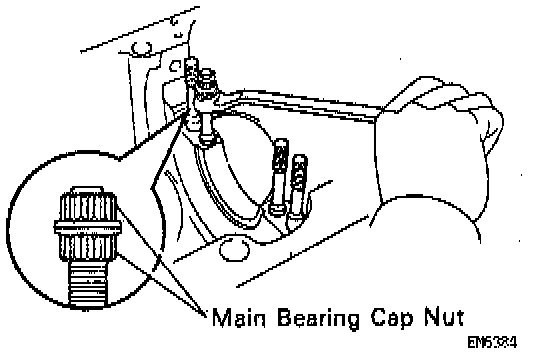

1. Using the two main bearing cap nuts, remove the stud bolt.
2. Apply a light coat of engine oil on the threads and under flange of new stud bolts.

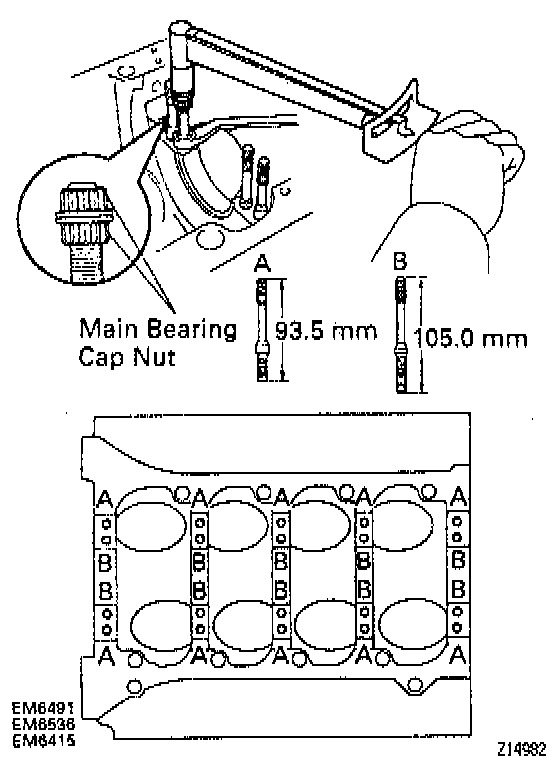

3. Using the two main bearing cap nuts, install the stud bolt, tighten to 15 Nm (150 kg.cm, 11 ft.lb).

NOTE:
- Stud bolts come in lengths of 93.5 mm (3.681 in) and 105.0 mm (4.134 in).
- Install the 105.0 mm (4.134 in) bolts in inside positions.
- Install the 93.5 mm (3.681 in) bolts in outside positions.
