Disassembly

Disconnect connecting rod from piston as follows:




(a) Using a small screwdriver, pry out the two snap rings.

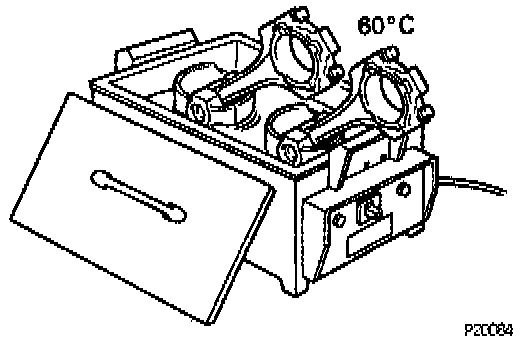

(b) Gradually heat the piston to approx. 60°C (140°F).

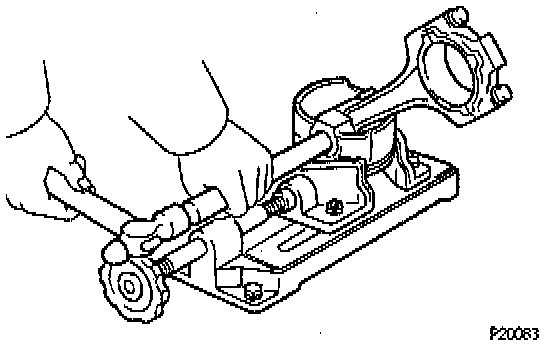

(c) Using a plastic-faced hammer and brass bar, lightly tap out the piston pin and pin and remove the connecting rod.

NOTE:
- The piston and pin are a matched set.
- Arrange the pistons, pins, rings, connecting rods and bearings in correct order
