EFI Communication Circuit

CIRCUIT DESCRIPTION
When driving downhill under cruise control, in order to provide smooth cruise control and minimize changes in engine torque caused by the fuel cut, a signal is sent from the cruise control ECU to the ECM for retard angle control exclusively for cruise control.

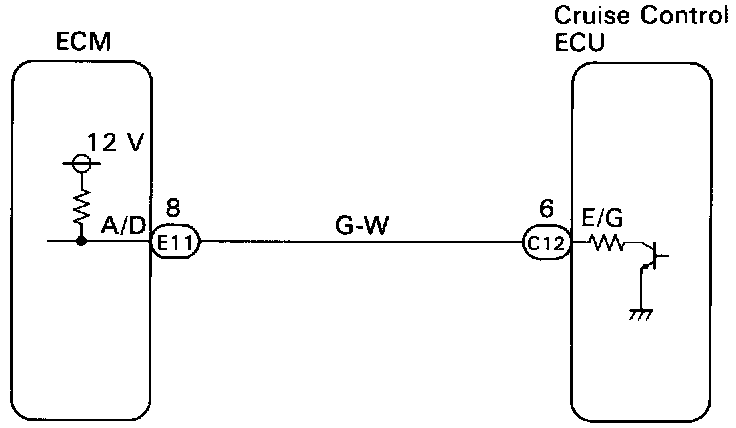

WIRING DIAGRAM

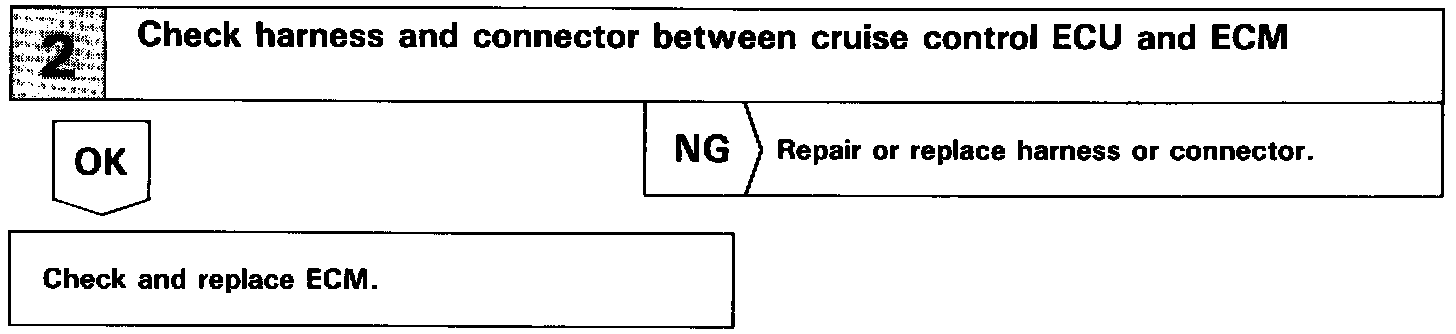

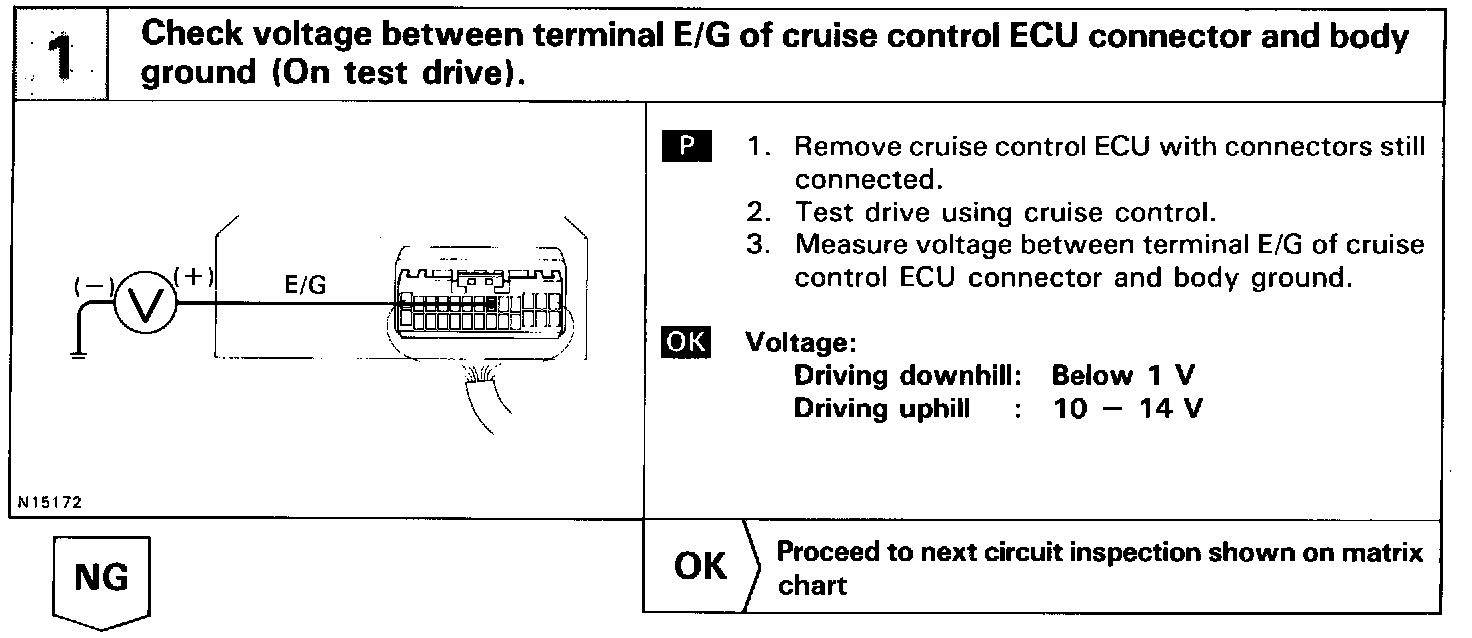

INSPECTION PROCEDURE
