Back-Up Power Source Circuit

CIRCUIT DESCRIPTION
The ECU back-up power source provides power even when the ignition switch is off and is used for diagnostic code memory, etc.

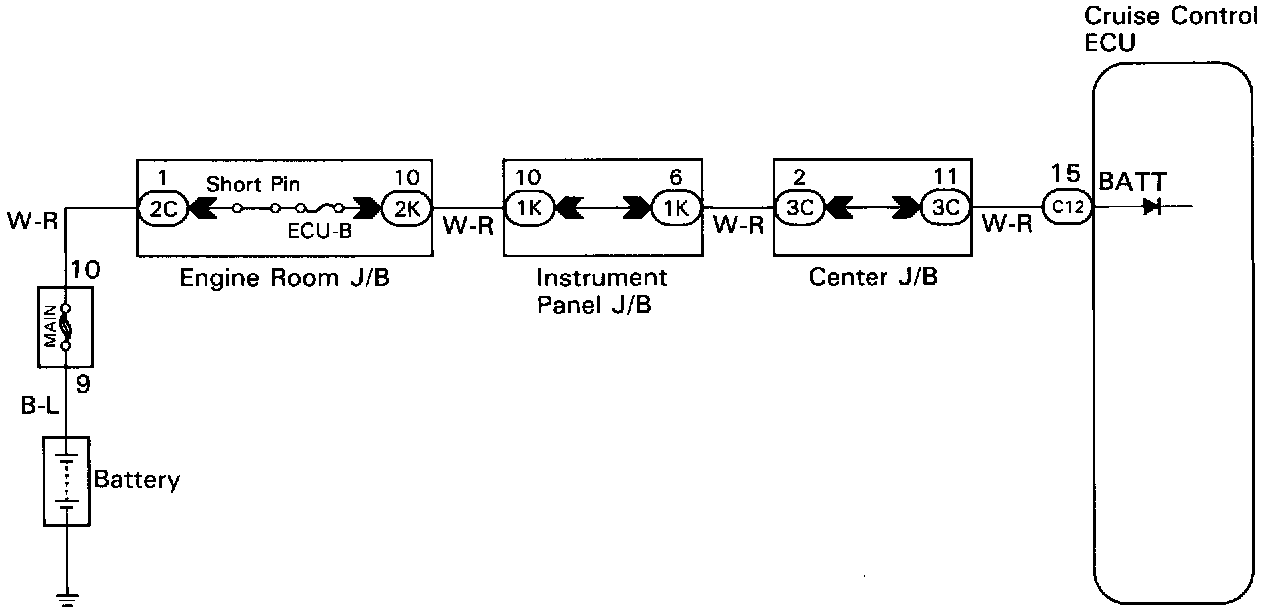

WIRING DIAGRAM

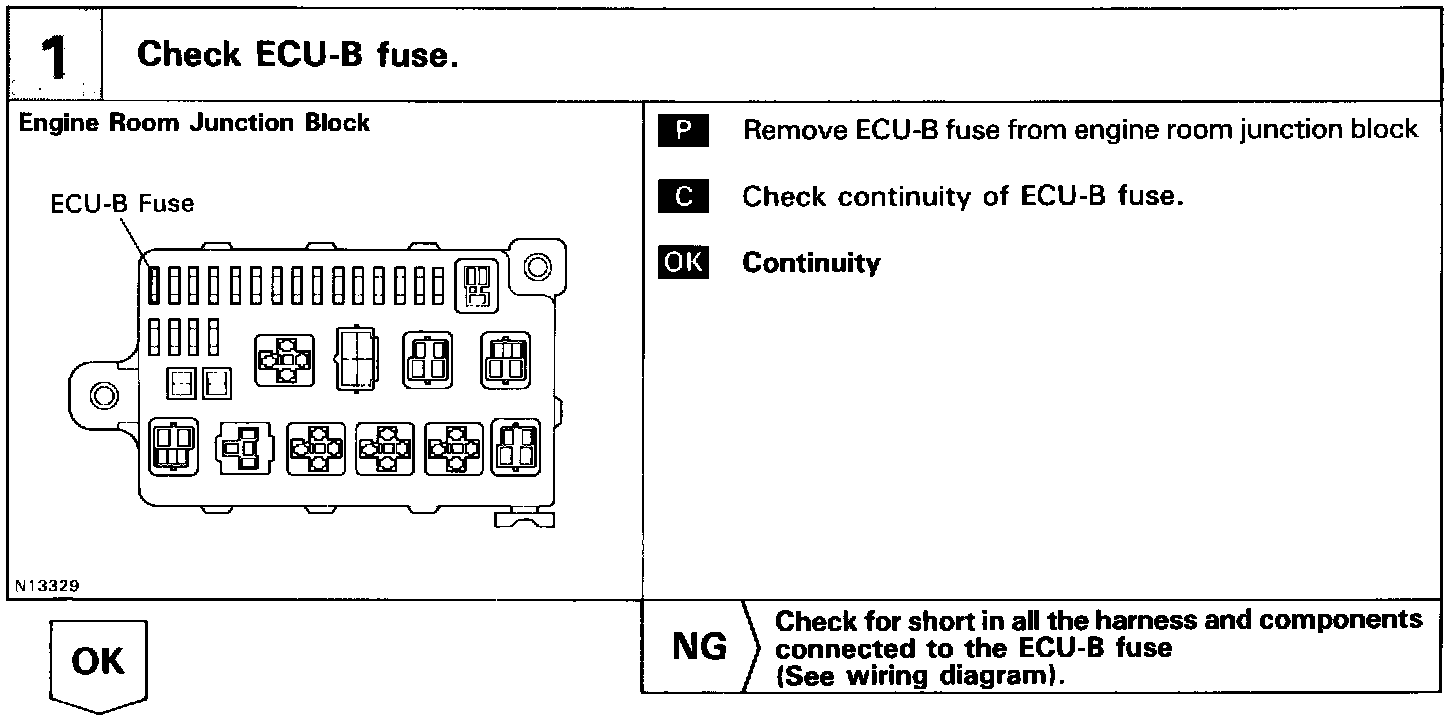

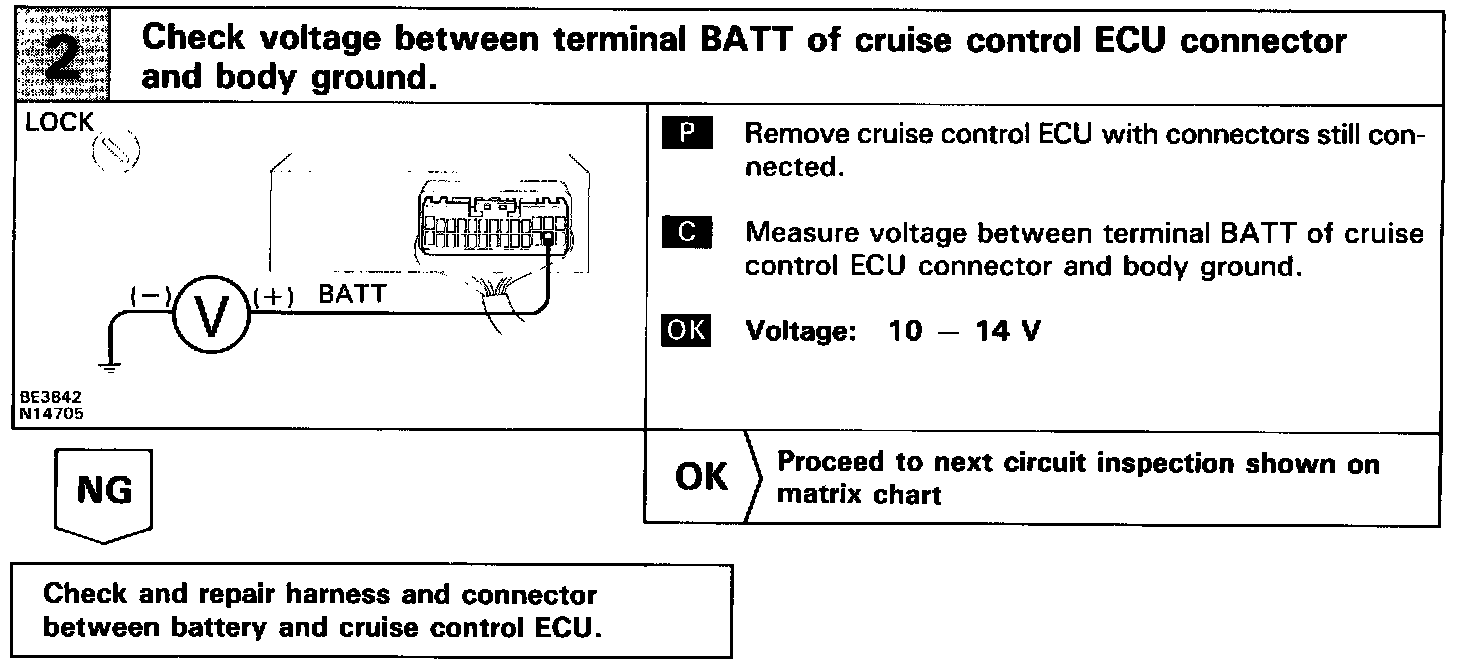

INSPECTION PROCEDURE
