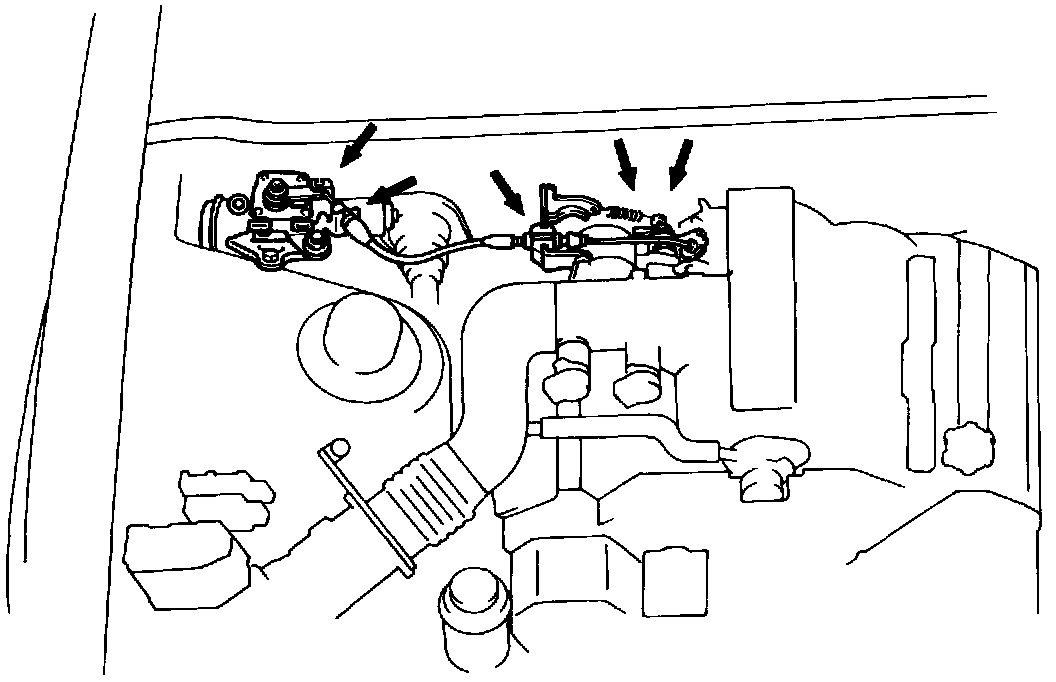

Actuator Control Cable

1. Check that the actuator, control cable and throttle link are properly installed and that the cable and link are connected correctly.
2. Check that the actuator and throttle link are operating smoothly.
3. Check that the cable is not loose or too tight.

HINT
1. If the control cable is very loose, the vehicle's loss of speed in going uphill will be large.
2. If the control cable is too tight, the idle RPM will become high.
