Parking Brake Pedal: Testing and Inspection

Parking Brake Pedal Travel Check:

1. Check Parking Brake Pedal travel.

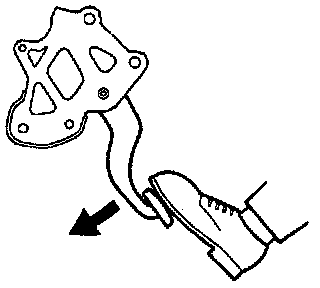

Depress the Parking Brake Pedal all the way, and count the number of clicks.
Parking Brake Pedal travel at 294 N (30 kg, 66.1 lbs.): 5-7 clicks.
2. If necessary, adjust Parking Brake. Adjustments
