Parking Brake Pedal: Adjustments

1. Adjust the Parking Brake Shoe clearance.

Parking Brake Adjustment:

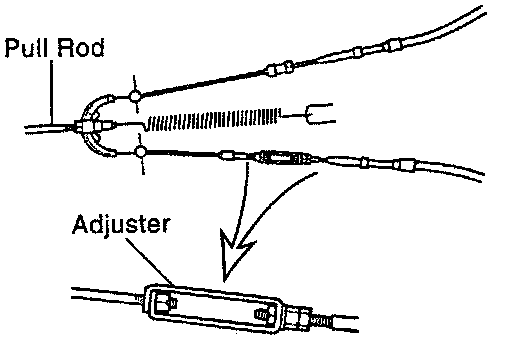

2. Loosen the adjuster lock nut and adjust until the Parking Brake Pedal travel is correct.
Parking Brake Pedal travel at 294 N (30 kg, 66.1 lbs.): 5-7 clicks.

NOTE: If the adjustment cannot be made within the range of travel of the adjuster, remove the propeller shaft and make the adjustment at the pull rod.
