Slip Indicator Light Circuit

SLIP Indicator Light Circuit, Wiring Diagram:

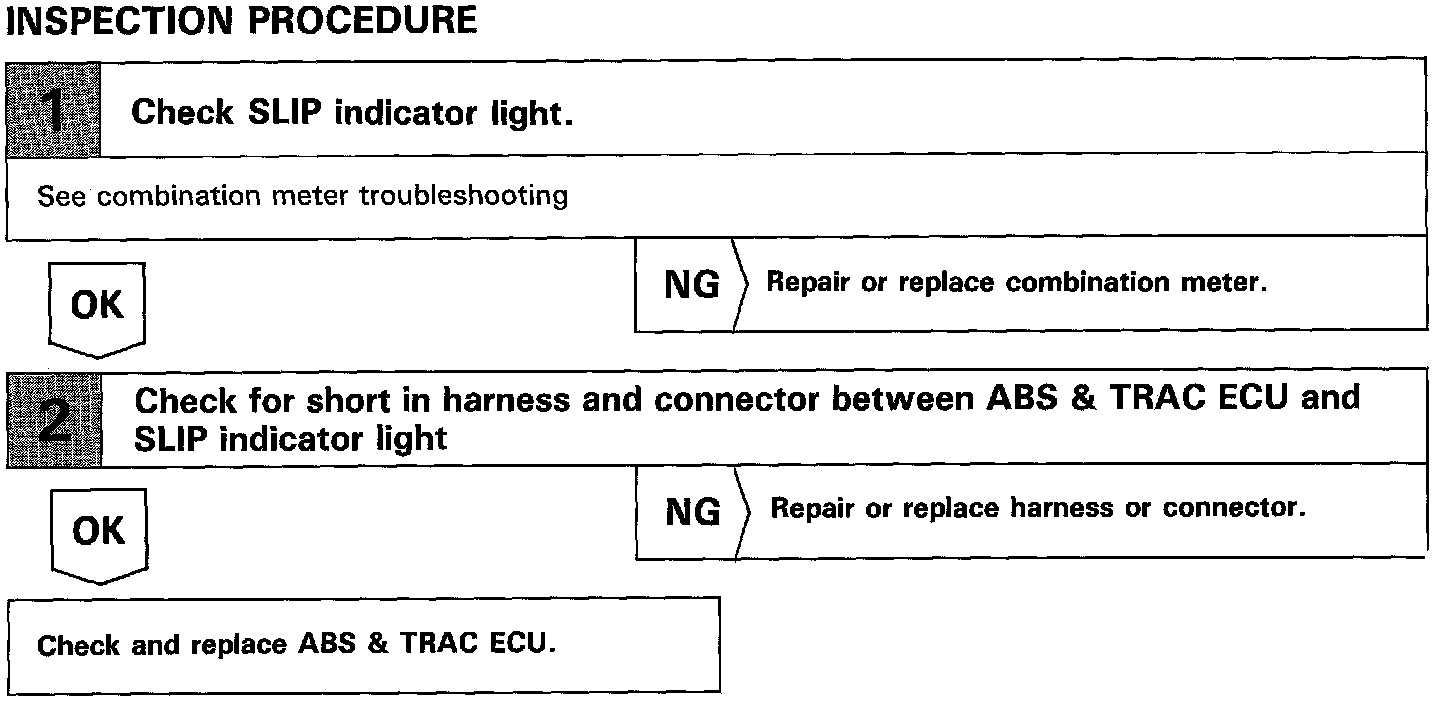

SLIP Indicator Light Circuit, Inspection Procedure:

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.
