Seat Temperature Switch: Testing and Inspection

SEAT HEATER SWITCH INSPECTION

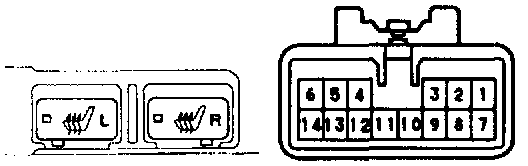

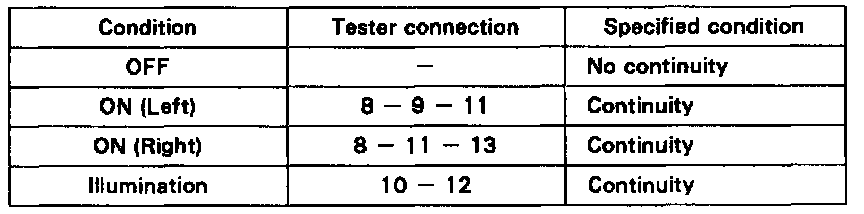

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified, replace the switch or bulb.





2. INSPECT SWITCH INDICATOR

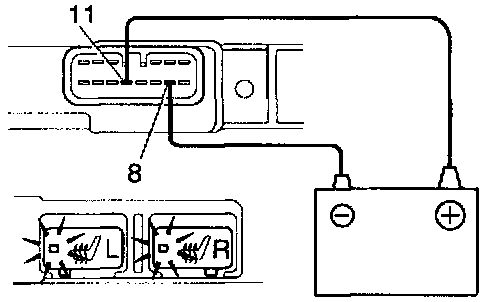

a. Connect the positive (+) lead from the battery to terminal 11 and the negative (-) lead to terminal 8.
b. Push the switch and check that the indicator light lights up.
If operation is not as specified. replace the switch.








3. INSPECT SWITCH CIRCUIT

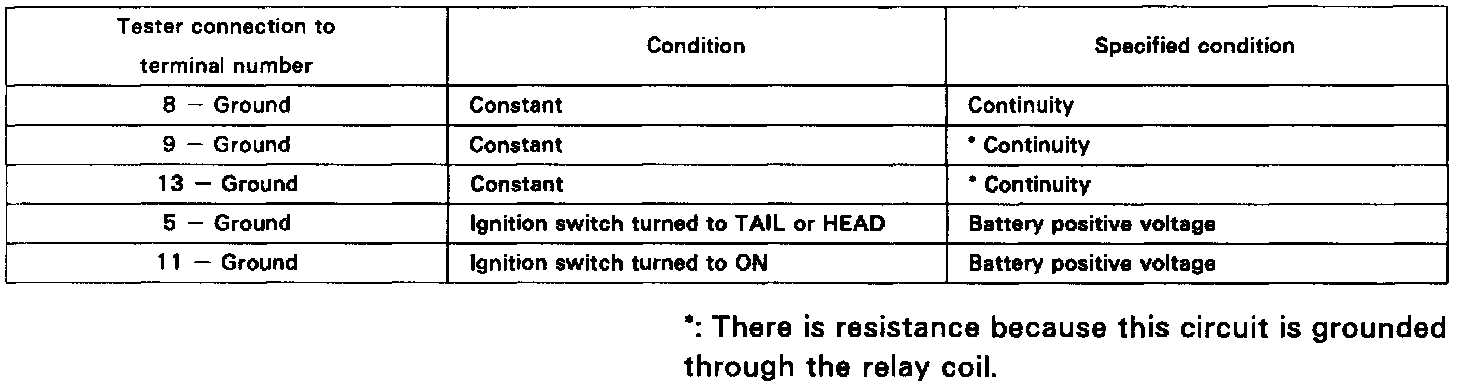

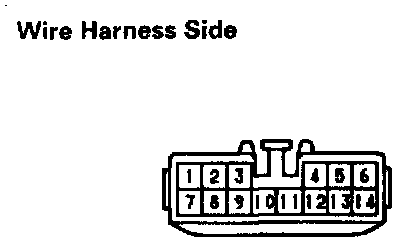

Disconnect the switch connector and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
