Power Seat Switches

POWER SEAT SWITCH INSPECTION

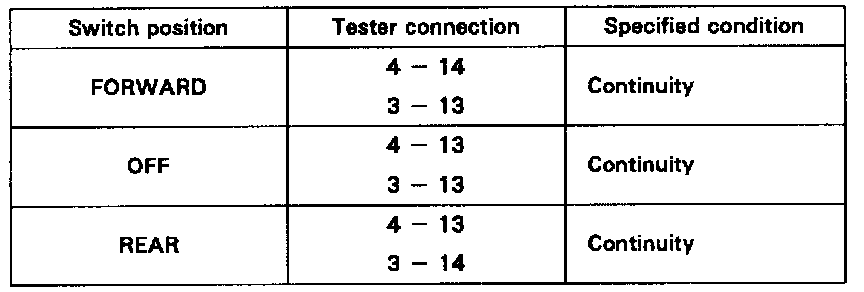

1. INSPECT SWITCH CONTINUITY

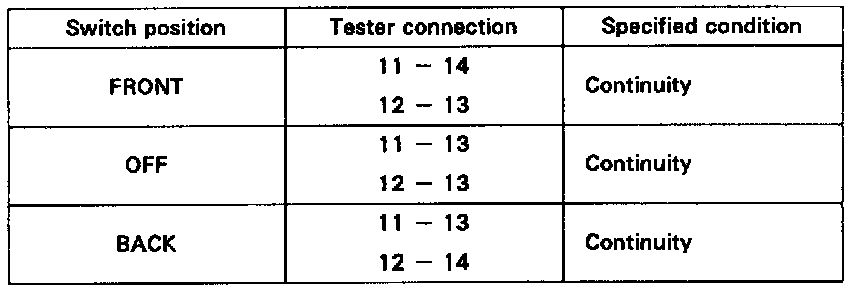

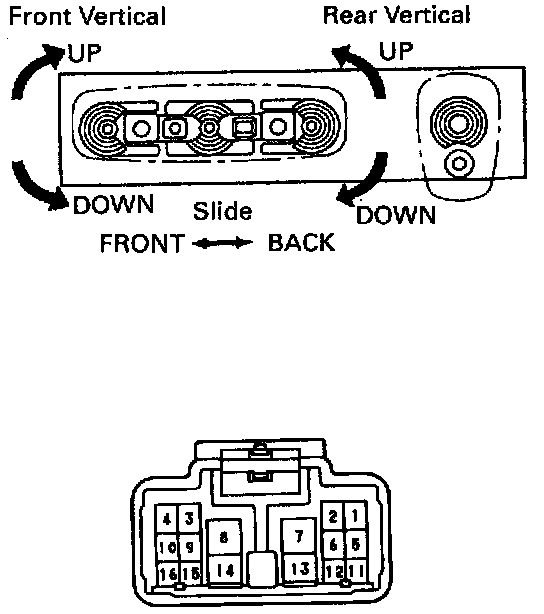

SLIDE SWITCH

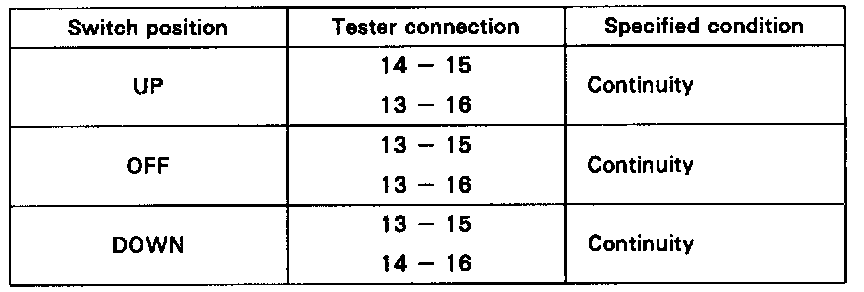

FRONT VERTICAL SWITCH

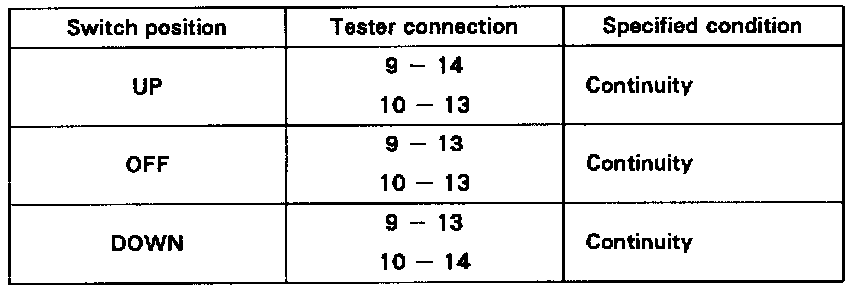

REAR VERTICAL SWITCH

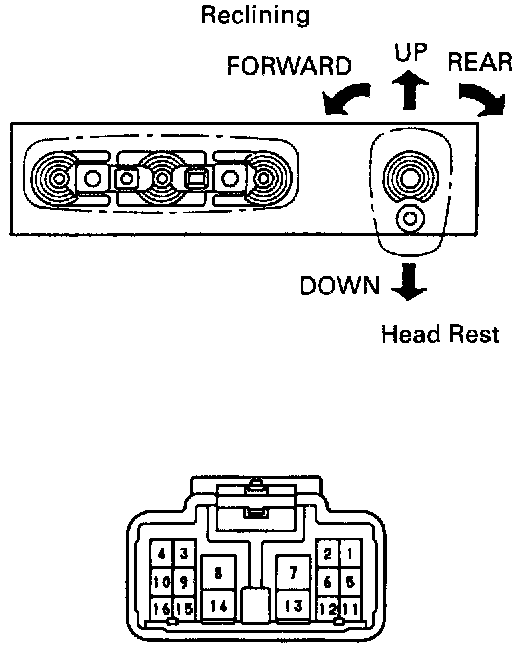

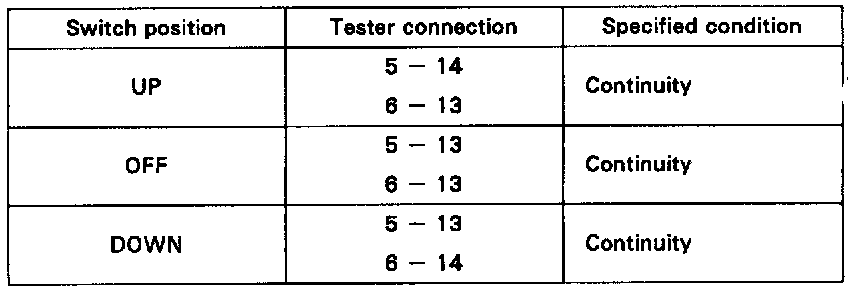

RECLINING SWITCH





HEADREST SWITCH
If continuity is not as specified. replace the switch.








2. INSPECT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

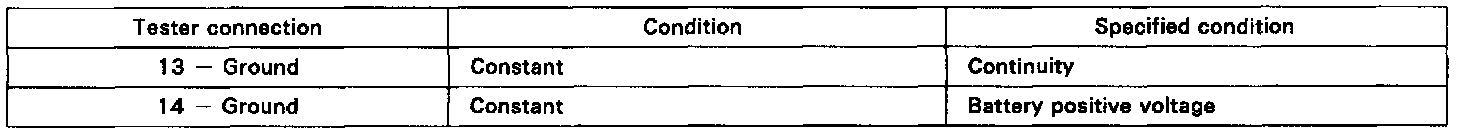

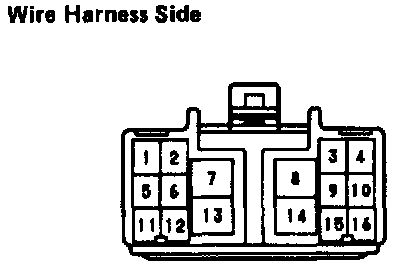

b. Inspect the connector on the wire harness side. as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

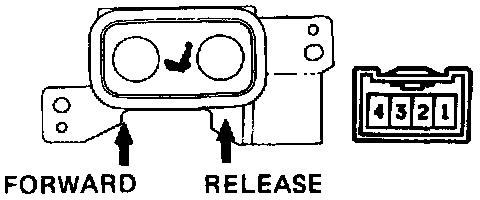

LUMBAR SUPPORT SWITCH INSPECTION

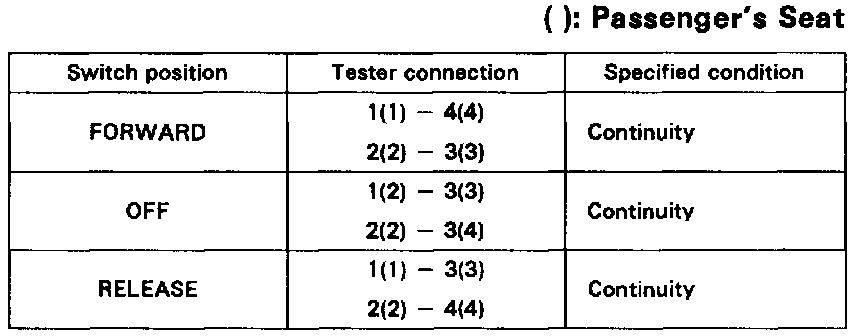

1. INSPECT SWITCH CONTINUITY
If continuity is not as specified. replace the switch.








2. INSPECT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

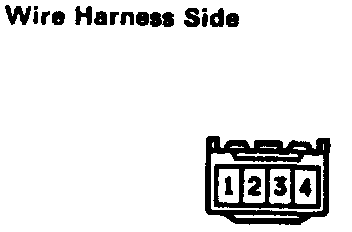

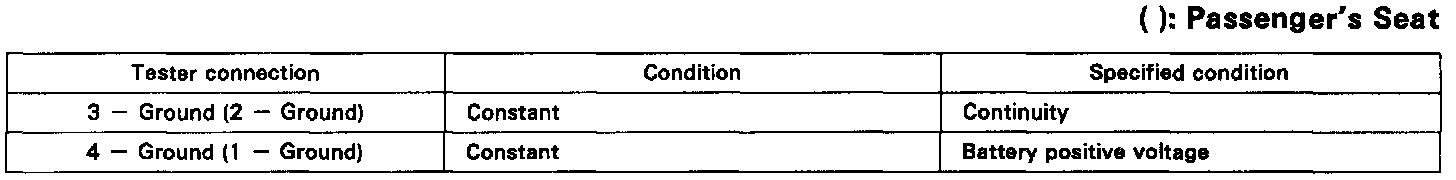

b. Inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
