Stop Light Circuit

CIRCUIT DESCRIPTION
The stop light switch sends a brake ON or OFF signal to the ECU. When the ECU receives a brake ON signal, it prohibits return operation of the seat.

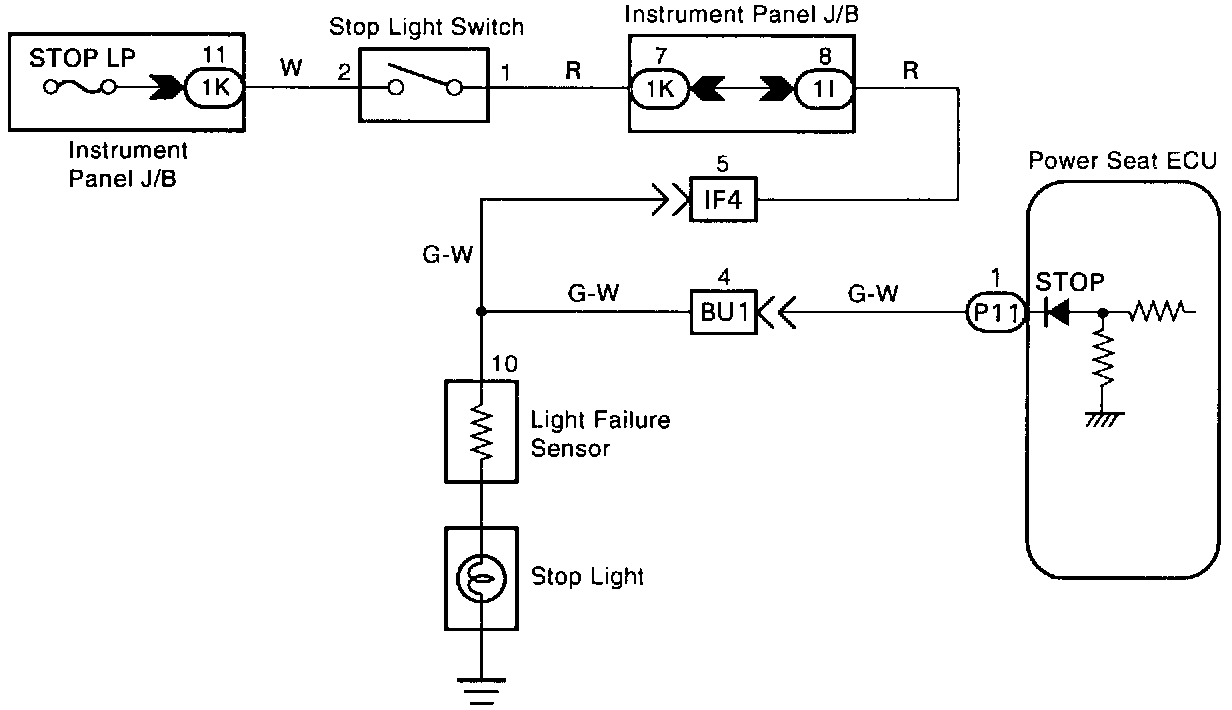

WIRING DIAGRAM

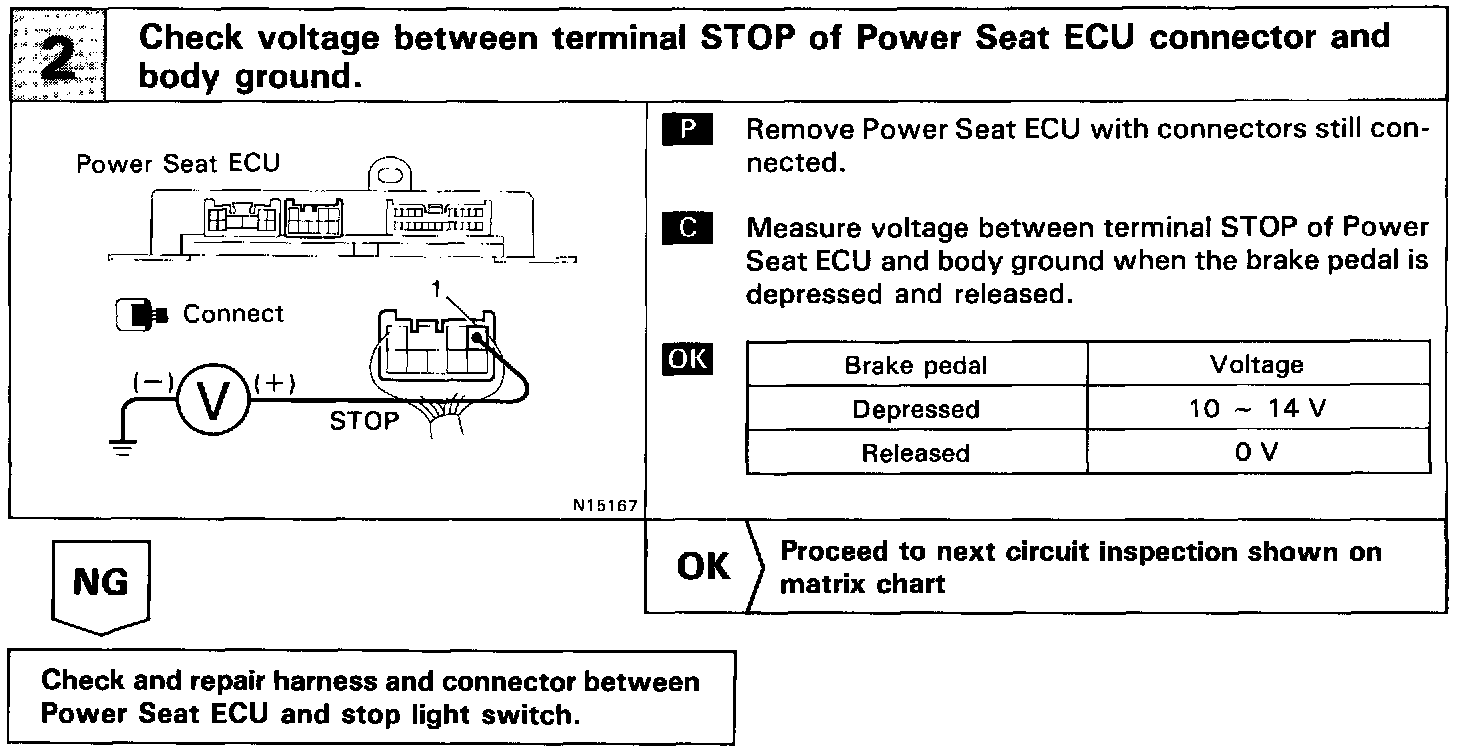

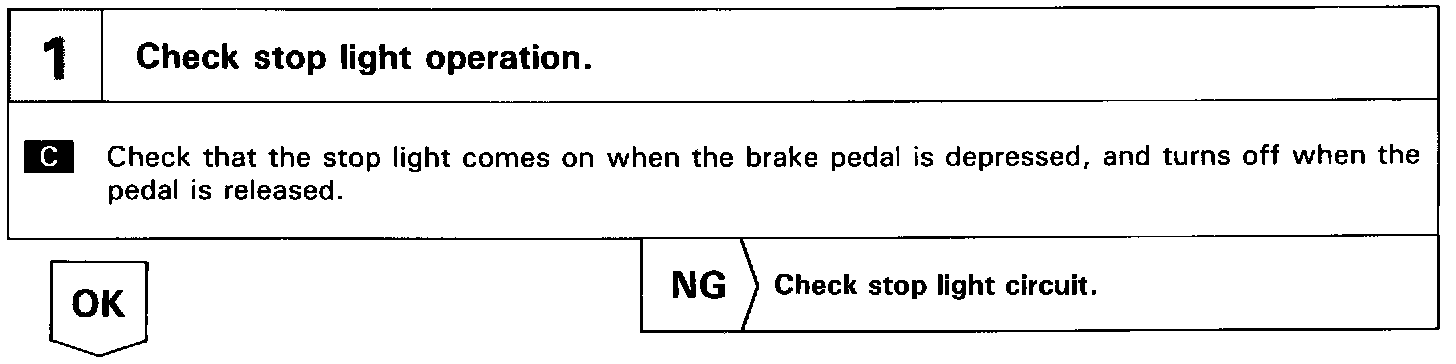

INSPECTION PROCEDURE
