Position Sensor Power Source Circuit

CIRCUIT DESCRIPTION
This Circuit provides power to the slide, front vertical, rear vertical, reclining and headrest sensors.





WIRING DIAGRAM

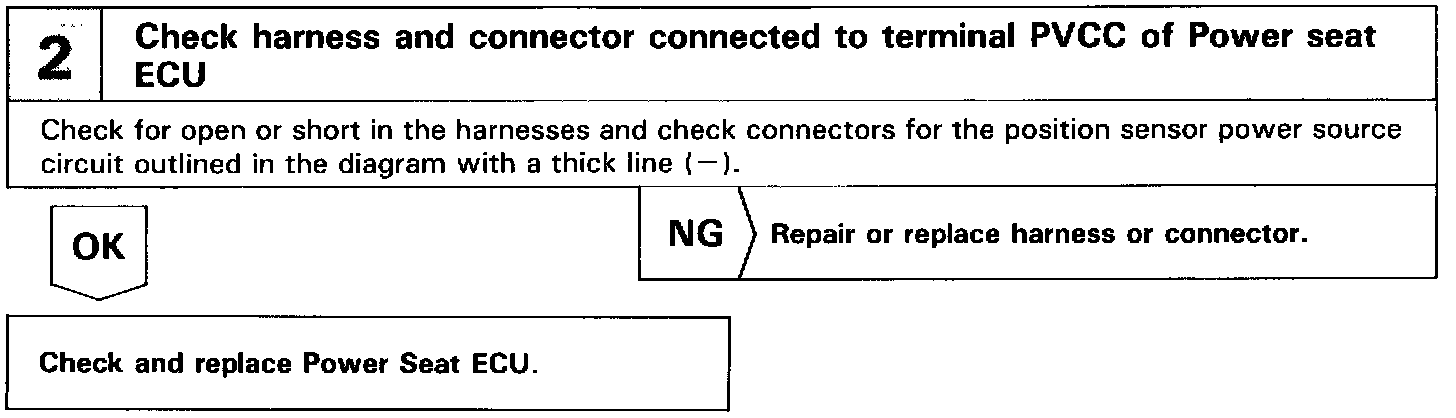

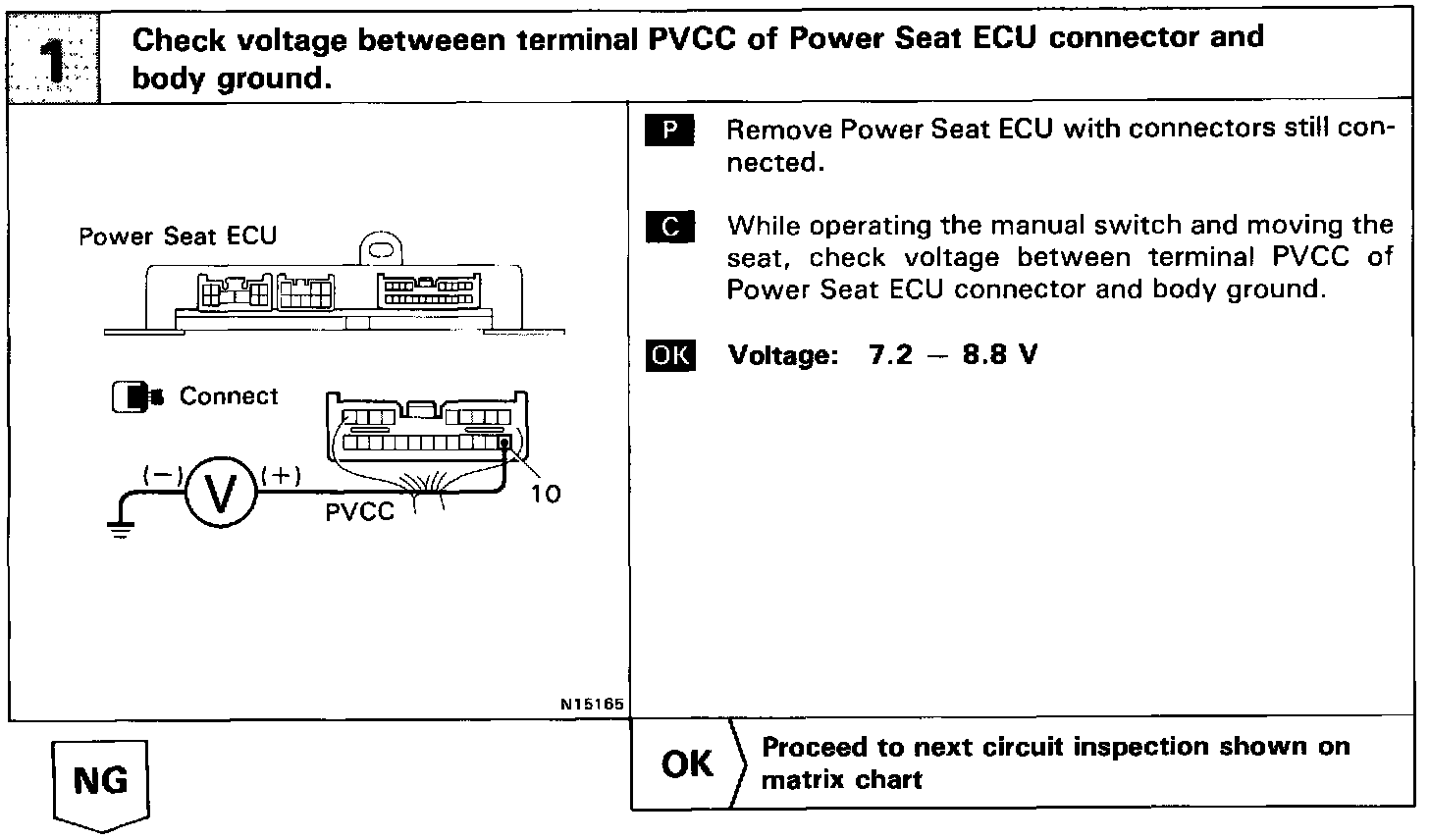

INSPECTION PROCEDURE
