Motor Circuit

CIRCUIT DESCRIPTION
The Power Seat ECU controls the 5 motors for slide, front vertical, rear vertical, reclining and headrest.

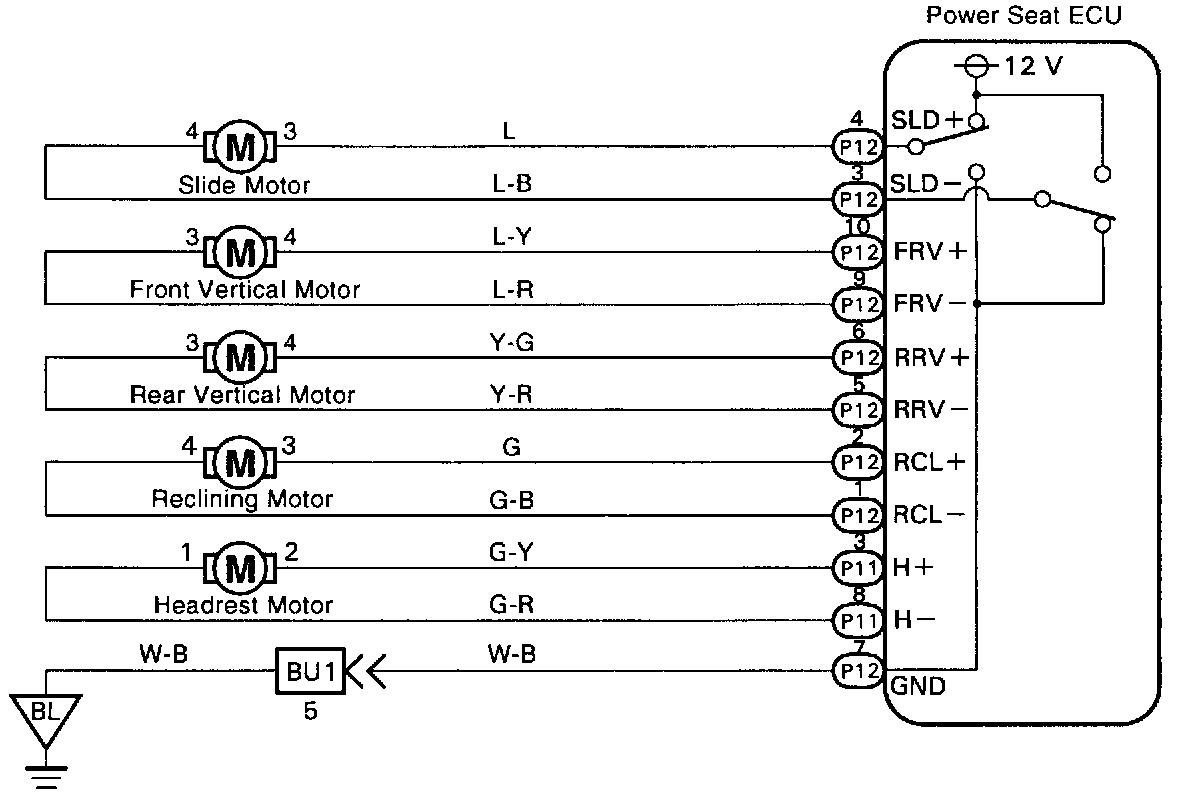

WIRING DIAGRAM

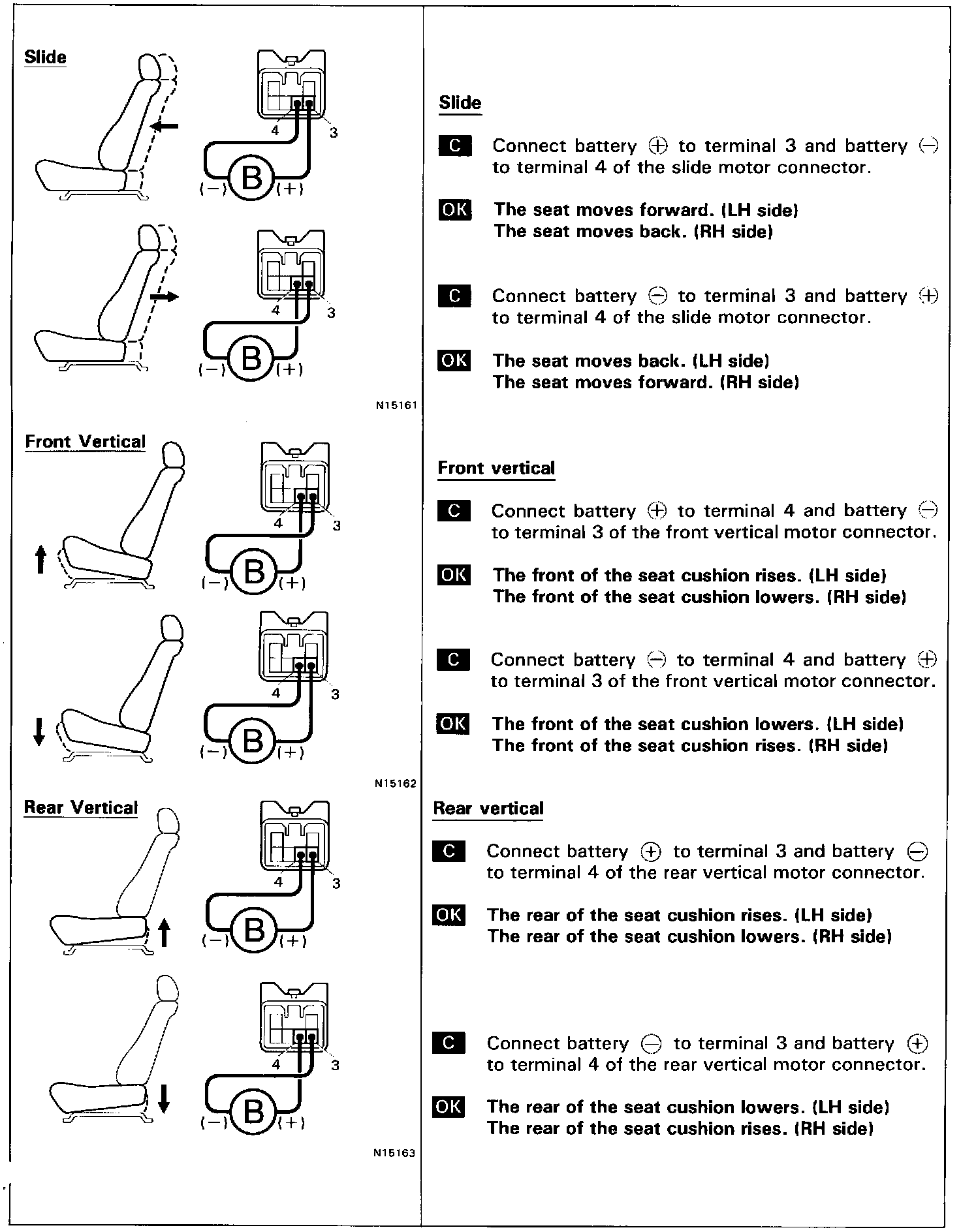

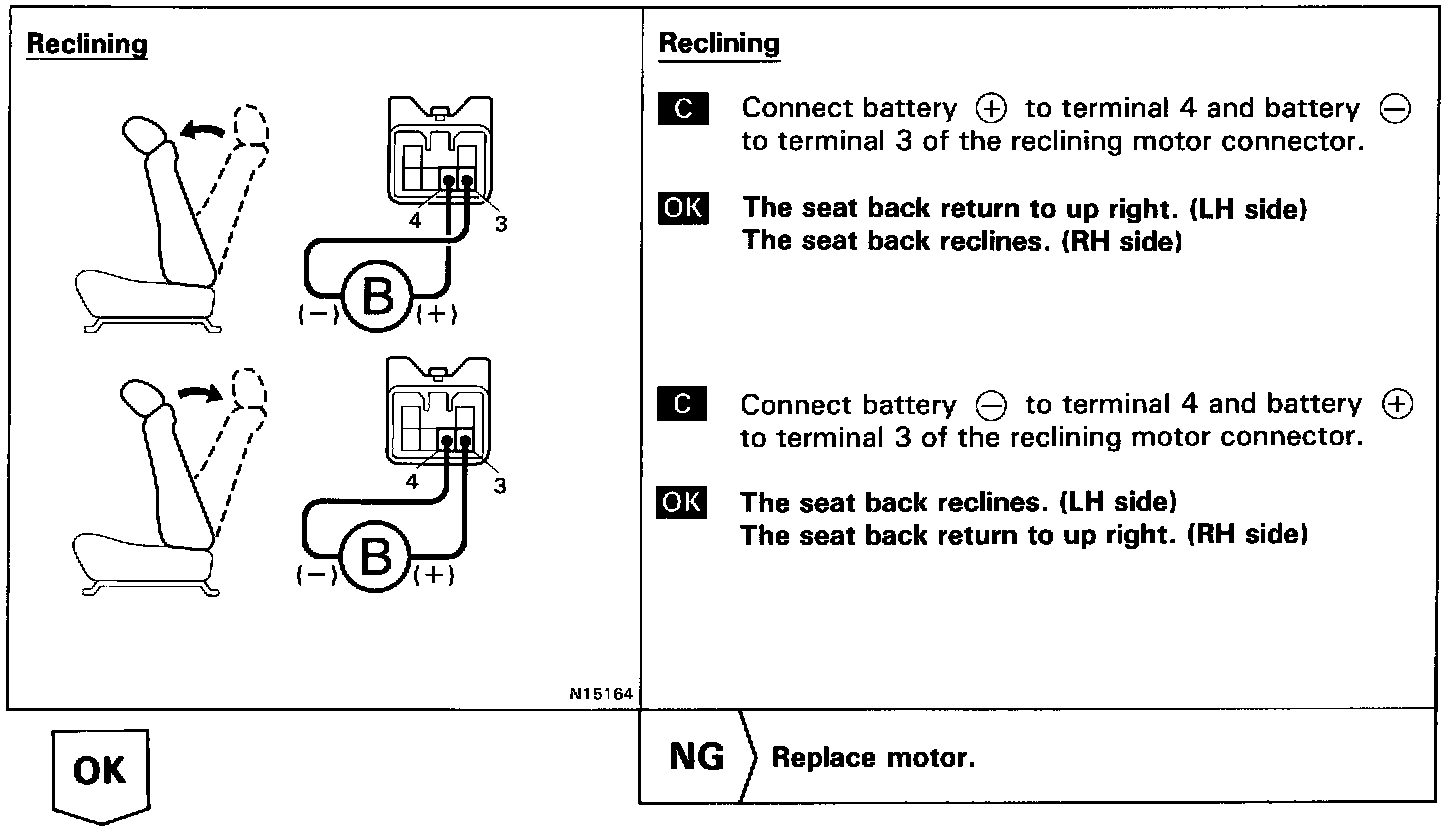

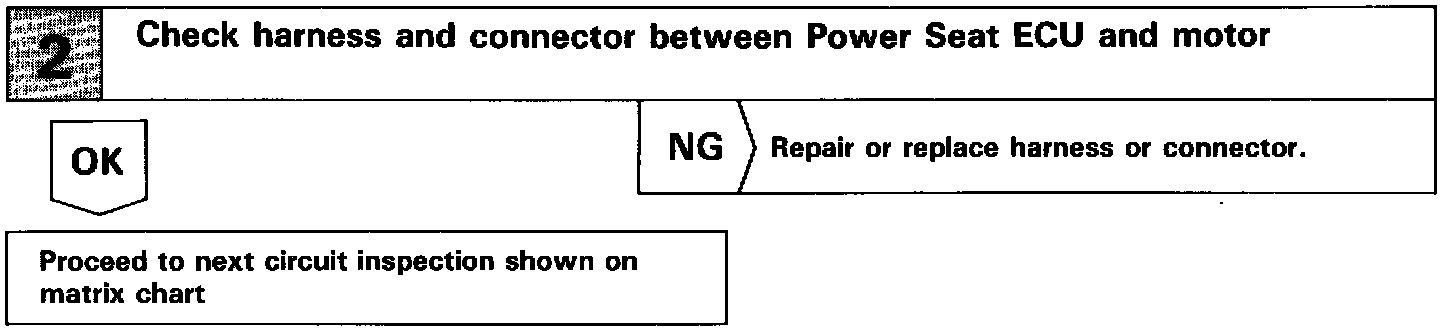

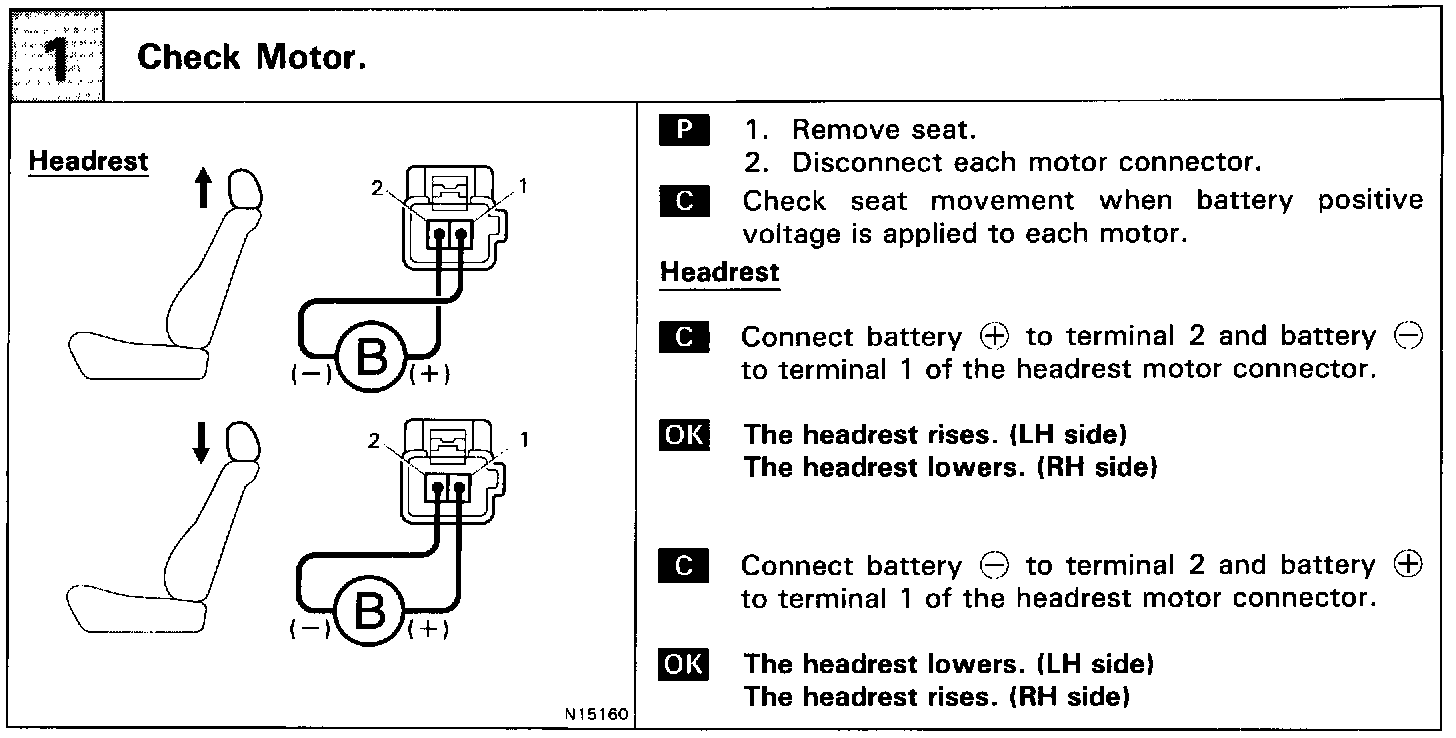

INSPECTION PROCEDURE
