Lexus
>>
1997
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With Driving Position Memory
>>
Circuit Inspection
>>
Ignition Switch Circuit
Ignition Switch Circuit
CIRCUIT DESCRIPTION
This circuit sends an ignition switch ON or OFF signal to the ECU.

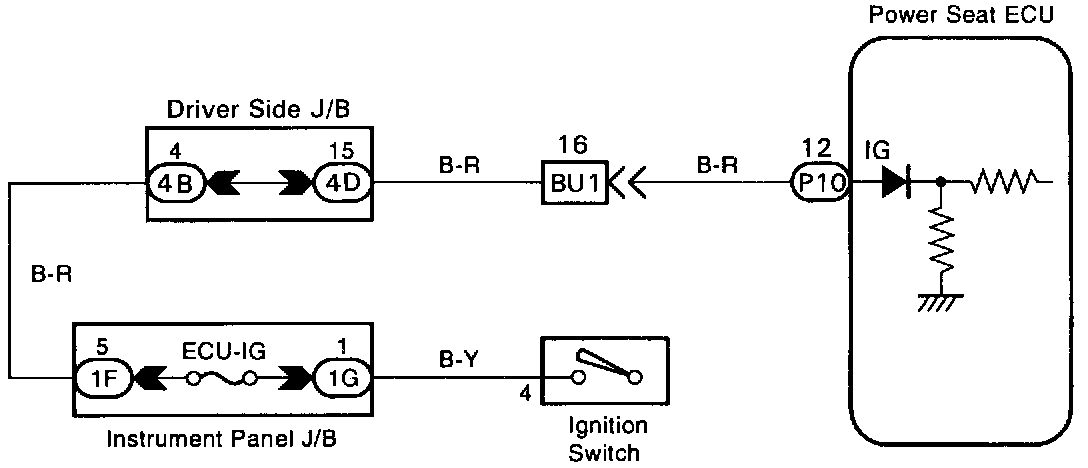

WIRING DIAGRAM

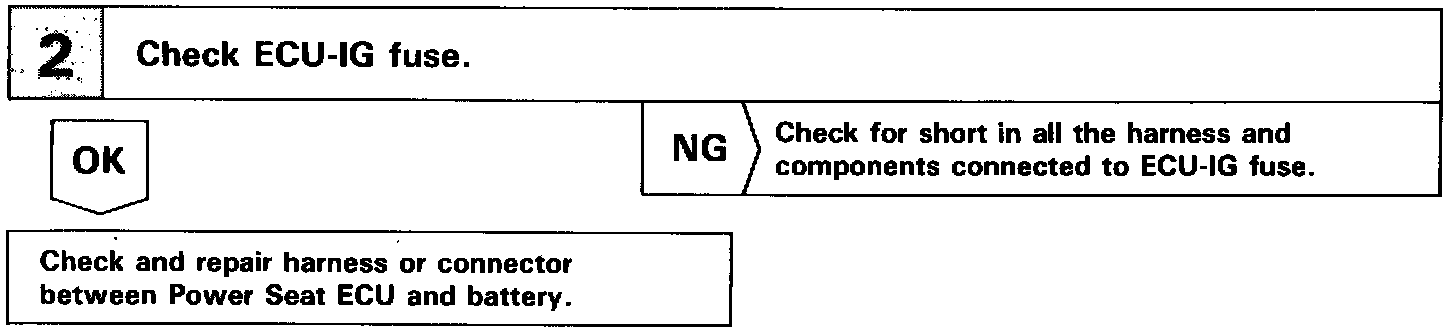

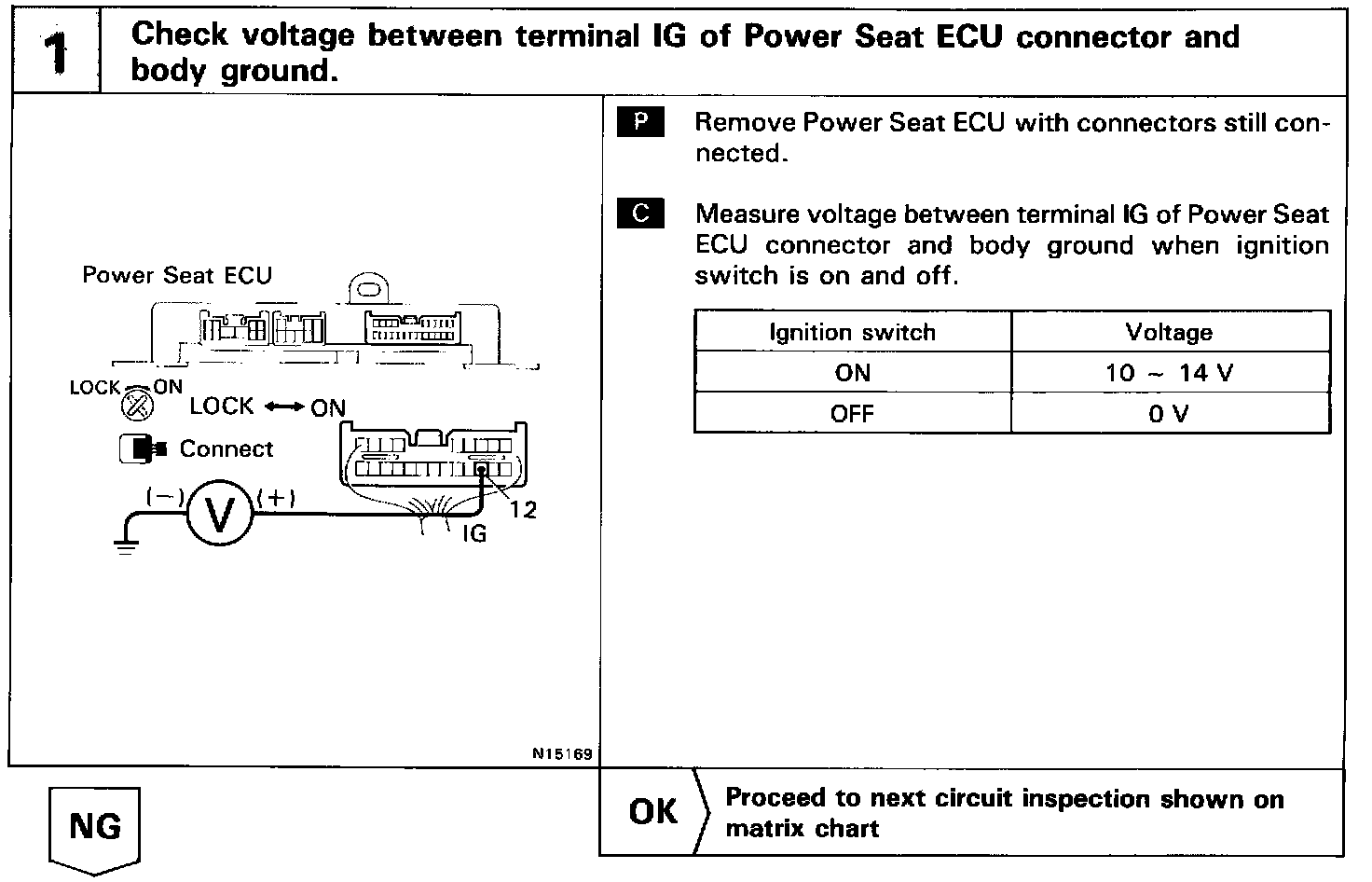

INSPECTION PROCEDURE
